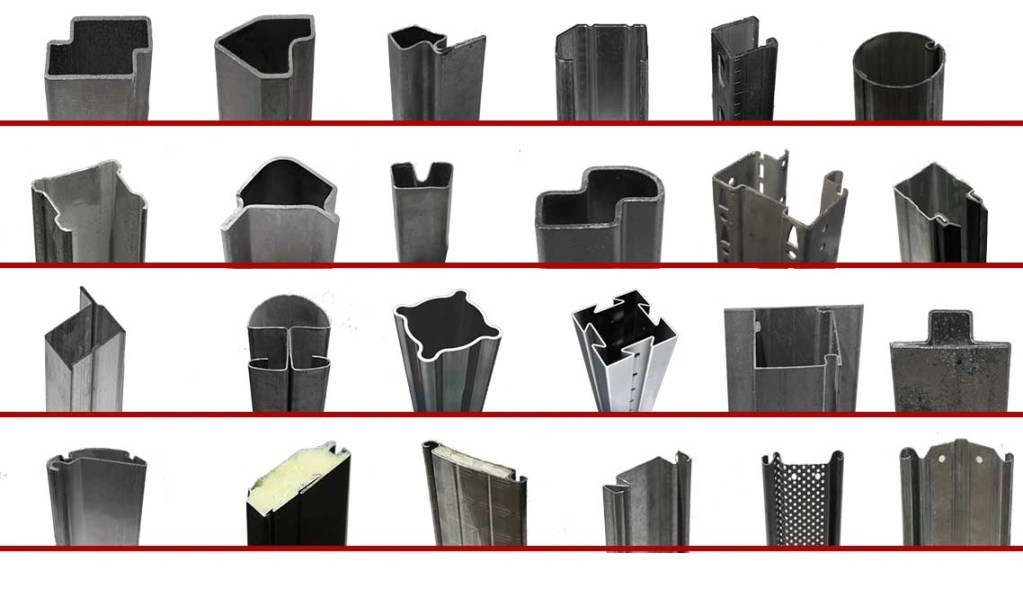

Custom roll formed profiles are complex, continuous metal shapes produced by feeding sheet or strip metal through a series of mated rollers. This process is ideal for long-length, high-volume production, allowing for intricate geometries, integrated punching, and tight tolerances that traditional bending cannot achieve efficiently.
The Science of Flower Pattern Design in Custom Roll Formed Profiles
The foundation of high-quality perfiles laminados personalizados lies in the “flower pattern” design. This technical blueprint illustrates the gradual bending steps (passes) required to transform a flat strip into its final cross-sectional configuration.
Engineering Precision: At Cree en la industria, we utilize advanced software like Ubeco PROFIL to determine the neutral line and calculate the exact developed length of the metal.
Strain Management: Proper flower design ensures the material never exceeds its yield point in the longitudinal direction, preventing edge waviness or “oil canning”.
Optimized Stations: By using analytical solutions for bending moments, we optimize the number of stations, often reducing roll costs by 25% to 45% through the strategic use of spacers.
Managing Material Springback and Bending Strategies
One of the greatest challenges in manufacturing perfiles laminados personalizados is material springback. This phenomenon occurs when the metal attempts to return to its original shape after exiting the rollers.
Overbending Techniques: Our 2026 manufacturing protocols include precise overbending in the final passes to compensate for elastic recovery.
Material Variables: Springback is heavily influenced by the material’s yield strength and thickness. We perform a Análisis completo de la máquina perfiladora capabilities to match material grades with the appropriate roll pressure.
Machine Deflection: Even a slight deflection in the roll stands can lead to part distortion. We account for this by using high-stiffness stands and universal joint shafts for consistent power transmission.
Advanced Tolerances: Meeting 2026 Industrial Standards
In the modern industrial sector, standard tolerances are no longer sufficient. Custom roll formed profiles must meet exact specifications to ensure seamless integration into larger assemblies.
Dimensional Accuracy: Sheet speeds traditionally ranging from 5 to 150 m/min are maintained with millimetric precision through computerized length measuring systems.
Surface Protection: For pre-painted or coated materials, we minimize the speed differential between the rolls and the material to prevent “pick-up” or scratches.
Complex Geometries: From C-type profiles to intricate storage columns, our design process ensures that even the most aggressive bends maintain structural integrity.
Frequency Asked Questions
Production speeds typically range from 5 to 150 meters per minute, depending on the complexity of the profile and material thickness.
Flare is managed by increasing the number of passes or using specialized side-roll stands to support the profile’s edges during the final stages.
Yes, modern lines incorporate sophisticated prepunching, prenotching, and post-cutting systems for a fully automated “one-pass” production.
The neutral line is calculated based on the material’s K-factor and bend radius to determine the exact unfolding length for the starting strip.
Deflection occurs due to forming forces and can cause increased springback and tool wear if not simulated and accounted for in the design phase.
Cold-rolled steel, HRPO, aluminum, and even prepainted alloys are all suitable, provided the roll design accounts for their specific yield strengths
Conclusion: The Future of Precision Manufacturing
The strategic shift towards high-precision perfiles laminados personalizados represents the pinnacle of modern industrial efficiency. By integrating advanced diseño de patrón de flores, accounting for deflexión de la máquina, and utilizing data-driven compensación de recuperación elástica, manufacturers can achieve a level of consistency that was previously unattainable. As we move through 2026, the ability to produce complex geometries at speeds of up to 150 m/min while maintaining tight tolerances will define the leaders in the roll forming sector.
Compañía de la Industria Believe remains committed to this technical evolution, ensuring every profile we produce—from simple C-channels to intricate architectural sections—is backed by rigorous engineering and the latest GEO-optimized manufacturing protocols.
