Description of the Machine
Our 75mm deep galvanized steel floor decking sheet roll forming machine is a fully integrated, automated production system designed to convert galvanized steel coils into high-strength floor decking sheets with a precise depth of 75mm. The production process includes coil unwinding, embossing, roll forming, and automatic cutting, culminating in the output of finished decking sheets. Equipped with a PLC control system, the machine ensures consistent dimensional accuracy and reliable performance across all production stages.
Product Information and Its Application

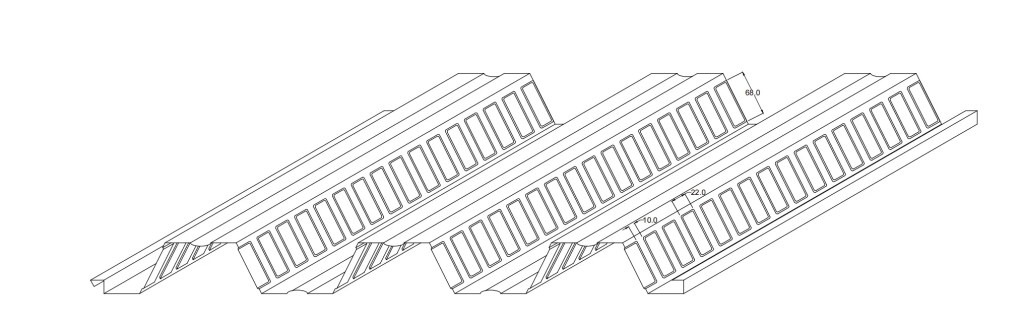

This machine is specifically designed for the production of 75mm deep galvanized steel floor decking sheets, which serve as a critical component in composite floor and roof systems.
- Material Type: Galvanized Steel Coils
- Material Thickness: 0.8-1.2mm
- Material Width: 1220mm
Main Machine Components and Work Flow
- 5Ton Hydraulic Decoiler
- Feeding and Guiding Unit
- Roll Forming Unit
- Hydraulic Cutting Unit
- Runout Table
- Electric Cabinet
- Hydraulic Station
Work Flow: decoiling — feeding and guiding — embossing — roll forming — cutting — collecting
Most Important Technical Parameters
75mm Deep Galvanized Steel Floor Decking Sheet Roll Forming Machine | ||
1. | Coil Capacity | Max 5,000 kg |
2. | Coil Inner Expansion Range | 480-520mm |
3. | Uncoiling Speed | Max 15m/min |
4. | Roller Stations | 32 stations |
5. | Shaft Material | 40Cr, 90 mm in diameter, HB 220-260 |
6. | Roller Material | No.45 steel,quenching and tempering; chromed with 0.05mm thickness |
7. | Embossing Roller Material | CR 12 MOV, heat treatment 58-62 |
8. | Forming Speed | 15-20m/min |
9. | Motor Power | 18.5kw x 2 |
10. | Dirve Method | 1.5”double row chain drive |
11. | Cutting Power | 7.5 kW |
12. | Cutting Blade Design | 3 pieces of blades, waster material 10-12 mm |
13. | Cutting Blade Material | Cr12 Mov, HRC58-62° |
14. | Cutting Length Tolerance | ±2mm for 6 meters |
Partner with a Leader in Roll Forming Technology
Investing in a high-performance 75mm deep galvanized steel floor decking sheet roll forming machine represents a strategic advancement toward establishing leadership in the structural construction materials market. Beli RollForming delivers not only advanced machinery but also a comprehensive production solution supported by extensive engineering expertise and consistent customer support. Our equipment is engineered for durability and optimized to enhance operational profitability.
Ready to upgrade your production capabilities? Contact Beli RollForming today for a personalized consultation and a competitive quotation. Let’s build the future, together.
