Steel Floor Deck Roll Forming Machine

Price :

$50,000.00

Description

Steel Floor Deck Roll Forming Machine

Steel Floor Deck Roll Forming Machine is designed and manufactured for producing steel floor decking for steel buildings.

PROFILE DRAWING



composite floor deck
Highly strong re-entrant composite floor deck

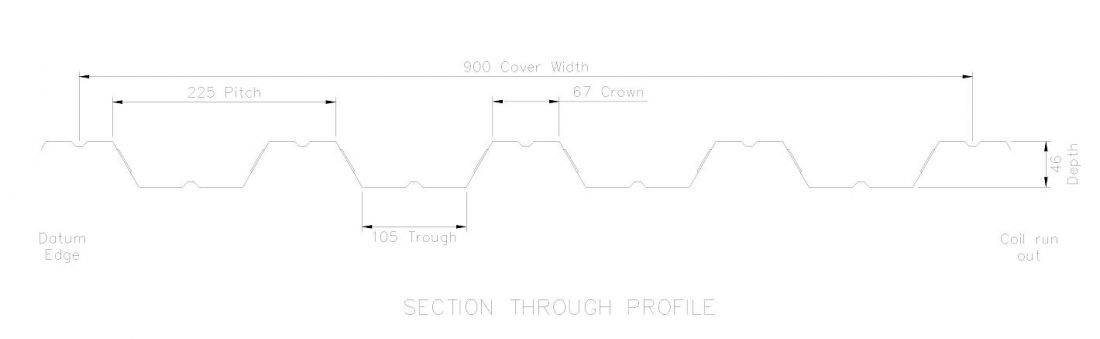

Classic floor deck
Normal design Steel Floor Deck is invented in 1970s, and also widely used now
deep floor deck
deep profile shape provides a very efficient metal deck and composite slab, with a low usage of concrete. Slimflor systems have wider lower flange steel beams that allow the deck to land on the bottom flange.
metal decking floor
New design floor deck exceptionally resistant to compressive buckling resulting in superior span capability compared to traditional decks.

Material Information

  • Coil Material: Galvanizedcoil, 235-500MPA
  • Coil Material Thickness: 0.6-1.5MM

Process Of The Production Line

Metal Floor Deck Roll Forming Machine Supplier
Steel Floor Deck Roll Forming Machine process is Uncoiling– Roll Forming —Cutting –collecting

Parameters For The Required Roll Forming Machine Line

Hydraulic  Uncoiler with Coil Car

  • Electric uncoiling, hydraulic loosen and tension
  • Maximum capacity:11 Ton
  • D:508mmO.D:1350mm
  • Maximum width:1350mm,
  • Hydraulic Power: 5.5KW, Uncoiling motor power:5.5KW
Automatic Hydraulic Uncoiler
Hydraulic expansion and electric uncoiling

 Roll Forming Machine

  • Adopt H STEEL and Steel Plate Welded, side wall thickness: 25mm, 450mm H steel
  • Rollers Station: 30-36 , with several auxiliary rollers
  • Diameter of Shaft: 110mm
  • Material Of Shaft: 45# Steel With Heat Treatment HRC50~55
  • Material Of Roller: GCR 15(ASRM a295:1998) Steel With Quenching Treatment and Chroming of 0.05mm Thickness
  • Motor Power: 22KW*2
  • Power Transition: by Gears&Chains( 2 inch single)
  • Speed Control: by Frequency Inverter
  • Speed of the machine: 10-15m/min
Floor Deck Roll Forming Machine
Floor Deck Roll Forming Mill, Steel Plate structure

Hydraulic Cutting Device

  • Material Of Cutting Mold: Cr12 Steel With Quenched Treatment HRC 60-62
  • Cutting Length And Quantity: Clients Can Set The Length and Quantity on the PLC Touch Screen
  • Hydraulic Station Power: 5KW
  • Tolerance Of Cutting Length: +/-2mm

Control System

  • The worker input the length and quantity of the product through touch screen, total 20 groups, the touch screen will show the working status of the machine,
  • PLC Control Box: 700mmx1000mmx300mm
  • Computer Control System: Mitsubishi PLC
  • Frequency inverter: Mitsubishi
  • Encoder: Omron Brand
  • Limit switch: Omron
  • Controlled System Power: Overload Protection
  • Pressure Of Hydraulic Station: ≧12Mpa
  • Current: 415 V Direct Current, 50Hz, 3 Phase

Collection Table

Collect the product after cutting, Angle Steel Welded, rollers chromed

Believe Industry Company have series types of Steel Floor Deck roll forming machine, and we also accept customized profile. View more.



Additional information

Weight 10000 kg
Dimensions 16000 × 1500 × 1500 mm
