Metal Wall Panel Roll Forming Machine

Metal Wall Panel Roll Forming Machine is for producing wall panels automatically. The Machine can cutoff the wall panel profiles into desire length.

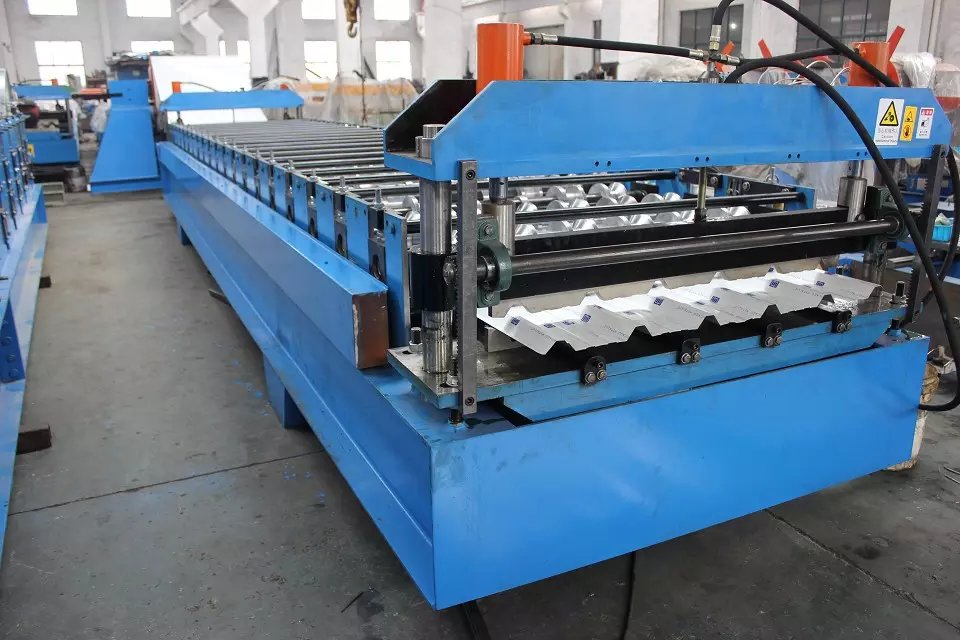

Metal Wall Panel Roll Forming Machine

Metal Wall Panel

As we know, traditional wall panels is made by brick, which is composed of clay-bearing soil, sand, and lime, or concrete materials. And nowadays, metal wall panel are widely used in Stadium, convention center, exhibition hall, railway station, high grade villa, airport, theater and many other architectural fields.

Metal Wall Panel(Roofing Sheets) is roll formed by common metal material with different sections. And also composite with heat insulation, water proof, sound absorption for a wide use. The material can be Galvanized steel, Pre-painted Galvanized Steel, Aluminum, Stainless Steel. The thickness is 0.2-0.8mm as usual. Believe Industry Company have different types of wall panel roll forming machines for different profiles. And we also accept customized profiles.

Metal Wall Panel Classification

Usage: Inner wall panel, outer wall panel, decorative wall panel
Installation method: Self-lock, horizontal, Vertical.
Function: Keep warm, beauty, etc
Material: aluminium alloy, PPGI, GI, Copper, etc

Believe Industry Company a full range roll forming machine for Metal Wall Panels, such as: Mini Orb Corrugated Sheets Roll Forming Machine. Clip Lock Roll Forming Machine, Decorative Wall Panel Roll Forming Machine, etc.

Metal Wall Panel Roll Forming Machine Components and Specifications.

Manual Uncoiler

Coil Inner Diameter: 460-520mm
Coil Outer Diameter: max 1300mm
Loading Weight: 5T Maximum
Manual Loosen and Tension, Passive Uncoiling.

Wall Panel Roll Forming Mill

Main Structure of the Machine: 350 H Steel, with 25mm steel plate welded
Roll Forming Stand Number:18 groups
Forming Speed: Approx. 15m/min
Diameter of Shaft: 80 mm
Material of Shaft: 45# steel with surface heat treatment
Material of Roller: ASTM 1045 steel with quenching treatment HRC58-60 and chroming of 0.05mm thickness
Transmission: Chain and the first and last 2 stands use gear to drive both upper and bottom shafts
MotorPower:7,5 kW
All the driven part of wall sheet roll forming machine are covered with safety protection.

Hidrolik Kesme Cihazı

guardrail machine controlled cabinet — The worker can set all the data of length, quantity, holes position on the touch screen which will control the machine

Type: Stop hydraulic cutting
Material of Cutting Mold:Cr12 Steel with quenched treatment HRC 60-62, 2 groups
Cutting Length and Quantity: Clients can set the length and quantity on the PLC touch screen
Hydraulic Station Power: 5.5KW
