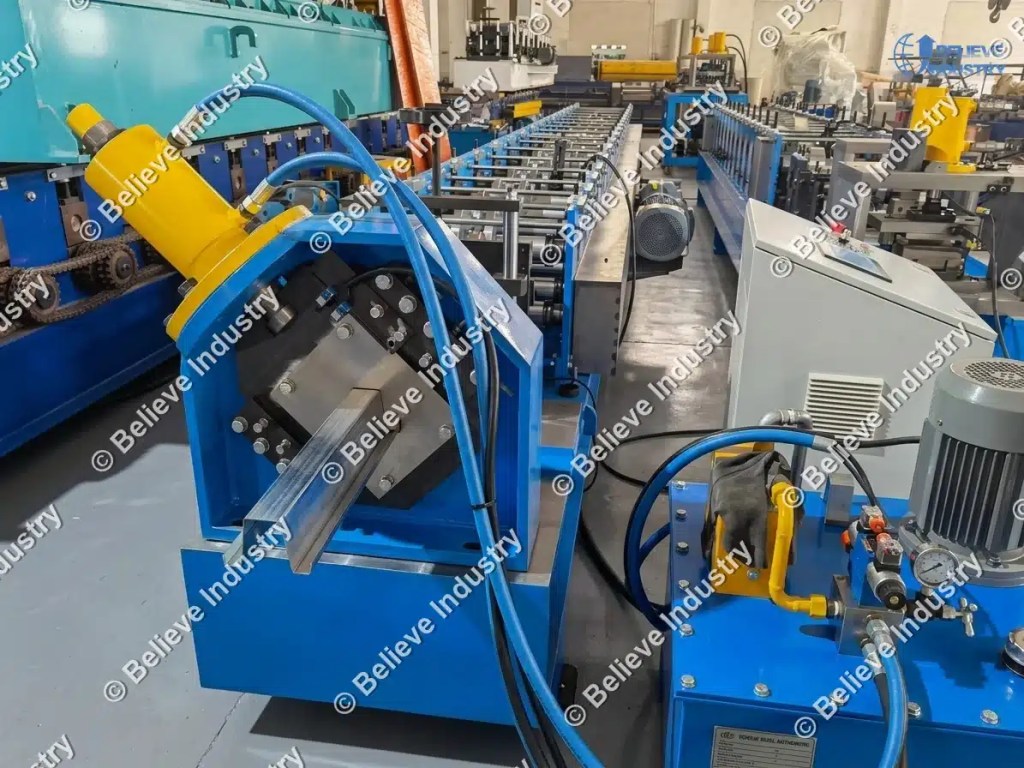

Mesin Pembentuk Gulungan Top Hat: Panduan Pembeli 2026

What Is a Top Hat Roll Forming Machine?

A top hat roll forming machine is a roll forming line that bends flat steel strip into a hat-shaped cross section: a wide flat top, two 90 degree legs, and two out-turned flanges at the base. The profile looks like a top hat seen from the side, which is where the name comes from. A standard line runs 0.4 to 3.0 mm strip, forms the section through 14 to 22 roll stands, and produces 8 to 30 meters of profile per minute.

Top hat roll forming machine definition: a continuous cold roll forming line that converts coiled steel into hat channel or top hat profile in a single pass, with optional in-line punching and a flying cutoff that keeps the line running at full speed.

Buyers call the same machine by several names. Drywall contractors say furring channel machine. Automotive suppliers say hat section roll former. Warehouse builders say top hat purlin machine. The tooling differs, but the forming principle is identical, and it is the same principle explained in cara kerja mesin pembentuk gulungan: progressive bending through paired rolls, a little angle per station, no heat.

The Top Hat Profile: Anatomy and Standard Sizes

Before you price a machine, freeze the drawing. The profile drives everything: number of stands, roll material, punching pattern, and cutoff type.

A top hat profile has five zones: the flat crown, two vertical webs, two horizontal base flanges, plus four bend radii connecting them. Each bend needs its own angle progression across several stands, which is why a top hat section takes more stands than a simple C channel of the same height. The relationship between profile geometry and stand count is covered in detail in desain mesin pembentuk gulungan.

Common top hat and hat channel sizes we build lines for:

Two numbers on that table matter more than the rest. Web height decides strip width and forming difficulty. Steel thickness decides drive power and roll stand rigidity. Get those two wrong and the machine never runs right, no matter what the salesperson promised. North American furring channel dimensions follow the SSMA product technical guides, so check your drawings against those tables before committing to tooling. The proses pembentukan gulungan page explains the strain math behind deep sections if you want the full picture.

How a Top Hat Roll Forming Machine Forms the Section

The strip enters flat and leaves as a top hat. Between those two points, the machine works through a fixed sequence.

Most lines form the crown first, then bend the webs down in steps of 10 to 15 degrees per stand, and finish with the base flanges turned outward in the last four to six stands. Forming the flanges last keeps the section stable through the mill. A 50 mm deep top hat profile typically needs 16 to 18 stands; the shallow 15 mm furring channel runs fine on 12 to 14.

A complete top hat roll forming machine line has seven sections:

1. Decoiler holding 3 to 8 ton coils, hydraulic expansion mandrel.
2. Leveler with five to nine rolls to flatten coil set.
3. Pre-punching press for holes and slots before forming.
4. Roll forming mill with 12 to 22 stands.
5. Guide and correction units between stand groups.
6. Flying cutoff, saw or shear, cutting to length at full line speed.
7. Runout table and stacker.

The punching position is a real decision. Pre-punching puts holes in the flat strip, which is accurate and cheap, but the holes move slightly as the section forms. Post-punching after the mill keeps hole position exact on the formed hat channel, at the cost of a slower line. Most furring channel buyers choose pre-punching; automotive hat section buyers almost always post-punch or use laser stations. Trade coverage of profile punching on Sang Fabrikator repeats the same ordering of concerns: hole tolerance first, speed second.

Machine Configuration and Typical Specs

A workable spec sheet for a mid-range top hat roll forming machine looks like this:

Roll material deserves attention. Cheap lines ship with soft rolls that score after a few hundred tons of G550 galvanized. Insist on hardened GCr15 or D2 tooling rolls and ask for the hardness certificate. The way grooves and roll surface detail change forming quality is worth reading in grooves and roll forming machine design before you sign anything.

Where Top Hat Profiles Actually Get Used

The top hat shape shows up in more industries than most buyers expect. Knowing the end use tells you which machine class to buy.

Drywall and partition framing is the volume market. Hat channel, or furring channel, clips over studs and joists to create a level plane for board. Lines run 0.5 mm galvanized at high speed with low tooling stress. The full application landscape is in our mesin pembentuk gulungan partisi dinding kering ringkasan.

Facade sub-framing is the corrosion-sensitive market. Rainscreen systems hang on hat channel over insulation, so the steel is heavier galvanized or Z275 minimum, and hole patterns follow each cladding project. These buyers need flexible punching, fast pattern change.

Automotive is the precision market. Body reinforcement hat sections run 1.0 to 3.0 mm HSLA and dual phase steels, with tight radii and tolerance bands under 0.5 mm. Servo feeding, post-forming cutting, and in-line hole checking are standard. Our mesin pembentuk rol otomotif page covers the class in detail.

Racking and mezzanine framing is the strength market. Deep top hat sections work as joists and upright supports under load, and buyers push thickness toward 2.0 mm and above. If your target is platform framing, read the panduan pembentukan gulungan lantai mezanin first, since joist and top hat sections often share one line with quick tooling change.

Materials: What You Feed the Machine Matters

Most top hat roll forming machine complaints trace back to material, not the machine. A mesin pembentuk rol khusus is designed around one coil spec, and deviation shows up fast.

Three rules hold across applications. Match yield strength to the design, because G550 behaves nothing like G300 in the rolls. Match thickness to the tooling gap, because a 0.05 mm over-thickness coil can wave the flanges. Match coating to the environment, because Z120 furring channel in a coastal facade will rust out the building owner’s warranty. Galvanized grades should be ordered against ASTM A653 or EN 10346, not against a supplier’s verbal promise.

The full interaction between coil properties and forming behavior is laid out in pengaruh material terhadap desain mesin pembentuk rol. Read it before your first coil order, not after your first scrap report.

For comparison with simpler profiles, the C channel roll forming machine runs fewer stands on the same steel. You pay for the extra stands on a top hat line, and you get a stiffer section per kilogram of steel. That stiffness-to-weight ratio is the entire reason top hat profile exists.

What a Top Hat Roll Forming Machine Costs

Price depends on four things: thickness range, punching complexity, cutoff type, and automation level. Indicative 2026 ranges for lines built in China and exported worldwide:

The full cost analysis method, including freight, duty, spares, and commissioning, is in harga mesin pembentuk rol. One warning from commissioning experience: the cheapest quote on the list usually omits the hardened rolls or the flying cutoff. Add those back and the bargain disappears.

12-Point Buying Checklist

1. Frozen profile drawings with tolerances, signed by the end customer.
2. Coil spec range in writing: grade, thickness, width, coating.
3. Stand count justified by a flower pattern from the supplier.
4. Roll material and hardness stated in the contract.
5. Punching position and tolerance for every hole pattern.
6. Cutoff type, length tolerance at maximum speed.
7. Line speed verified at your thickness, not their thinnest sample.
8. Control system brand and recipe storage count.
9. Spare rolls and wear parts priced up front.
10. Commissioning and operator training included on site.
11. Trial material from your actual coil supplier before shipment.
12. Reference lines running the same profile in your region.

Number 11 is the one buyers skip and regret. A top hat roll forming machine tuned on the supplier’s soft test coil will misbehave on your G550 within a shift. Insist on a pre-shipment trial with your steel.
