Brief Introduction
The Trapezoidal Ribbed Spandeck Roof and Wall Cladding Roll Forming Machine is designed for the production of metal roof and wall panels featuring trapezoidal ribs. Controlled by a PLC system, the machine is user-friendly; operators need only input the required quantity and length via the touch screen interface, after which the machine automatically initiates production and stops upon completion of the programmed task.
Key Machine Components and Work Process
- 5Ton Hydraulic Decoiler
- Plastic Film Coating Device
- Feeding Guide
- Roll Forming Unit
- Cutting Device
- Collecting Table

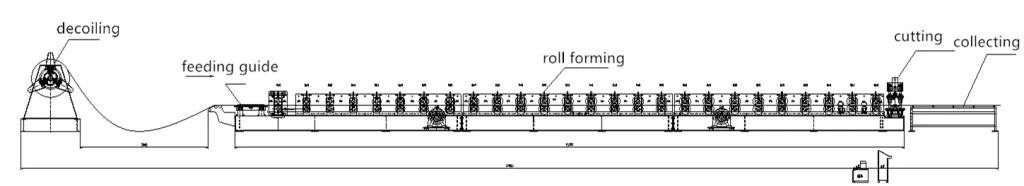

Work Process: decoiling — film coating — feeding and guiding — roll forming — cutting — collecting
Technical Specifications
The table below presents the standard specifications of our Spandeck roll forming machine. Customization options are available to accommodate specific production requirements.
Trapezoidal Ribbed Spandeck Roof and Wall Cladding Roll Forming Machine | ||
1. | Coil Capacity | Max 5,000 kg |
2. | Coil Inner Expansion Range | 480-520mm |
3. | Uncoiling Speed | Max 15m/min |
4. | Roller Stations | 20 stations |
5. | Shaft Material | 40Cr, 75 mm in diameter, HB 220-260 |
6. | Roller Material | No.45 steel,quenching and tempering; chromed with 0.05mm thickness |
7. | Embossing Roller Material | CR 12 MOV, heat treatment 58-62 |
8. | Forming Speed | 15-20m/min |
9. | Motor Power | 7.5KW |
10. | Dirve Method | 1.5”double row chain drive |
11. | Cutting Power | 5.5 kW |
12. | Cutting Blade Material | Cr12 Mov, HRC58-62° |
13. | Cutting Length Tolerance | ±2mm for 6 meters |
Why Choose Beli RollForming’s Spandeck Machine?
Investing in our Trapezoidal Ribbed Spandeck Roof and Wall Cladding Roll Forming Machine represents a strategic commitment to the future growth and sustainability of your manufacturing operations. You will achieve a competitive advantage through enhanced product quality, high production efficiency, and substantial reductions in labor and material costs.
Ready to enhance your production line? Explore our complete range of high-performance roll forming machines or contact our expert team today to schedule a personalized consultation and obtain a detailed quotation.
