Taiwan Design Metal Roof Roll Forming Machine

Taiwan design Metal Roof Roll Forming Machine is for manufacturing highly quality metal roofs. Believe Industry Company have over 15 years of experience of manufacturing and exporting roll forming machines to all over the world.

•

•

•

Metal Roof Roll Forming Machine

Metal Roof Machine Components

Taiwan Design Roll Forming Machine is customized as customer really need, including our most sincere recommendations. To enlarge the production capacity and save the labor cost. The roll forming machine is main consist of below items:

1. 5 Ton Hydraulic Single Mandrel Uncoiler
2. Feeding and Guiding Device
3. Rulo Şekillendirme Değirmeni
4. Hidrolik Kesme Cihazı
5. Auto Stacker
6. Hidrolik İstasyon
7. Controlled Box.

Metal Roof Roll Forming Machine Specifications

Single Arm Mandrel Uncoiler

The uncoiler is the main part of metal roof roll forming machine line. Which is for loading and uncoiler the coils and then feed into the main roll forming mill.

1. Sizes: Approx 2.5m*1.3m*1.8m
2. Inner Diameter Range: 480-520mm as standard, Max 610mm.
3. Outer Diameter: 1500mm, Max 2000mm
4. Coil Width: Max 1350mm
5. Loading Capacity: 5 Ton
6. Uncoiler Motor Power: 5.5KW
7. Hydraulic Expand Motor Power: 4 KW

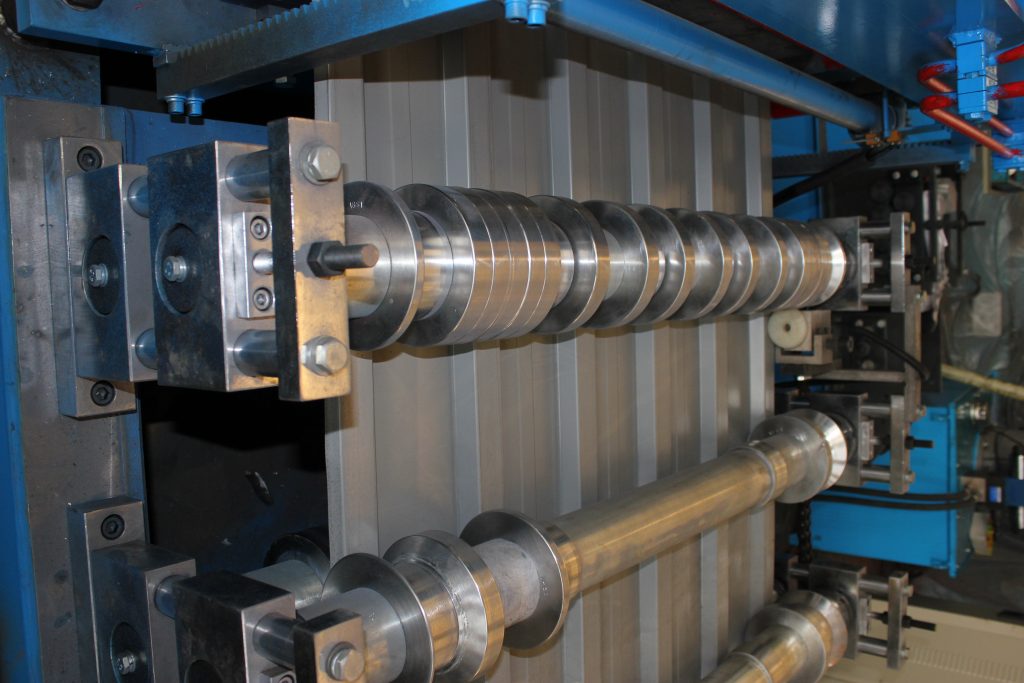

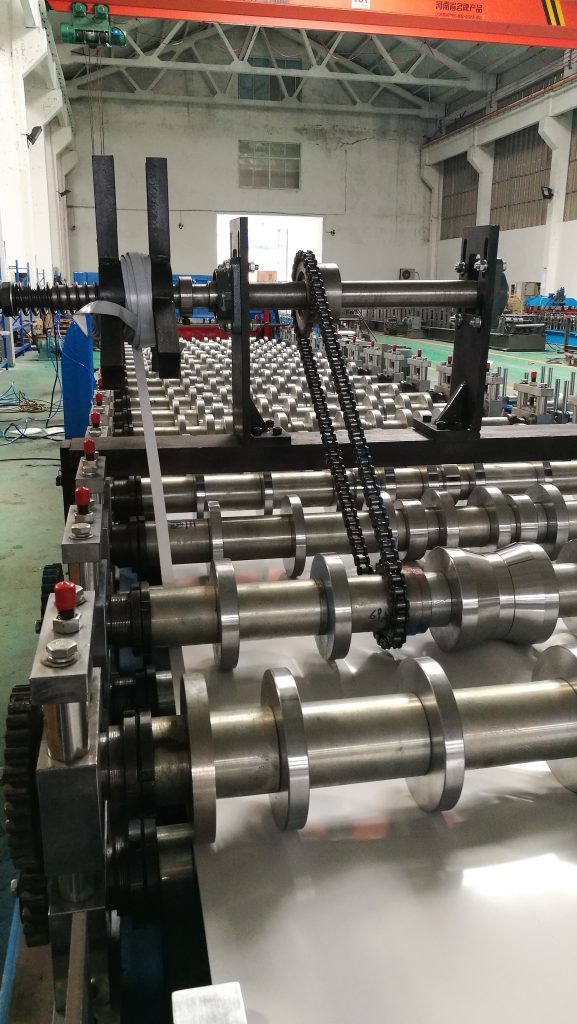

Roll Forming Machine Mill

The metal roof machine mill is for roll forming the steel sheets/coils into sections. which is include the base, roll forming stands, rollers.

1. Suitable Thickness: 0.2-0.8mm
2. Forming Speed: 15-20m/min, exclude cutting time
3. Roller Shaft: 75mm Diameter, ASTM 1045 with precision polishing and high frequency.
4. Roll Forming Stands: Chromed pillar stands, quality deisgn.
5. Roller Material: ASTM 1045, heat treatment and HRC chromed.
6. Motor Power: 7.5KW

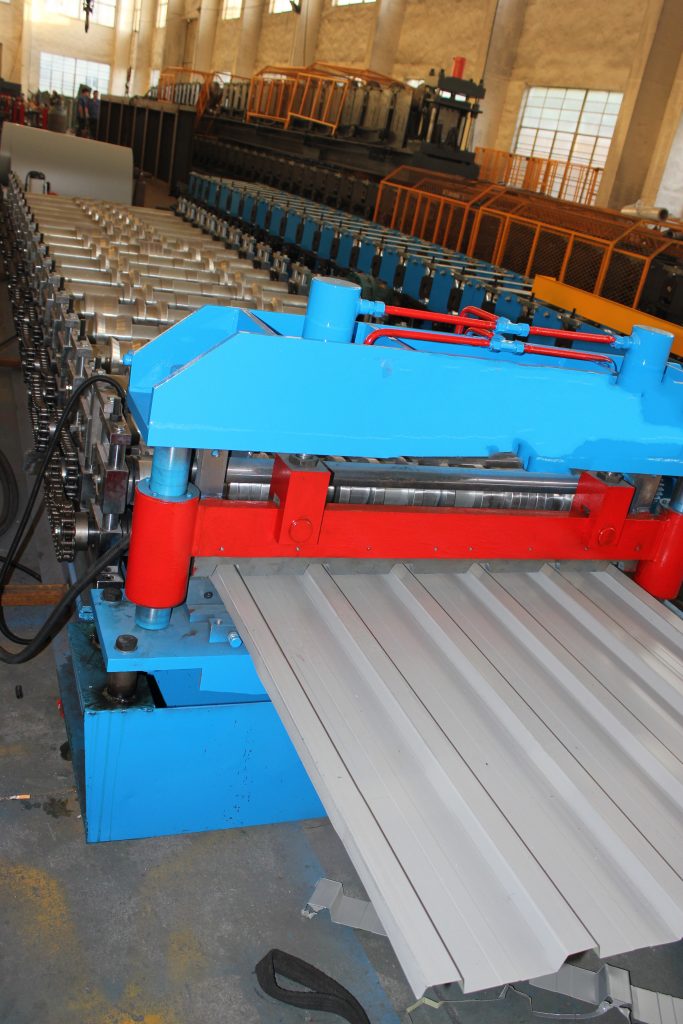

Hydraulic Cutoff Unit

Hydraulic Cutoff Unit is for cutting the roll formed roofs into desired length.

1. Controlled By PLC
2. Cutter Blade Material: CR12, quenched
3. Gantry design structure.

Controlled Box

The operate can set all the datas, such as length, quantity on the touch screen to control the metal roof roll forming machine. All the electric parts are chosen world famous brand

1. Siemens or Panasonic PLC
2. Yaskawa Inverter
3. Omron Kodlayıcı
4. MCGS or Siemens Touch Screen
5. Schneider connector.

Believe Industry Company have a full range of roll forming machines, and the different designs of machines for you. Bize Ulaşın for more information.
