Walk Board Scaffold Plank Roll Forming Machine

A Walk Board Scaffold Plank Roll Forming Machine is a specialized industrial production line designed to transform flat metal coils (typically galvanized steel) into high-strength scaffolding planks.

Beli Rollforming'in machines are essential for manufacturing the “walk boards” used in construction, providing a stable and safe platform for workers.

What's A Walk Board Scaffold Plank ？

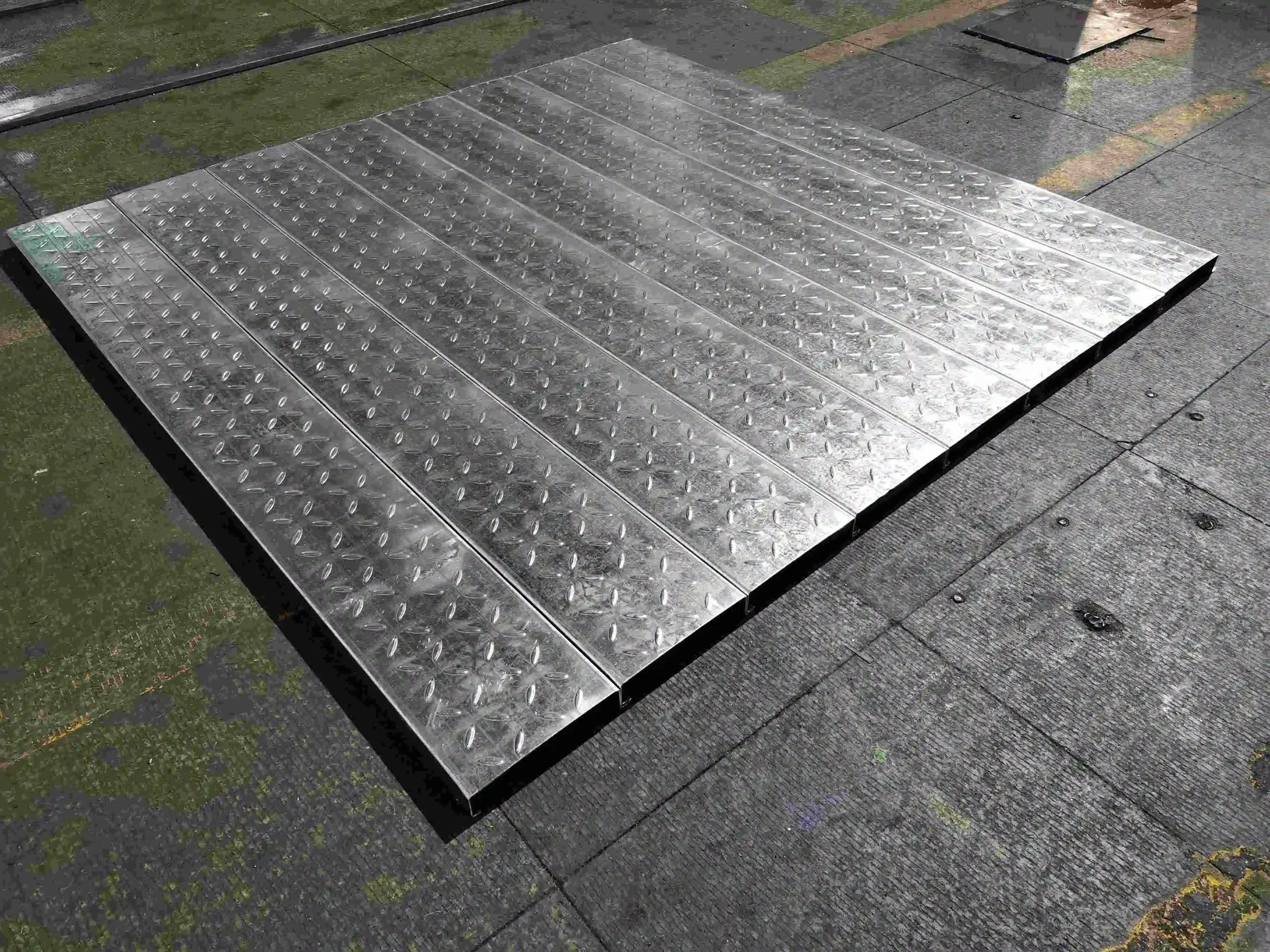

A Walk Board Scaffold Plank (often simply called a “scaffold board” or “metal deck”) is the horizontal structural component that provides a safe, stable standing surface for workers on a scaffolding system.

While traditional planks were made of wood, modern industrial construction almost exclusively uses metal walk boards produced by roll-forming machines because they are lighter, stronger, and fire-resistant.sanffold planks

A(mm) B(mm) HOLES SIZES(mm)
210 45 43/50
225 38 43/50
240 45 43/50
250 50 43/50
300 50 43/50
420 45 43/50
480 45 43/50
500 50 43/50
600 50 43/50

Key Components & Process of Walk Board Scaffold Plank Roll Forming Machine

  • Açıcı: Holds and feeds the metal coil into the machine.

  • Punching System: A high-precision hydraulic unit that creates the anti-slip holes and drainage patterns essential for safety.

  • Roll Forming Mill: A series of precision-engineered rollers that gradually bend the flat metal into the specific “C” or “U” shape profile with reinforced ribs.

  • Cutting Unit: A hydraulic “track-cutting” or “stop-to-cut” system that shears the planks to specific lengths (e.g., 2m, 3m, or 4m).

  • PLC Control System: A digital interface (usually a touchscreen) that allows operators to set dimensions, hole patterns, and production quantities.

Walk Board Scaffold Plank Roll Forming Machine Working Process

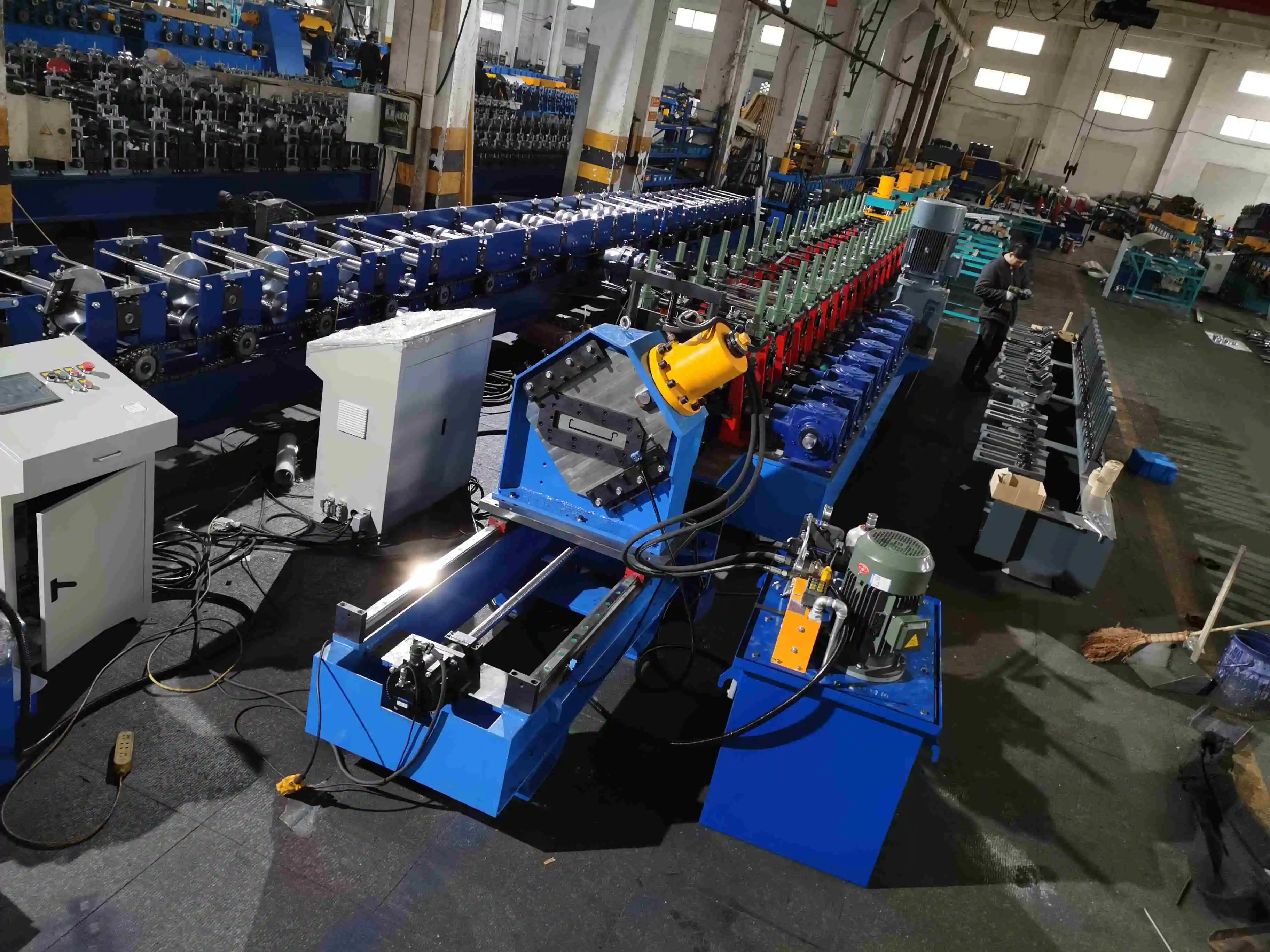

layout of scaffold plank roll forming machine
The work process is : Uncoiling-- Leveling-- Servo Feeding--Punching-- Roll Forming  Straightening-- Cutting.

Technical Parameters

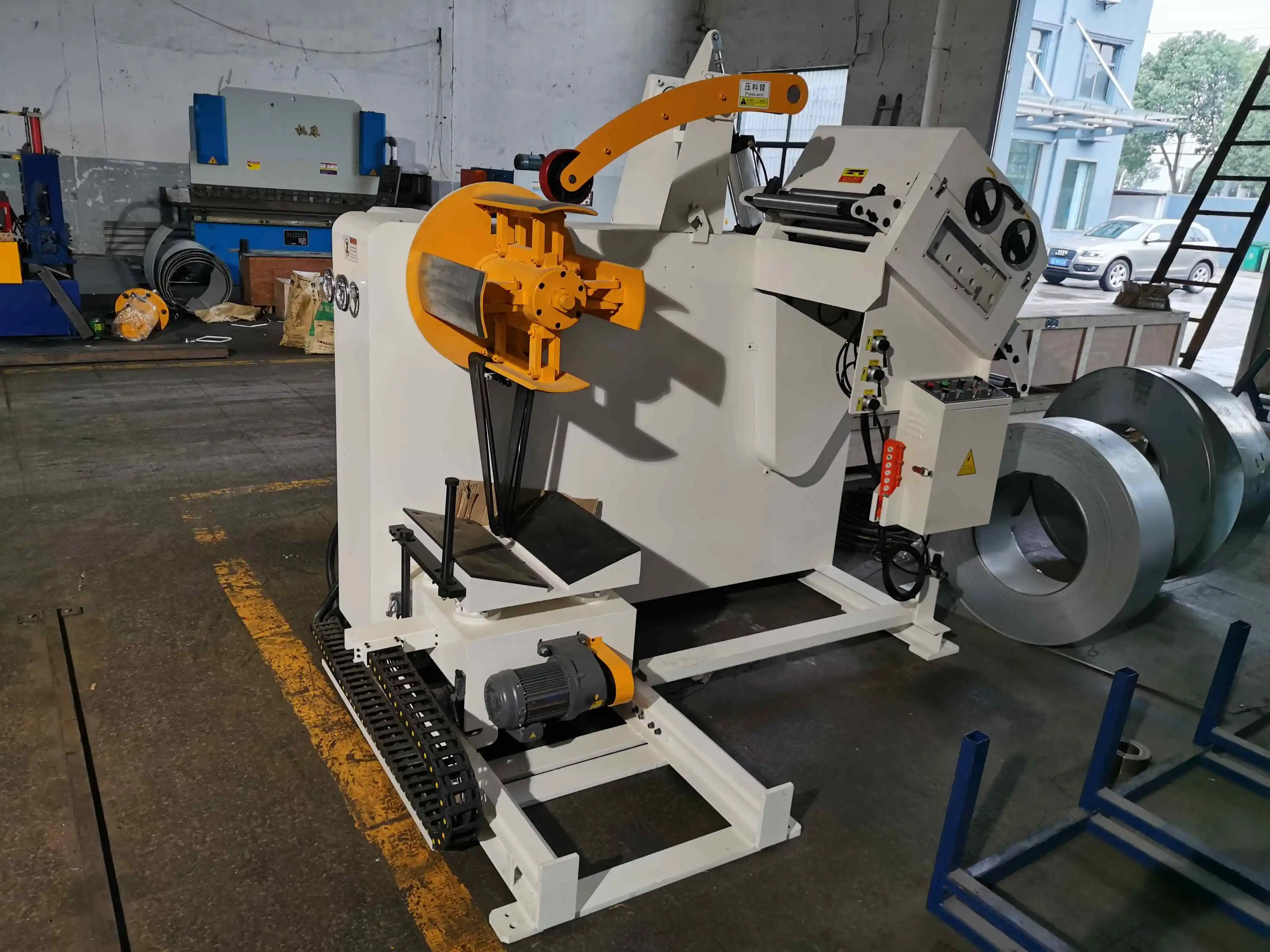

3 Ton Electric Uncoiler for Scaffold Plank Machine

  1. Maximum Loading Width: 600mm
  2. Malzeme Kalınlığı: 1,0-2,0 mm
  3. Inner Diameter: 480-520mm
  4. Loading Capacity: 3 Ton Max
  5. Manual loosen and tension, Passive uncoiling

Leveler Machine

  1. Lever Rollers: Total 9, upper 4 and bottom 5.
  2. Equipped with feeder and guider
  3. Motor Gücü: 5,5 kW
  4. Adopt limit switch to ensure the speed will be synchronized with the punch machine.

Feeder and Punch Press

  1. Servo Feeder Type: NCF1250
  2. Servo Motor Power: 3KW
  3. Punch Press Capacity: 220 Ton

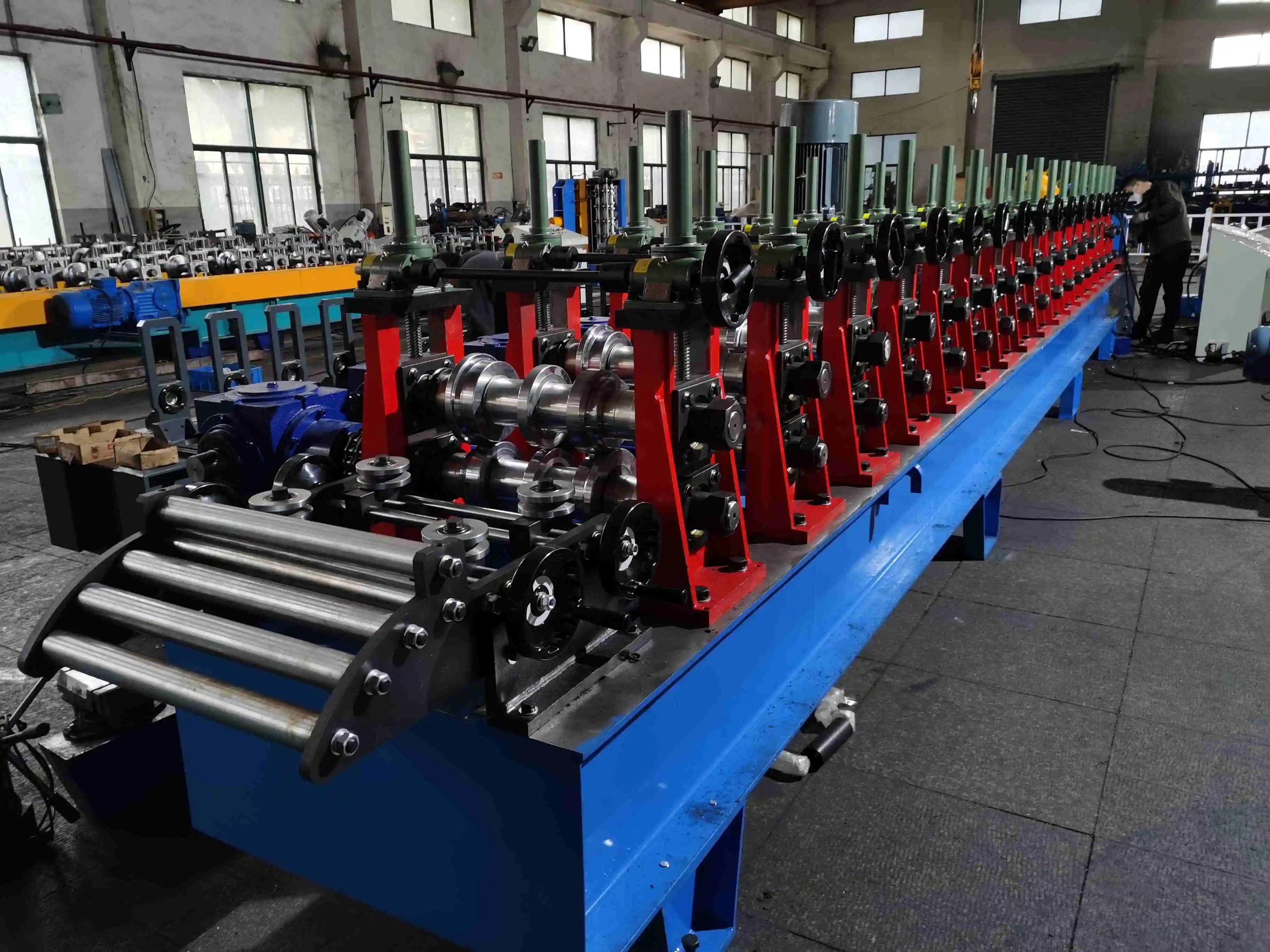

Rulo Şekillendirme Makinesi

  1. Welded H steel as the main base, iron cast steel pillar as the roll forming stands.
  2. Transmission: Gear box and universal joint.
  3. Roll Forming Stands: 28
  4. Rollers Material: GCR15, quenched and tempered.
  5. Shaft Material: ASTM 1045, 80mm Diameter
  6. Main Motor Power: 37 KW
  7. Scaffold Plank Machine Speed: 15m/min

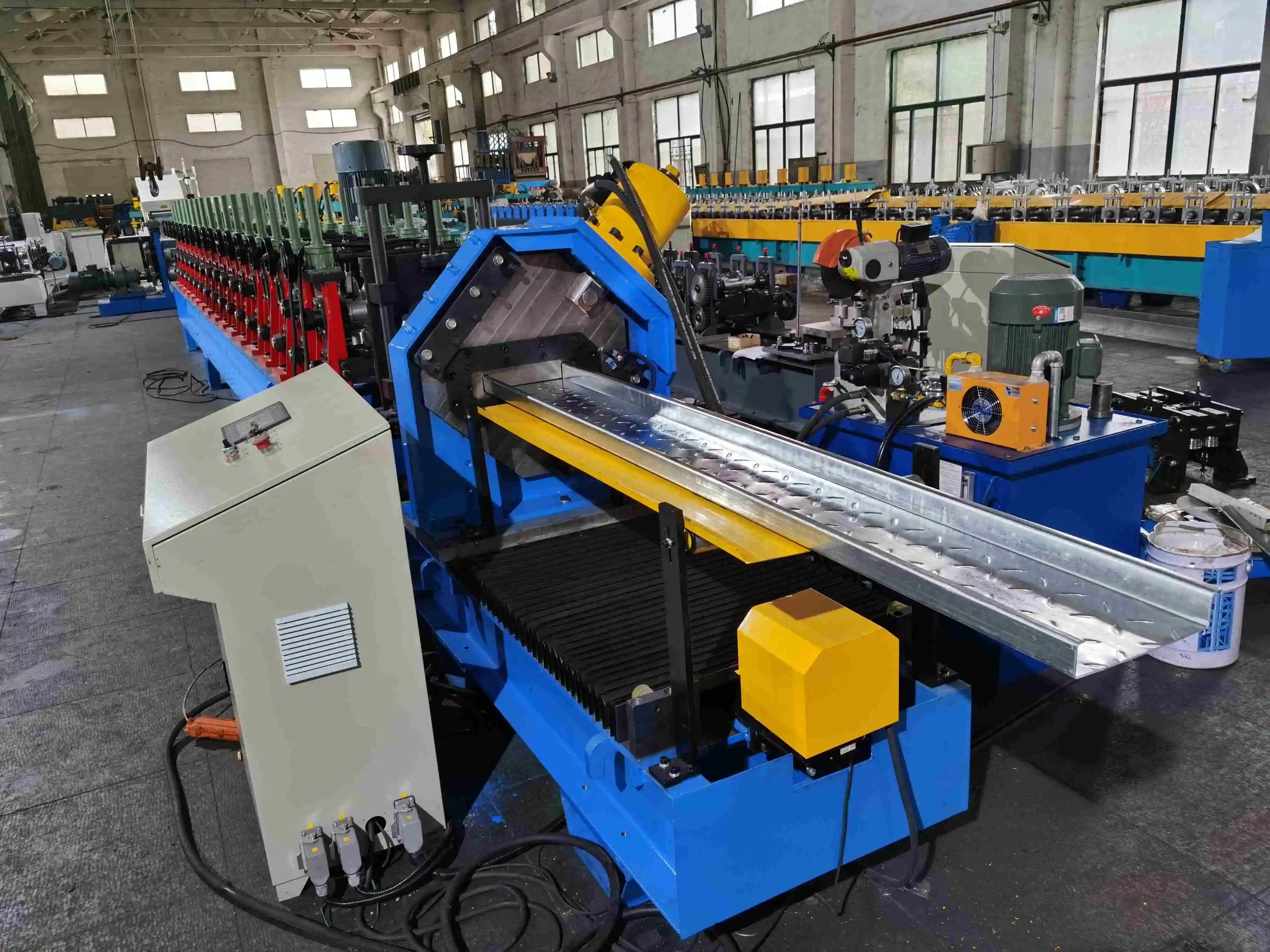

Flying Hydraulic Cutting

  1. Servo Tracking Motor: 4KW
  2. Hydraulic Cutting Motor Power: 5.5KW
  3. Cutting Blade Material: CR12, quenched.

Kontrol Paneli

  1. Adopt PLC controlled system, touch screen. The operator can set all the data on the touch screen and control the machine running.
  2. Siemens or Panasonic PLC
  3. Yaskawa Inverter
  4. Omron encoder.

Çözüm

O Walk Board Scaffold Plank Roll Forming Machine represents a critical intersection of structural engineering and automated manufacturing. By transforming raw galvanized steel into high-precision, load-bearing platforms, these machines provide the literal foundation of safety for the global construction industry.

In 2026, the transition from traditional timber to roll-formed metal planks is no longer just a trend—it is a safety mandate. With integrated features like high-speed hydraulic punching for anti-slip traction, reinforced “C-channel” profiles for immense weight capacity, and PLC-controlled precision, these production lines allow manufacturers to deliver consistent, durable, and OSHA-compliant products at scale. Investing in this technology isn’t just about output; it’s about ensuring that every worker at height stands on a platform engineered for maximum stability and zero failure.

Ready to take the next step?

Whether you are looking to invest in a new production line or optimize your existing manufacturing output, I am ready to help you move from planning to production.

How can I assist you further?

  • Custom Technical Datasheet: Would you like me to draft a formal technical specification sheet (including motor power, floor space requirements, and tolerance levels) for your procurement team?

  • Operational Guide: Should I outline a daily maintenance and safety checklist for operators to ensure the longevity of the forming rollers?

  • Visual Concept: Would you like me to generate a high-fidelity image of a modern, 24-station scaffold plank roll forming line to help visualize the factory layout?

Which of these would be the most valuable next step for your project? Contact us now!!
