Monterey V1100 Tile Roll Forming Machine

Believe Industry have different design of  Monterey V1100 Tile Roll Forming Machine for sale  and all the machines are fully customized.

Monterey V1100 Tile Roll Forming Machine For Sale

What’s Monterey V1100?

Monterey V1100 is a very famous tile profile which is widely used in Russian. As usual, the tiles will be covered with a compete polymer costing( Plastic Film). To protect the tile against corrosion, and make the roof durable.

Russian producer product the tile with a step of 300mm, 350mm and 400mm. With the thickness is from 0.3-0.8mm. The advantage of Montery is two special grooves for  drainage of condensate from the inner surface of the sheet.

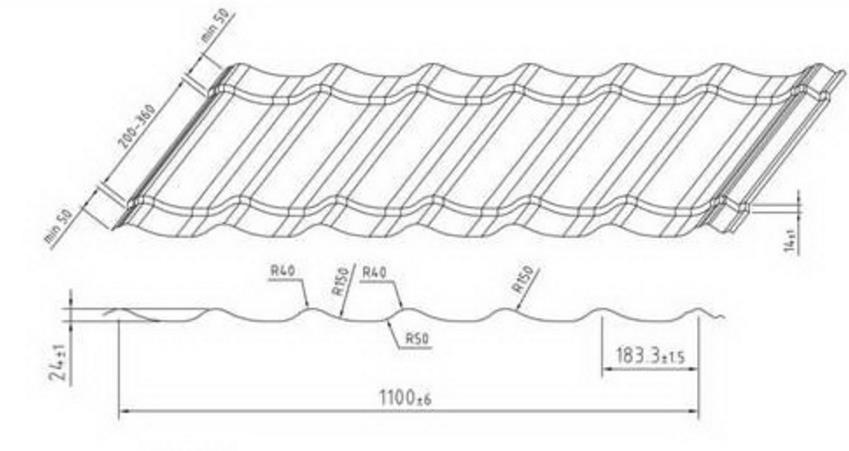

Monterey V1100 Roof Tile

Specifications of Monterey V1000 Tile Roll Forming Machine

Layout of the Machine

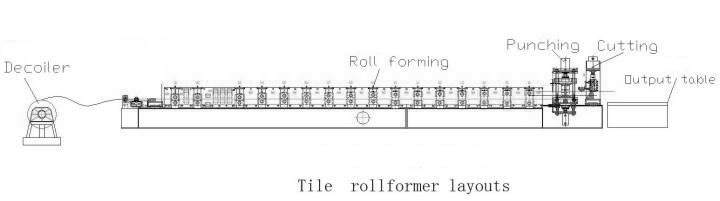

Tile Roll Forming Machine process

Makine Bileşenleri ve Teknik Parametreler

Manual Açıcı

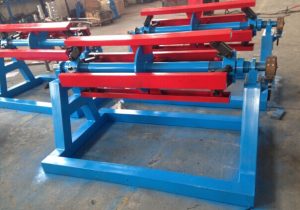

5 Tonluk Manuel Bobin Açıcı
  1. Steel box beam and steel plate welded, Manual tension and passive uncoiling.
  2. Loading Capacity: 5 Ton
  3. Inner Diameter of the coil: 480-520mm
  4. Outer Diameter of the coil: 1350mm
  5. Width of the coil: 1250mm
Rulo Şekillendirme Makinesi

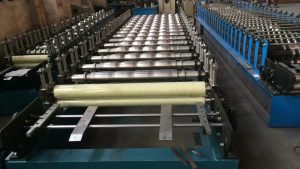

Monterey V1100 Tile Roll Forming Machine
  1. H beam and steel plate welded

  2. Punch and cutting device of tile roll forming machine

    Suitable Coil Thickness: 0.3-0.8mm

  3. Equipped with plastic film coated device
  4. Roll Forming Stands: 16
  5. Rolls Material: ASTM 1045, quenched and tempered, chromed 0.05mm thickness
  6. Shaft Material: ASTM 1045, 80mm Diameter
  7. Roll Forming Speed: 12m/min, line speed: 3-4m/min
  8. Roll Forming Motor Power: 7.5KW

Punch and Cutting Device

  1. The punches will be connected to a single hydraulic unit. This unit consists of tank, motor, pump, pressure control valves, pressure gauges, solenoid valves and hydraulic hoses. All of these are designed to operate safely at the required operating pressure.
  2. Punch and Cutting Mould Material: CR12, quenched, HRC 58-62 °
  3. Hydraulic Motor Power: 11KW
  4. Working Pressure: 12-16 MPA
  5.  We adopt the cutting device and punching mould in one device.
Control System
korkuluk makinesi kontrollü kabin
  1. İşçi, dokunmatik ekran aracılığıyla ürünün uzunluğunu ve miktarını girer (toplam 20 grup). Dokunmatik ekran, makinenin çalışma durumunu gösterir.
  2. Bilgisayar Kontrol Sistemi: Panasonic PLC
  3. Kodlayıcı: Omron Markası
  4. Frekans Dönüştürücü: Yaskawa
  5. Dokunmatik Ekran: MCSG
  6. PLC Brand: Panasonic Brand
  7. Kontrollü Sistem Gücü: Aşırı Yük Koruması
  8. Voltage and current: 380V, 50Hz, 3Phase
  9. Hidrolik İstasyonun Basıncı: ≧12 MPa
  10. Adopt Aviation Plug for easy connecting the wiring.
