Highway Guardrail Roll Forming Machine

Highway Guardrail Roll Forming Machine is for producing Guardrails with holes punched online. Believe Industry have several types of guardrails machines. We have different solutions for both W guardrails, Thrim Guardrails, etc.

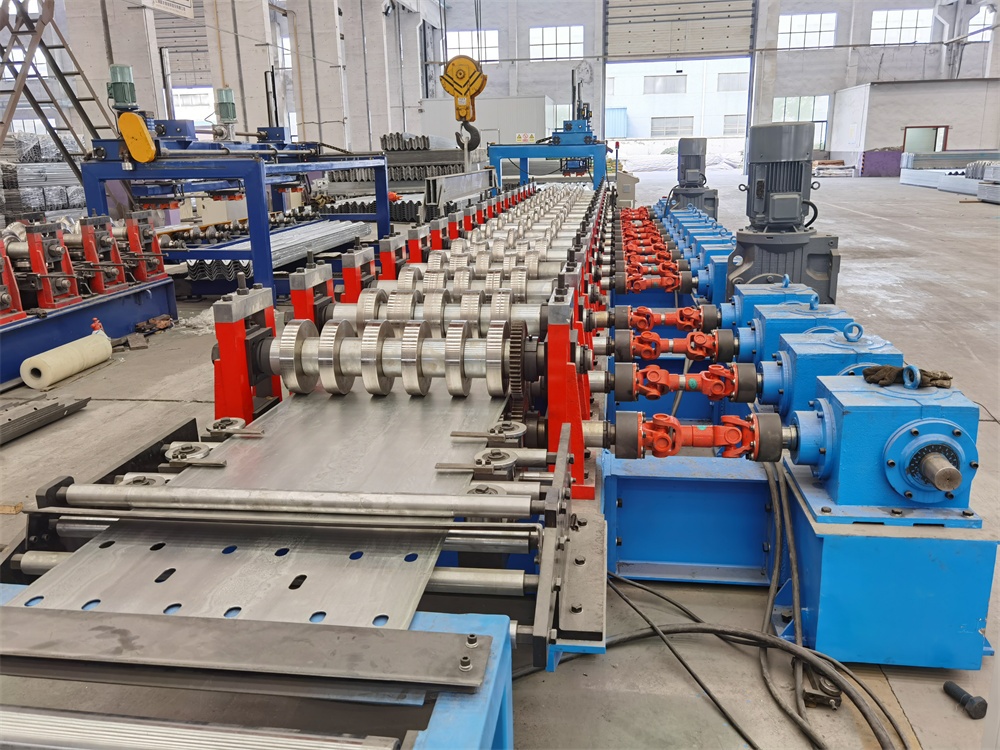

Guardrail Roll Forming Machine Feeder and Guider
Feeder and Guider

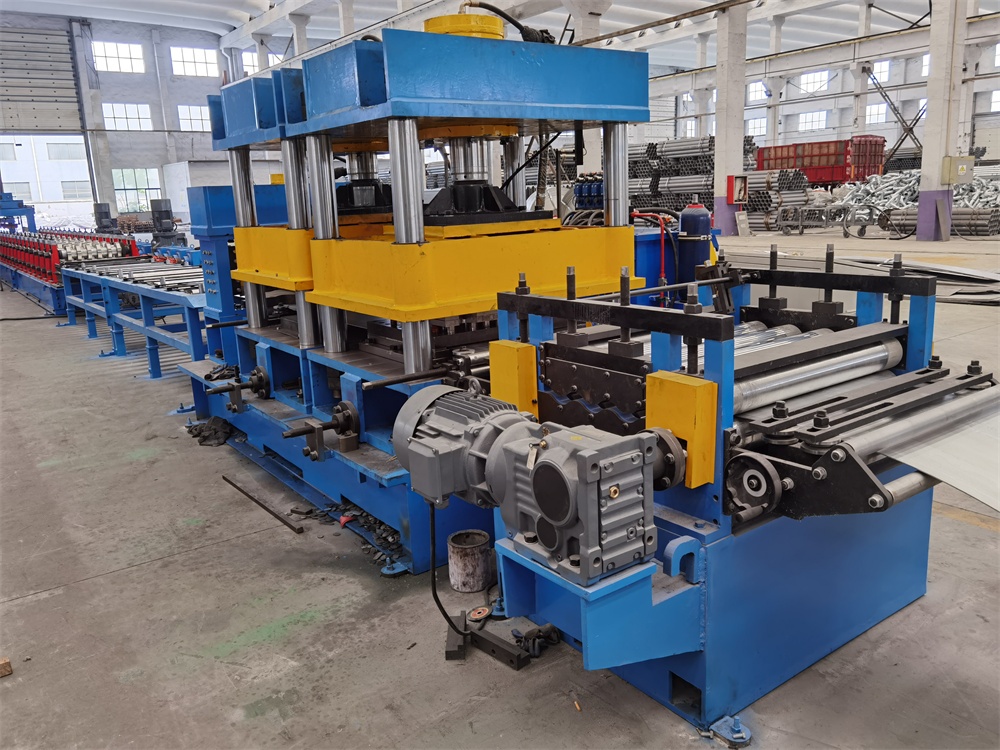

Puncher
Puncher

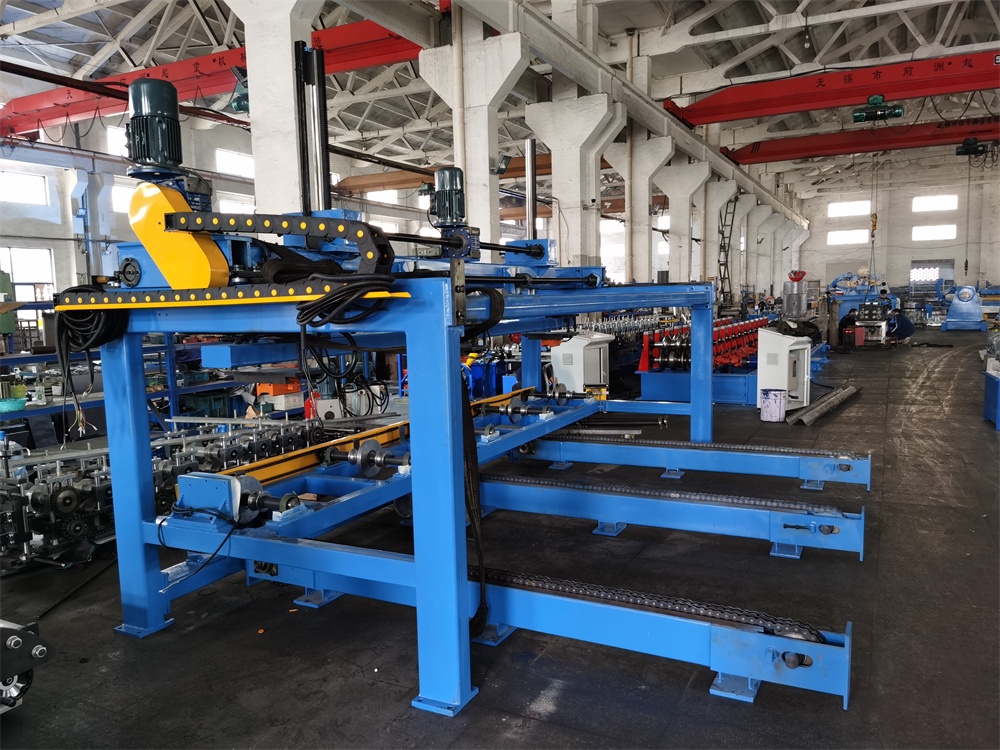

Guardrail Roll Forming Machine Auto Stacker
Auto stacker
Guardrail Production Line
Guardrfail Production Line
Guardrail Roll Former
Hydraiulic puncher
Guardrail Roll Forming Machine Uncoiler
Açıcı
Korkuluk Rulo Şekillendirme Makinesi

Highway Guardrail Roll Forming Machine

What’s guardrail?

Guardrail or Guard rail, is a system to keep errant vehicles from straying into dangerous areas of highway. The thickness of the guardrail can be up to 4.5mm.

The Types of Guardrail

The most common type of Guardrail used now is W-Beam. also called two waves guardrail. And now Thrie-Beam guardrail is new one and which is a type of guardrail that is similar to two pieces of W-Beam Guardrail formed into one single section.

guardrail
Two waves guardrail, W-beam guardrail is widely common used in the whole world.
three waves guardrail
Thrie-beam, also named three waves guardrail, which is for heavy requirement

The end of the guardrail usually formed as a wing type

guardrail wing end
Guardrail wing end is the ends of every group of guardrail system

M/C of Highway Guardrail Roll Forming Machine

5 Tonluk Hidrolik Bobin Açıcı

  • Elektrikli açma, hidrolik gevşetme ve gerdirme
  • Maksimum kapasite 6 ton
  • D：508mmO.D：1350mm
  • Maximum width350mm，
  • Yapı: Çelik levha ve kaynaklı kiriş
  • Çelik şeritlerin desteklenmesi ve açılması.

Feeding and Leveling Device

  1. Feeding Type: Adjustable
  2.  Feeding Width Range:660-800mm
  3. Entrance And Guide Roller: 45# steel, ￠65mm, HRC48-52° surfacechromed
  4. Leveling Roller: Upper layer 4 rollers, down layer 5 rollers, totally 9 rollers
  5. Leveling Roller Material: 45# steel, thermal treatment hardness 48-52 HRC.
  6. Leveling Shaft Material: 45# steel, ￠76mm, hardening and tempering

Punch holes device(Option)

  1. The punches will be connected to a single hydraulic unit with tank, motor, pump, pressure control valves, pressure gauges, solenoid valves, hydraulic hoses, all designed to operate safely at the required operating pressure.
  2. The punches and doilies will be CR-12, HRC 58-62 and chrome coating. Both punches and doilies should be easily replaceable without disassembling of the whole units.
  3. The whole punching operation will be automated and controlled by a program installed in the PC which is located in the operator’s console.
  4. Hydraulic Power: 15kw

Rulo Şekillendirme Makinesi

  1. .Thickness Range: 0-3.2mm
  2. Forming Speed: Not less than 10m/min (Not including punching and cutting)
  3. Main Motor Power:22kw, ABB Brand AC Motor
  4.  Machine Voltage, Frequency, Phase:415V, 50Hz, 3Phase
  5. Roll Station:16 stations
  6. Roller Material:GCR15, HRC58-62, with surface chromed,CNC
  7. Shaft Diameter: ￠76mm, Material: 45# steel with quenching and tempering
  8. Transmission:By gear box, totally 16 groups
  9.  Machine base frame adopt H Beam steel welding
  10.  Buttons in the main roll forming machine for urgency stop if any malfunction.
  11.  Machine station adopt cast iron type to make it strong and stable.
  12. All of driving part cover with protection mesh to avoid accidents.

Cutting Off Device

  1. Cutting Type: Hydraulic cutting, connect with the punching hydraulic unit
  2. Motor  Power:15KW(ABB brand motor)
  3.  Hydraulic Cutting After Forming: Cut guardrail panels after roll forming to required length
  4.  Cutting Motion: The roll forming part stops when cutting
  5. Material Of Cutting Blade:Cr12 with heat treatment
  6.  Length Measuring: Automatic encoder length measuring;Brand: Omron
  7.  Tolerance Of Length: +/- 1.5mm Each piece end product

Aviation Connect Plug Controlled Cabinet

  1. The worker input the length and quantity of the product through touch screen, the touch screen will show the working status of the machine.
  2.  Automatic stopping of the equipment after finishing setted producing.
  3.  Operating System Language: English and Chinese
  4.  Cutting length inaccuracy can be amended e
  5. control Panel: Button-type switch and touch screen
  6. Unit Of Length: Millimeter (mm)
  7.  PLC Brand: Panasonic PLC
  8. Encoder: Omron Brand
  9.  Frequency Converter Brand: Yaskawa
  10. Touch Screen: MCSG
  11. Controlled System Power: Overload Protection
  12. Voltage and Current: 415V, 50Hz, 3Phase

Layout of Highway Guardrail Roll Forming Machine

Believe Industry Company have several design of the roll forming line, the layout is different. now only show one type:

Guardrail Roll Forming Machine Layout
The Layout of Highway Guardrail Roll Forming Machine is Uncoiling– Leveling– Punching– Cutting–Roll Forming– Auto Stacking

Believe Industry Company is engaged in producing series kinds of roll forming machines for steel profiles. Such as: Composite Floor Deck Roll Forming Machine. Purlin Roll Forming Machine. Roofing Sheets Roll Forming Machine, Palet Rafı Rulo Şekillendirme Makinesi, Destek Kanalı Rulo Şekillendirme Makinesi, etc.
