Agricultural Roll Forming Machines: Greenhouse & Farm Building Profiles

Agricultural roll forming machines turn steel coils into the gutters, arches, purlins, and panels that modern farms rely on every day. A single line can feed a greenhouse builder, a barn roof contractor, and a fence post plant from the same coil stock. Roll forming machine lines make this possible with quick changeovers and high output.

Short answer: An agricultural roll forming machine is a roll forming line configured to produce farm and greenhouse profiles: cultivation gutters, greenhouse roof arches, purlins, barn roofing sheets, silo stiffener bands, and steel fence posts. These machines run galvanized or aluminized coil at 15 to 40 m/min and can switch profiles in 2 to 3 hours with a cassette-style mill.

Why Farms Buy Roll Formed Profiles

Modern farming is a steel business. Commercial greenhouses use steel gutters to carry water away from crops. Vertical farms stack growing channels in steel frames. Livestock barns need roofing that resists ammonia corrosion. Fence posts anchor every perimeter line.

Buying these profiles cut to length from a service center works for small projects. Volume buyers lose margin on every meter. An agricultural roll forming machine moves that production in house.

Three reasons drive the shift:

1. Cost per meter. Roll formed profiles from coil cost 20 to 40 percent less than purchased cut lengths.
2. Custom specs. Greenhouse widths differ by region. A 5 meter span gutter differs from a 9 meter span gutter. In house forming answers custom requests in days, not weeks.
3. Seasonal volume. Greenhouse construction peaks in spring. A dedicated line absorbs the surge without supplier delays.

Seven Greenhouse and Farm Profiles

1. Cultivation Gutters

The cultivation gutter is the signature greenhouse profile. Plants grow in substrate bags sitting in the gutter. Drainage water runs along the valley to collection points.

Gutters must be watertight along the full seam. Roll forming closes the seam gradually across stands, which keeps the fold consistent. The National Greenhouse Manufacturers Association publishes structural and drainage guidance that greenhouse gutter profiles follow in most markets. A typical เครื่องขึ้นรูปรางน้ำเพาะปลูก runs 0.7 to 1.2 mm pre galvanized coil.

Wide span greenhouses use gutters up to 4 meters wide that double as the growing deck. Cassette style mills swap between gutter sections in about 2 to 3 hours, so one line serves several greenhouse widths.

2. Greenhouse Roof Arches and Ridge Profiles

Gothic arch and sawtooth roofs need curved steel that holds shape without cracking the zinc coating. Roll formed arch profiles start as flat coil formed into a shallow curve or C shape. Ridge caps close the roof peak and shed condensation.

3. Greenhouse Purlins

Purlins tie roof arches together and carry glazing or film. C and Z purlins from 1.5 to 2.5 mm galvanized steel do the job. The same สายการผลิตเครื่องขึ้นรูปม้วนแป that serves construction projects serves greenhouses, often with punching for quick bolting.

4. Barn Roofing and Wall Cladding

Trapezoidal and corrugated sheets dominate farm buildings. They shed water, resist impact, and install fast. The สมาคมก่อสร้างโลหะ tracks how metal panels cut farm building lifetime costs compared to shingles. A เครื่องผลิตแผ่นหลังคาโลหะ running 0.4 to 0.7 mm coated coil covers both roofs and walls. High volume shops pair forming with the เครื่องขึ้นรูปแผ่นหลังคาความเร็วสูง setup that pushes output past 30 m/min.

5. Silo Components

Grain silos use roll formed stiffener bands, wall sheets, and roof panels. Stiffener bands are deep ribs formed from 2 to 4 mm high strength steel. Wall curvature comes from the forming stands themselves, which is why roll forming beats press braking for silo bodies.

6. Steel Fence Posts

T posts and Y posts protect crops, livestock, and perimeter lines. Fence post machines punch the anchor holes and form the tapered point in line. Galvanized posts outlast painted wood by decades.

7. Hydroponic and Vertical Farming Channels

Vertical farms grow lettuce and herbs in long trays. The tray profile needs a flat planting deck, side walls, and a drain channel in one fold. Thin 0.5 to 0.8 mm stainless or pre painted coil keeps the line clean and food safe.

Profile and Machine Matching

Steel and Coating Choices

Coating choice decides profile life. Farm environments attack steel from two sides: weather outside and ammonia, moisture, and fertilizer inside.

Coating weight follows the เอสทีเอเอ653 standard, which defines Z275 and Z350 galvanized grades by coating mass per square meter.

Coil selection matters as much as coating. Our guide on how to select steel coil for roll forming covers grade, yield strength, and mill tolerance in detail.

Coil width errors waste material on every profile. Greenhouse gutters in particular demand tight width control because the seam fold consumes a fixed allowance. The coil width calculation guide shows how to set blank width before the first test run.

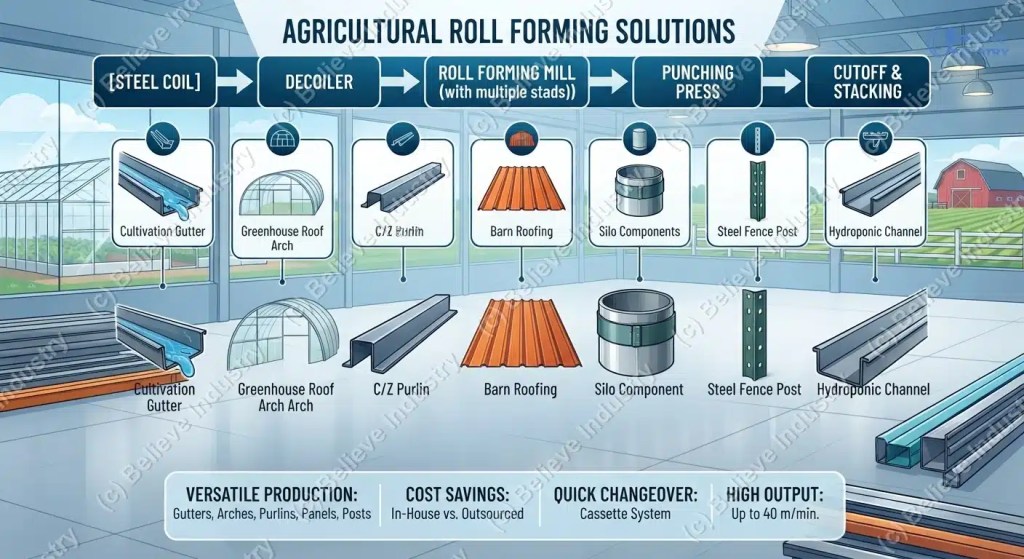

What an Agricultural Roll Forming Line Includes

A complete line has five stations:

1. Decoiler. A 3 to 5 ton capacity decoiler feeds the mill. Double arm models cut coil change downtime in half.
2. Leveler. Optional for thin coil but valuable for 2 mm and above.
3. Roll forming mill. 14 to 24 stands depending on profile depth. Cassette tooling swaps profiles without rethreading.
4. Punching press. Servo press punches bolt holes, gutter slots, or fence post holes on the fly.
5. Cutoff and stacking. Flying die or servo tracked cutoff gives clean, burr free ends at speed.

Buyers often ask how to keep changeover time short between seasonal products. The coil changeover guide breaks down setup routines that trim hours to minutes.

Production Planning for Seasonal Demand

Farm construction peaks in spring across the northern hemisphere. Gulf region demand peaks in autumn and winter when heat eases. Plan coil inventory around those curves.

A practical schedule for one gutter line:

One line, four product families. That spread protects revenue when any single market slows. buyers who only form roof panels face hard competition. Agricultural profiles command better margins because fewer local producers offer them.

Storage structures extend the same logic. Cold stores for harvested crops use insulated panels on roll formed frames. See the เครื่องขึ้นรูปม้วนสำหรับห้องเย็น guide for that application. Standard roof profiles like the PBR panel also serve barn construction, covered in the PBR roof panel machine guide.

Common Buying Mistakes

Buying one profile for everything. A dedicated gutter mill forms beautiful gutters and nothing else. Cassette tooling costs more upfront and saves a full second line.

Ignoring seam quality on gutters. A leaking gutter destroys crops and trust. Ask for a watertight test video before ordering.

Underestimating punching speed. Fence posts need a hole every 100 mm. A hydraulic press that pulses too slow throttles the whole line.

Skipping coating discussion. A greenhouse buyer who receives Z90 coating instead of Z275 sees rust within five years. Put coating weight in the contract.
