What’s Double Layer Machine?

❓ What Is a double layer machine?

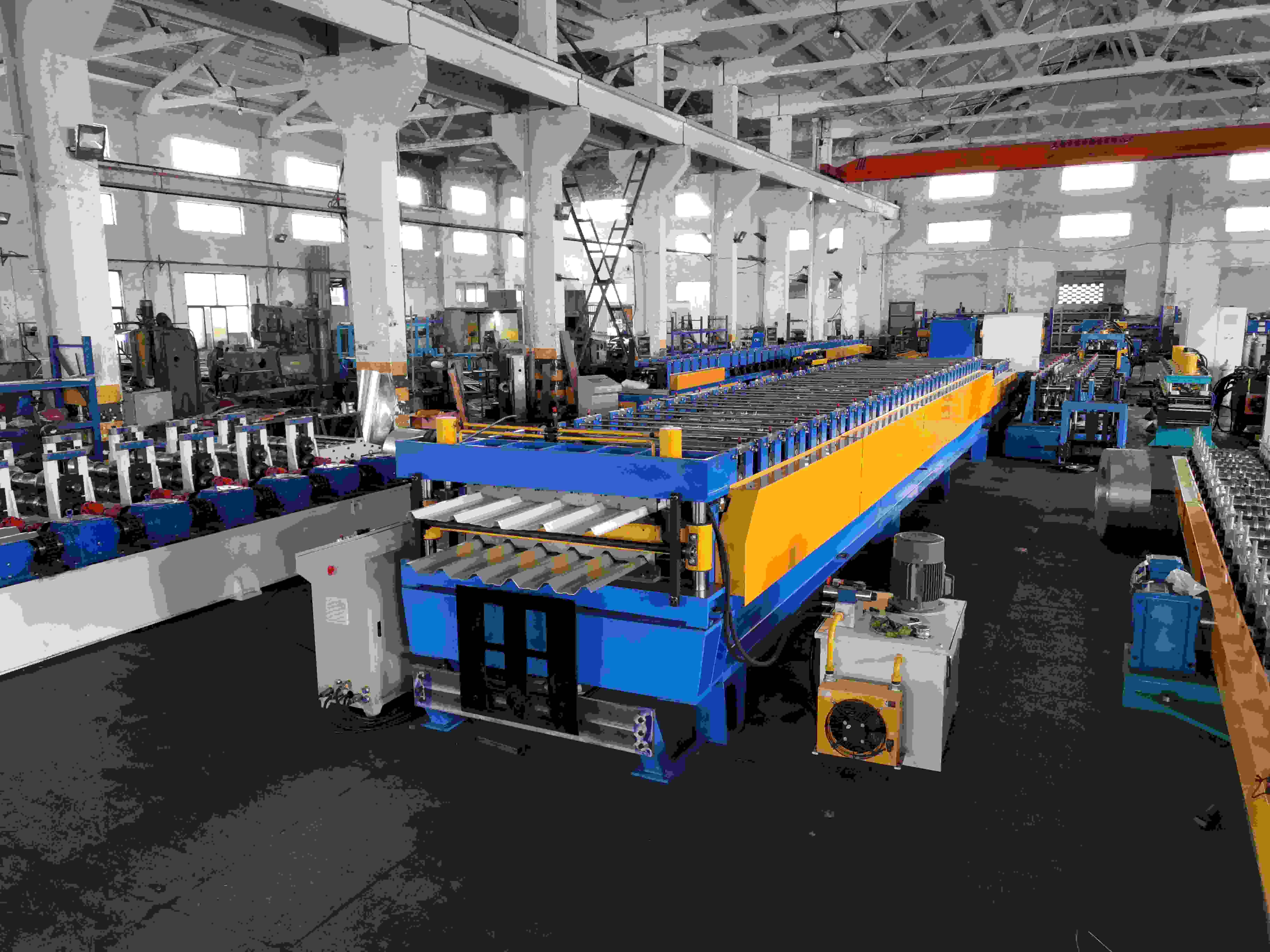

A double layer machine is a specialized industrial metalworking system that features two vertically stacked sets of forming rollers on a single base. Consequently, it allows manufacturers to produce two distinctly different metal profiles without requiring the floor space of two separate machines.

And this innovation is transforming the roofing and siding industries.

🏭 Why Do Factories Need a double layer machine?

Modern factories frequently face overwhelming challenges. Primarily, floor space is incredibly expensive and highly limited.

You simply cannot fit endless rows of single-layer equipment inside a standard workshop. But, consumer demand requires a wide variety of roofing profiles.

So, factory managers often struggle to meet customer needs. They either rent more warehouse space, or they lose valuable orders.

A double layer machine completely solves this specific problem. It uses a vertical, stacked design.

Specifically, the top layer rolls one profile, like a corrugated sheet. And the bottom layer rolls a different profile, like a trapezoidal panel.

Yet, the equipment occupies the exact same square footage as a single-profile unit. Moreover, you only pay for one control system and one cutting shear.

Therefore, a double layer machine dramatically lowers your capital investment.

📚 What Key Technical Terms Must You Know?

When you operate a double layer machine, you must understand basic engineering vocabulary.

Yield Strength: This defines the amount of physical stress metal can take before it permanently bends. It is critical for calibrating the rollers.
Springback: This is the natural tendency of steel to open slightly after it passes through the bending dies. Consequently, operators must over-bend the metal slightly.
Galvanization: This refers to coating raw steel with a protective layer of zinc. And this prevents severe rusting over time.
Plc Control: This stands for Programmable Logic Controller. Specifically, it is the digital computer that dictates the speed and cutting length of the double layer machine.

⚙️ How Does the Metal Bending Process Work?

The production cycle on a double layer machine is quite fascinating.

First, a decoiler feeds flat steel coils into the entry guide. You choose whether to feed the top layer or the bottom layer.

But, you cannot run both levels at the exact same time. The single main motor powers the entire system.

So, the machine pulls the metal through a series of progressive roller stations. These hardened steel rollers gradually bend the metal into the desired shape.

Finally, a hydraulic cutter shears the finished panel to your specified length.

For a complete overview of similar industrial systems, please review our การวิเคราะห์เชิงลึกของเครื่องขึ้นรูปม้วน.

🧮 How Can You Calculate Floor Space Savings?

We want to help you visualize your exact financial benefits.

Therefore, we have created a dynamic interactive calculator below. You can easily estimate the capital you save by using a double layer machine.

🏭 Floor Space ROI Calculator

Calculate your estimated savings by upgrading to a double layer machine.

Cost of Factory Floor Space (Per Sq Meter in $):

Space Saved by Using Dual-Level Tech (Sq Meters):

🔬 Why Do Experts Recommend This Dual Technology?

Industrial engineering requires immense precision. And efficiency dictates profitability.

According to research from the Department of Energy, optimizing floor layouts significantly reduces energy consumption and material handling times.

Moreover, academic studies from top engineering universities (.edu) confirm that sharing a single drive motor across two tooling sets drastically reduces electrical draw.

So, investing in a double layer machine directly aligns with sustainable, lean manufacturing principles.

Furthermore, you can integrate this equipment with advanced material feeds. For example, learning about the BlueScope steel roll forming machine process helps you achieve zero-defect production.

⚖️ How Does It Compare to Single Layer Alternatives?

Before you buy heavy machinery, you must compare the available options.

A double layer machine provides distinct advantages over traditional models.

But, you must also understand its limitations. For instance, you cannot run both levels simultaneously.

If you want to understand proper operational procedures, read our guide on how to operate a double layer roll forming machine without material damage.

Below is a highly detailed data comparison to guide your purchasing decision.

Evaluation Metric	double layer machine	Standard Single Layer Machine
Factory Space Required	1x Footprint (Stacked vertically)	2x Footprint (Requires two machines)
Initial Capital Cost	Approximately 1.5x of a single unit	2.0x (Purchasing two entirely separate units)
Setup & Changeover Time	Under 5 minutes (Just switch feeds)	30+ minutes (Requires manual tooling swaps)
Max Material Thickness	0.3mm to 0.8mm (Optimal for roofing)	Up to 3.0mm+ (Depending on specific model)
Production Speed	15 ถึง 20 เมตรต่อนาที	15 ถึง 20 เมตรต่อนาที

As the data clearly shows, the double layer machine excels in rapid changeovers and compact design.

🏁 What Are the Next Steps for Your Business?

In conclusion, a double layer machine is a monumental upgrade for any metal fabrication facility.

It actively solves severe space limitations. Moreover, it drastically reduces the overall financial investment required to produce multiple roofing profiles.

By implementing this technology, you streamline your workflow and easily adapt to shifting customer demands.

Are you ready to transform your manufacturing capabilities? You should explore our dedicated เครื่องขึ้นรูปม้วนสองชั้น product page to view detailed specifications.

Contact Believe Industry Company today for a free consultation. Our expert engineers will help you select the perfect custom machinery for your unique production goals!

❓ คำถามที่พบบ่อย

What exactly is a double layer machine?

A double layer machine is an advanced manufacturing unit that stacks two completely different roll forming profiles on top of each other. Consequently, it allows factories to produce two distinct products while only taking up the space of one standard machine.

Can I run both levels of the machine at the same time?

No, you cannot operate both layers simultaneously on a standard double layer machine. Because they share a single main drive motor and a single cutting system, you must run them one at a time.

How does this machine save my factory money?

A double layer machine saves money because you do not have to buy two separate machine bases, motors, and PLC systems. and also the uncoiler and auto stackers. Moreover, it drastically reduces the square footage you need to rent or buy for your production floor.

Is a double layer machine difficult to maintain?

No, a double layer machine is surprisingly easy to maintain. Since it has fewer electronic components and only one hydraulic station, routine maintenance takes significantly less time than servicing two individual machines.

What specific metal profiles can this equipment produce?

A double layer machine typically produces popular building materials like corrugated roofing, trapezoidal wall panels, and step tiles. Furthermore, our engineers can customize the upper and lower roller dies to match your exact regional market demands.

Why is yield strength critical when using this equipment?

Yield strength tells operators exactly how much physical pressure the double layer machine must apply to shape the steel. So, understanding this specific metric helps you prevent ugly material cracking and unnecessary roller wear.

How long does it take to switch between the top and bottom profiles?

Switching profiles on a double layer machine takes less than five minutes. You simply stop the machine, cut the current metal strip, and feed a new coil into the alternate entry guide, which drastically improves your daily uptime.
