Roll Formed Upright Column vs Press Brake: 6 Facts That Decide Cost

Choosing between a roll formed upright column and a press brake upright is a volume decision disguised as a machine decision. Both processes produce a load bearing pallet rack upright that must pass the same rack standard.

The difference is how the steel is worked, and that difference shows up in profile accuracy, hole alignment, labour, scrap and output. Below are six facts that decide which route wins for your order book. The talian mesin membentuk roll that builds the fast route is the opposite of the brake press most rack shops already own.

Jawapan ringkas: A roll formed upright column runs from coil at continuous speed, holds profile and hole position across the whole length, and drops unit cost sharply above roughly 400 uprights a month. A press brake upright bends one piece at a time, needs manual hole making, and stays cheaper only for short runs, prototypes and one off specials. Roll forming wins on strength consistency, not on peak section size.

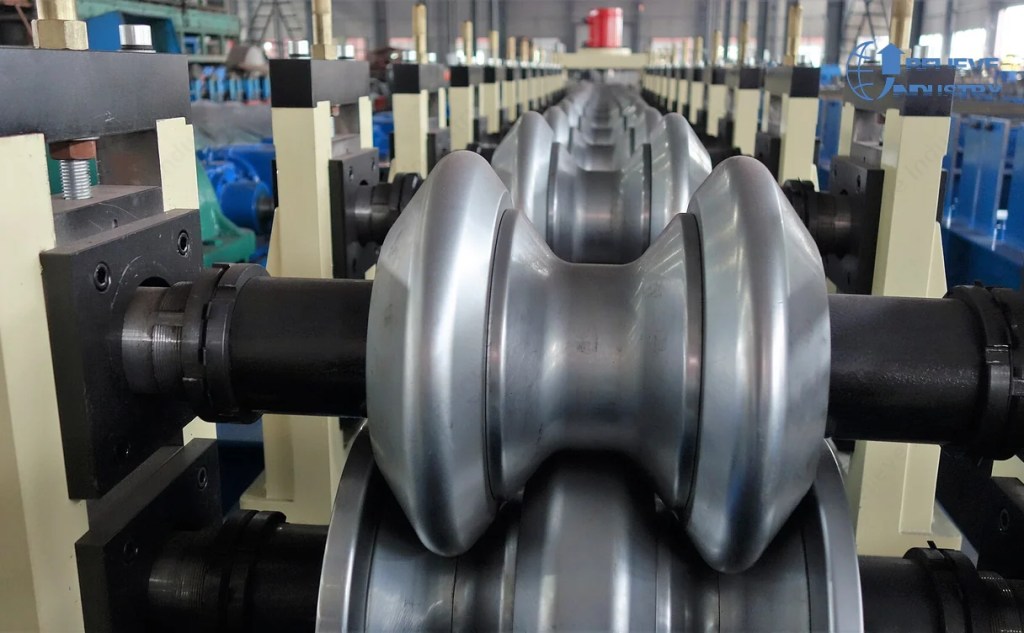

The photo above shows a roll forming machine profile roll set. Each roll contributes one small bend, and the section grows gradually along the line.

Fact 1: profile accuracy over the full column length

A press brake forms each bend over a short lever arm. The operator sets the angle by feel and by trial, so a tall column is a stack of small decisions. Drift accumulates from the bottom bend upward, and the finished upright leans or bows slightly.

A roll formed upright column passes the same profile through every roll station. The shape is fixed by tooling, not by the operator, so the first column of a run and the thousandth column share the same contour. That is why a roll formed upright column shows less camber over a 2.4 m length than a press brake upright of the same gauge.

The practical effect is on the rack frame. A bowed upright pushes the beam connector out of plane, so the frame needs shimming during assembly. On a rack that will be loaded to rated capacity, straightness is a compliance issue as well as a fitting issue.

Every upright in this frame carries the same hole pitch, and the beams only seat because that pitch repeats.

Fact 2: hole alignment and pattern change cost

Hole position sets the whole rack. Every upright in a frame must share the same hole pitch, and every beam connector must land on it. On a press brake upright, holes come from a drill line or a magnetic drill after forming. The operator holds the part against the fixture, and the position varies across shifts and across operators.

A roll formed upright column is punched in line while the strip is still flat. The punch stroke is servo indexed, so pitch and start position repeat to a fraction of a millimetre without an operator in the loop. Flat punching also keeps the hole round. A hole drilled into a formed flange can distort, which changes how the beam connector seats.

Pattern change is where the two routes separate most clearly. A press brake upright moves to a new pitch by editing a drill program. A roll formed upright column moves by changing the punch cam and the encoder count, then proving one piece. For a shop running several frame heights, that difference in changeover time decides the schedule.

Faktor	Roll formed upright column	Press brake upright
Profile reference	Fixed by roll tooling	Set per operator per bend
Hole position	Servo indexed in line	Drill fixture or magnetic drill
Pitch change	Punch cam plus encoder	Edit drill program
Straightness over 2.4 m	Tooling constant	Drift risk
Best fit	Repeat frames, high volume	Prototypes, one off specials

Fact 3: labour cost per upright

Labour is the number that moves most. A press brake cycle is slow by design. The operator loads a strip cut to length, makes the bends, unloads, and takes the piece to a separate hole making station. Handling dominates the cycle, so a press brake upright carries more minutes of labour than the brake itself uses.

One press brake stroke handles one piece. That is the root of the labour difference in both this fact and Fact 4.

A roll formed upright column is loaded once as a coil. One operator runs a full shift on a line with a stacker and does not touch each column after the last station. Labour per roll formed upright column drops to a fraction of the press brake figure, and the saving grows as the line runs longer.

This matters most where labour is expensive. In Australia, Europe and North America a roll formed upright column usually reaches a labour cost floor that a press brake upright cannot match. In low wage regions the gap narrows, but the scrap gap in Fact 4 still stands.

Fact 4: scrap rate and material yield

A press brake upright often needs a trial piece. The first few columns from a new setup are adjusted, and if they are out of tolerance they become scrap. On short runs the setup pieces can be a real share of the batch.

Roll forming reduces trials rather than eliminating them. Once the flower pattern is proved and the punch timing is set, output is repeatable, so scrap falls to material that is genuinely off spec. A well set roll formed upright column line often runs scrap under two percent, where a press brake upright job chasing a narrow tolerance can sit far higher.

Because the coil is continuous, a roll formed upright column also cuts drop to almost nothing. A press brake upright job starting from cut blanks stacks a remnant after every column. Across a year that remnant becomes a measurable cost line on top of the roll forming saving.

Fact 5: output per shift and per year

Speed must be read by punching method, the same way it works on any racking line. The forming rolls are not the bottleneck. A hydraulic punch on a dense upright pattern runs about 3 to 4 m/min. A press punch runs about 10 to 15 m/min. A servo rotary punch can pass 30 m/min on a light pattern.

Convert that to uprights. A typical upright profile of about 2.4 m gives roughly 24 uprights per 10 m of formed strip at zero scrap, before counting the coil that becomes off spec material. A single shift of eight hours then supports a range rather than a single figure, because the punch class sets it. A roll formed upright column line is specified from the hole count, not from the frame cycle the brochure prints.

Punch method	Kelajuan talian	Uprights per shift, indicative	Nota
Penebuk hidraulik	3 hingga 4 m/min	100 to 170	Dense slot patterns, heavy gauge
Press punch	10 hingga 15 m/min	400 to 600	Standard pitch, most rack work
Servo rotary punch	30+ m/min	1,500 to 2,500	Light patterns, high volume

A press brake upright output is limited by cycle time, so one operator produces a fraction of the servo line figure even with a second brake. Any volume argument that ignores the punch class is wrong.

Fact 6: strength consistency and section capability

Both routes use the same grade of steel, so material strength is equal. The difference is section geometry and residual stress. A roll formed upright column is bent gradually over many stations, so the outer fibre sees a controlled strain. A press brake upright concentrates the bend at one die, which raises local stress at the bend root.

A press brake needs tonnage and a long bed to reach a deep section. Roll forming reaches the same section with more, lighter stations.

In service, that shows as consistent load capacity across a frame rather than a scatter of results. Racking load tables assume uniform capacity, and uniform capacity is what roll forming delivers.

Roll forming is not unlimited. A roll formed upright column handles the shallow and medium profiles that make up most rack frames. A very deep box upright, a heavy gauge section, or a short run of heavy columns can still favour a press brake. The honest rule is this: roll forming wins when the shape repeats, and a brake wins when the shape changes constantly.

Where each process wins

The decision is not ideological. It is a volume and tolerance question with a clear break point.

Keadaan anda	Better choice	Why
One frame height, hundreds per month	Roll formed upright column	Punch and roll tooling amortised fast
Several frame heights, frequent changeover	Roll formed upright column with quick change punch cam	Changeover is an encoder job, not a drill job
Prototype run, fewer than 20 uprights	Press brake upright	No line setup to justify
One off specials and non standard brackets	Press brake upright	Flexibility beats speed
Very deep box section, heavy gauge, short run	Press brake upright, or a heavy gauge CTL line	Beyond standard racking roll forming
Buyers auditing straightness to FEM	Roll formed upright column	Tooling constant across the run

A shop that runs both is not confused. Many start on a press brake for prototypes and add a mesin membentuk gulungan once the standard frame has a repeat order behind it. The test is simple. Quote the same frame from both routes, then compare cost per roll formed upright column at your real monthly volume.

Racking output like this is only repeatable when the uprights arrive with a consistent profile and hole pitch.

Standards and buyer audit

Whichever route you choose, the formed upright must meet the rack standard your buyer applies. In Europe that means FEM 10.2.02 for racking design and test. Steel grade and material testing come from ASTM A1008 dan RMI practice in North America, and Australia and New Zealand buyers usually work to the AS/NZS 4084 family.

Ask for measured straightness and hole pitch data rather than a certificate with no numbers on it. Both routes can meet the standard. The difference is how easily they repeat it.

Soalan Lazim

Q: Is a roll formed upright column always cheaper?

A: No. Below roughly 400 uprights a month the line setup, roll tooling and punch cam cost usually exceeds the labour saving, so a press brake upright is cheaper. Above that volume the roll formed upright column route wins on labour and scrap.

Q: Which process gives a straighter upright?

A: The roll formed upright column. The profile is fixed by roll tooling across the whole length, while a press brake upright is a stack of operator set bends that can drift over a 2.4 m column.

Q: Are press brake uprights weaker?

A: Material strength is the same. A press brake bend concentrates strain at one die, so local consistency varies. Racking capacity is steadier when the part comes off a roll formed line.

Q: How fast should the line run?

A: It depends on the punch method, not the rolls. Hydraulic about 3 to 4 m/min, press punch about 10 to 15 m/min, servo rotary over 30 m/min on light patterns.

Q: How do I change hole pitch on the line?

A: Change the punch cam and the encoder count, then prove one piece. On a press brake upright the same change means editing a drill program and refixturing the part.

Q: Can one line make several upright profiles?

A: Yes, a multi spec upright column line changes profile by changing the roll set and re-proving the flower pattern. Setup takes longer than a pitch change but far less than retooling a brake press.
