C Aşık Rulo Şekillendirme Makinesi

C Aşık Rulo Şekillendirme Makinesi is the primary solution for manufacturing high-quality structural steel profiles used in modern industrial buildings. At Beli RollForming, we take pride in being a leading manufacturer and exporter in China, delivering machines that produce C-purlins with a web width of 75-350mm, flange width of 35-80mm, and material thickness between 1.5mm and 5mm.

Our equipment is engineered for durability, ensuring that every profile meets strict engineering standards for load-bearing capacity and structural integrity.

What is a C Purlin Roll Forming Machine?

A C Aşık Rulo Şekillendirme Makinesi is an automated production line that processes steel coils through a series of rollers to create a “C” shaped profile. These C-purlins are horizontal beams used to support the weight of roof decks or wall cladding.

They are widely used in steel structures because they offer a high strength-to-weight ratio. By using a C Aşık Rulo Şekillendirme Makinesi, manufacturers can produce customized lengths and hole patterns efficiently, reducing waste and labor costs on the construction site.

Core Technical Parameters of the C Purlin Roll Forming Machine

The following table outlines the standard technical specifications for our high-performance C Aşık Rulo Şekillendirme Makinesi. These parameters can be customized based on your specific project requirements.

Özellik	Detailed Specification
Suitable Material	Cold Rolled Steel, Galvanized Steel Coils
Malzeme Akma Mukavemeti	235Mpa – 345Mpa (Higher options available)
Malzeme Kalınlığı	1.5mm – 3.0mm( Higher options available)
Web Width (H)	75mm – 350mm (Adjustable)
Flange Width (B)	35mm – 80mm (Adjustable)
Lip Size (C)	10mm – 20mm
Şekillendirme Hızı	15 – 25 meters per minute (excluding cutting time)
Ana Motor Gücü	15KW – 22KW (Depending on thickness)
Hidrolik Güç	5.5KW – 7.5KW
Yuvarlanma İstasyonları	16 – 22 Stations (depending on profile complexity)
Silindir Malzemesi	GCr15 Steel, Heat Treated and Chromed ( D 2 steel for higher options)
Shaft Diameter	75mm – 90mm, 45# Steel
Kontrol Sistemi	PLC (Siemens / Delta / Panasonic)

Diverse Types of C Purlin Roll Forming Machine

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper

At Beli RollForming, we understand that every project has unique requirements. We have developed several variations of the C Aşık Rulo Şekillendirme Makinesi to balance budget and automation levels:

1. Manual Adjust C Purlin Roll Forming Machine

This design is ideal for businesses starting their production journey. It uses manual spacers to adjust the width and height. While it requires more hands-on time for changeovers, it remains the most cost-effective C Aşık Rulo Şekillendirme Makinesi for smaller batches.

2. Pre-Cutting C Purlin Roll Forming Machine

This version cuts the material before the forming process. It is a simple design, but we often advise clients that pre-cutting can lead to slight deformation at the ends. For high-precision projects, we generally recommend our post-cutting C Aşık Rulo Şekillendirme Makinesi models.

3. Multifunctional Cutting C Purlin Roll Forming Machine

This machine features manual spacer adjustment but includes a more advanced cutting system. It ensures the ends are clean and straight, which is vital for professional structural applications.

4. Quick Interchange C Purlin Roll Forming Machine

This is our flagship model. It features a fully automatic PLC control system that allows you to change sizes in under 2 minutes. This C Aşık Rulo Şekillendirme Makinesi is designed for high-volume factories that need to switch between various C-purlin sizes frequently without downtime.

5. Heavy-Duty 5.5mm C Purlin Roll Forming Machine

For infrastructure projects requiring extreme strength, we offer a reinforced C Aşık Rulo Şekillendirme Makinesi capable of handling up to 5.5mm thickness and widths up to 350mm.

, pulvinar dapibus leo.

Core Components of the C Purlin Roll Forming Machine

To ensure long-term reliability, our C Aşık Rulo Şekillendirme Makinesi consists of high-quality components designed to withstand the pressures of cold forming:

Bobin açıcı: We provide a 3-ton single-arm uncoiler as standard. For faster coil changes, you can upgrade to an electric or hydraulic expansion uncoiler.
Main Roll Forming Unit: This is the heart of the C Aşık Rulo Şekillendirme Makinesi. The mill stands can be configured as siding panels or cast-iron cassettes to ensure stability and precision.
Straightening Device: This component is critical to ensure the finished C-purlin is perfectly straight, preventing any twisting or warping.
Hydraulic Punching System: Our latest technology allows for precise hole punching at any position along the purlin, controlled via the PLC.
PLC Control System: We use top-tier brands like Siemens or Delta. The touch screen interface makes it easy to set production data for your C Aşık Rulo Şekillendirme Makinesi.

Beli Rollforming C Purlin Roll Forming Machine Uncoiler - Stable Feeding for Steel Coils — Beli Rollforming’s Heavy-Duty Uncoiler: Ensures smooth, consistent feeding of steel coils for C purlin production. Built for durability and compatibility with various coil widths—laying the foundation for efficient, high-quality forming.”

Beli Rollforming C Purlin Roll Forming Machine Punch System - High-Precision Hole Drilling — Beli’s Programmable Punch System: Delivers clean, accurate holes (slots, bolt holes) tailored to your project needs. Fast punching speed + adjustable hole positions = seamless integration with construction assembly—saving time and labor.

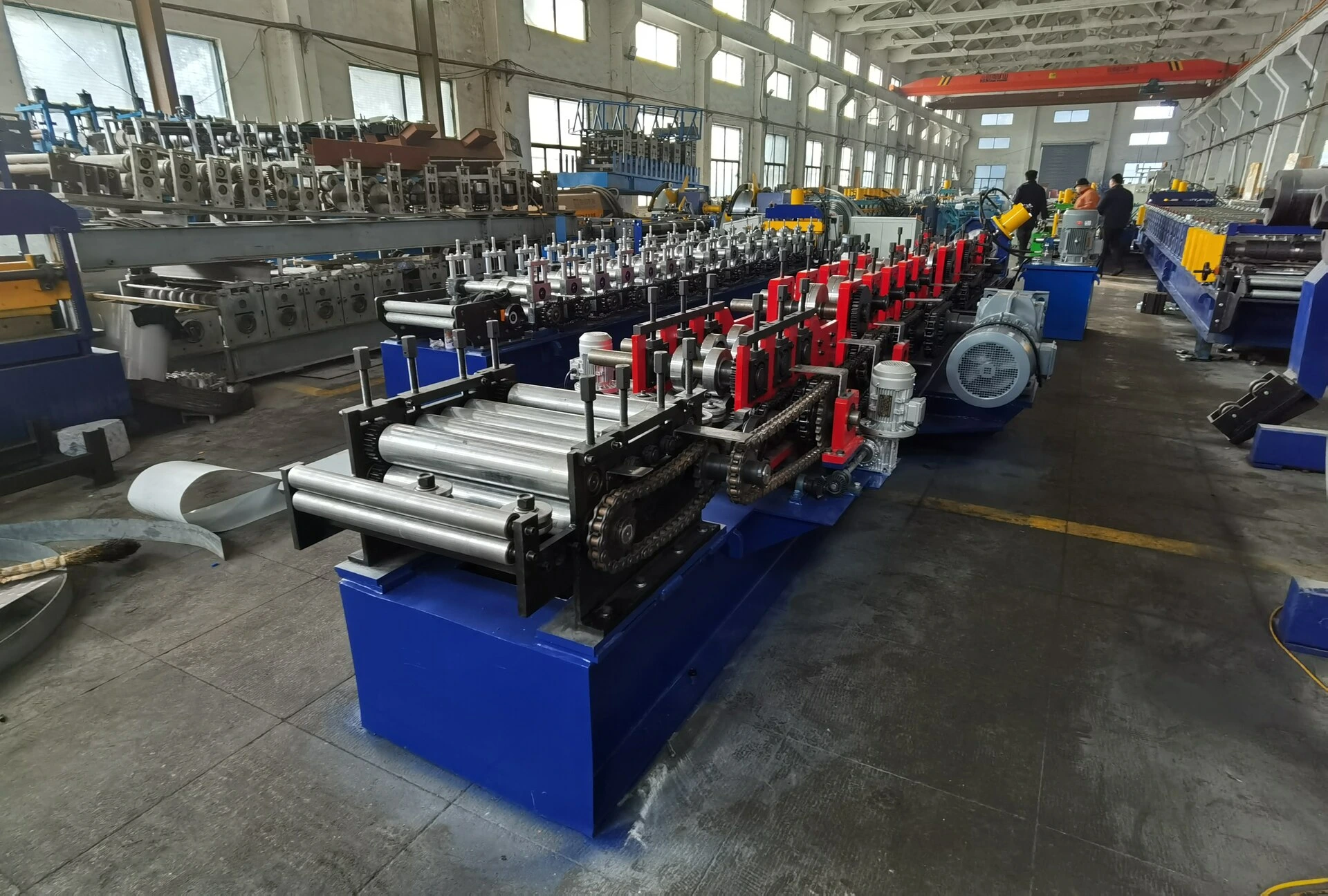

Beli Rollforming C Purlin Feeder & Guider - Precision Material Alignment System — Precision in Every Feed: Beli’s Feeder & Guider ensures steel coils are aligned flawlessly before forming. Eliminates material deviation, boosts accuracy, and maximizes productivity for your C purlin manufacturing line.”

Beli Rollforming Complete C Purlin Roll Forming Machine Line - Turnkey Manufacturing Solution — Beli Rollforming’s Complete C Purlin Production Line: From uncoiling to cutting—an integrated, automated solution for end-to-end manufacturing. Boost efficiency, reduce manual intervention, and produce high-quality C purlins for commercial/industrial construction projects. Trust Beli for reliable, cost-effective roll forming equipment

Why Choose Beli RollForming for Your Production?

As a specialist in the industry, Beli Rulo Şekillendirme focuses on creating an integrated internal link chain of products. If you are looking to expand your factory capabilities, we suggest looking into our [CZ Purlin Roll Forming Machine] for dual-profile production or our [Z Aşık Rulo Şekillendirme Makinesi] for specific structural needs.

Additionally, our [Çatı Kiremiti Rulo Şekillendirme Makinesi] complements the purlin production perfectly for full-scale steel building manufacturers. Every C Aşık Rulo Şekillendirme Makinesi we export undergoes rigorous testing before shipment to ensure it arrives in perfect working order.

We believe that providing a high-quality C Aşık Rulo Şekillendirme Makinesi is only the beginning. We also offer comprehensive technical support and spare parts to keep your production line running smoothly for years to come.
