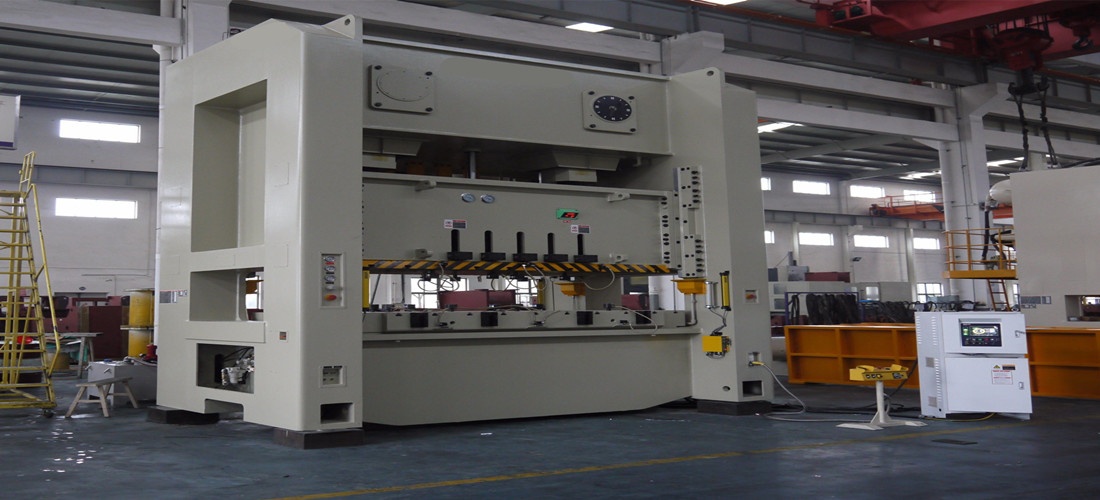

Double Crank Punch Press is for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical arm or added with transfer system
Double Crank Punch Press
Function Features
- With high rigidity design of punch press machine frame, the machine body is welded of quality steel sheet. Which are treated by tension elimination. So improve the machine stability and reliability.
- In order to guarantee the double crank punch machine running stably and smoothly, Believe Industry punch presses adopt the design of symmetrical boards with balancers.
- The precision of the mold adjusting is up to 0.1mm. which is safety, reliable and convenient.
- All the components of crank, gear, connect bar are oxidized hardening, and milled. Which all having super comprehensive mechanical performance and durable function.
- Adopt high sensitive clutch, brake and electromagnetic value. which can assure the precision and safety of slider running and stopping.
Technical Parameters of Double Crank Punch Presses
| Item | Unit | APC-110 | APC-160 | APC-200 | APC-250 | APC-315 | |||||
| Model | V | H | V | H | V | H | V | H | V | H | |
| Capacity | Ton | 110 | 160 | 200 | 250 | 315 | |||||
| Rated Tonnage Point | mm | 5 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 7 | 3.5 |
| Stroke | mm | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 | 300 | 170 |
| Stroke Speed | S.P.M | 35-65 | 50-100 | 30-55 | 40-85 | 25-45 | 35-70 | 20-35 | 30-60 | 20-35 | 30-50 |
| Die Height | mm | 400 | 435 | 450 | 485 | 500 | 550 | 550 | 605 | 550 | 615 |
| Bloster Area | mm | 1800*650*130 | 2000*760*150 | 2400*840*170 | 2700*900*170 | 2800*1000*190 | |||||
| Slide Area | mm | 1400*500*70 | 1600*550*70 | 1850*650*95 | 2100*700*95 | 2200*900*95 | |||||
| Slide Adjustment | mm | 100 | 100 | 120 | 120 | 120 | |||||
| Main Motor | KW*P | 11*4 | 15*4 | 18.5*4 | 22-4 | 30*4 | |||||
| Punch Press Weight | Ton | 14.2 | 20 | 27.5 | 45.5 | 47 | |||||
| Capacity | Ton | 3.6*2 | 6.3*2 | 10*2 | 14*2 | 14*2 | |||||
Standard Accessories and Optional Accessories of Press Machine
| Standard Accessories | Optional Accessories |
| High performance dry clutch&brake | High perfermance wet clutch&brake |
| Hydraulic overload protector | Die cushion |
| Overrun detector | VS motor |
| Dual solenoid | Safety light curtain |
| Missfeed detector | Slide knock-out device |
| Motorized slide adjustment device | Main motor reversing circuit |
| Motorized grease pump | Foot Switch |
| Total counter | Safety die block with plug |
| Preset counter | Anti-vibration feet |
| Maintenance counter | Automatic feeder |
Contact us for more information of Mechanical Punch Press.
