SUPERMARKET SHELVING PANEL ROLL FORMING MACHINE | Believe Industry

Supermarket Shelving Panel Roll Forming Machine is for producing shelving panels with the product display card position. And the width is various.

Supermarket Shelving, Panel Roll Forming Machine

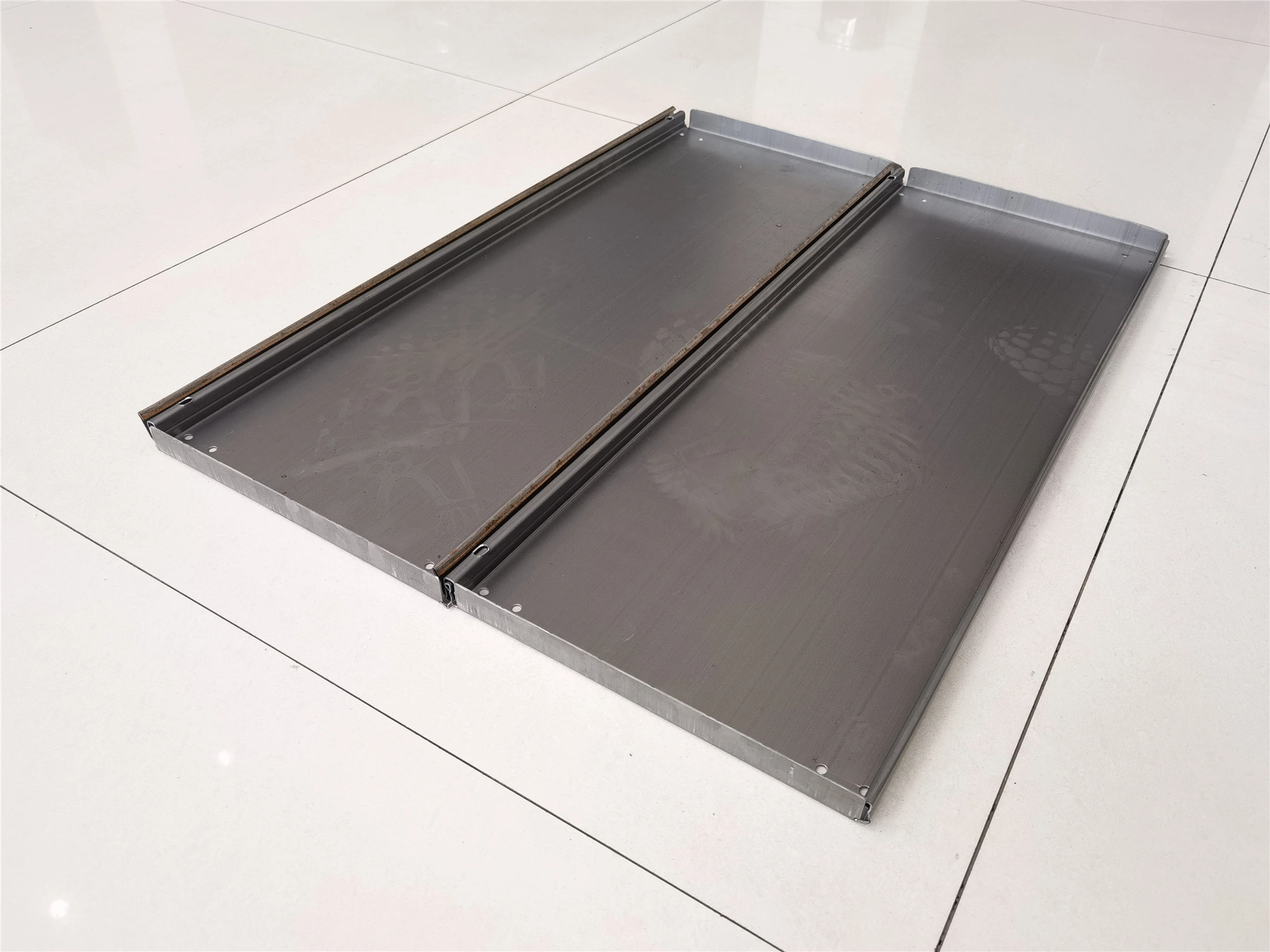

What’s Supermarket Shelving Panel?

A supermarket shelving panel is used to load the goods and also display the goods information and prices. Usually the width of the panels is various. Believe Industry Company roll forming machine can form different profiles supermarket shelving panels with various width

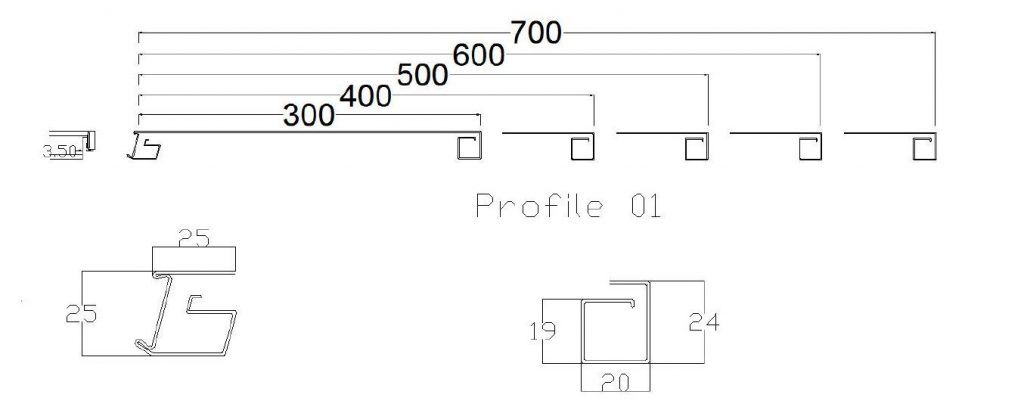

shelving panel type

Technical Parameters of Supermarket Shelving Panel Roll Forming Machine

Supermarket Shelving Panel Roll Forming Machine Layout

shelving panel roll forming machine layout
Uncoiling– Leveling– Servo Feeding and Punching– Feeding and Guiding– Roll Forming– Cutting and Bending

Shelf Panel Roll Forming Machine Components and Detailed Specifications

3 Ton Electric Uncoiler

Uncoiler

  1. Manual expansion, electric uncoiling
  2. Loading Capacity: Max 3 Ton
  3. Inner Diameter: 500-600mm
  4. Outer Diameter: Max 1500mm
  5. Motor Power: 1.5KW
  6. Press arm is equipped
  7. Adopt limit switch to ensure the speed will synchronize with the leveling device
  8. Speed controlled by inverter

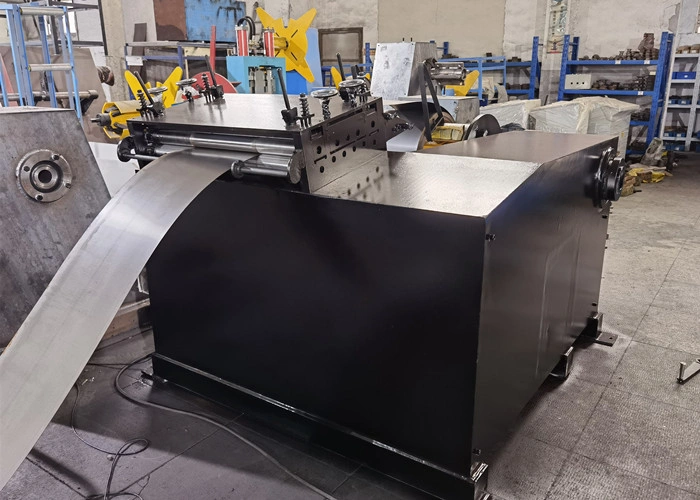

Nine Rollers Leveling Machine Leveling Machine

  • Motor Power: 2.2KW
  • Design: Upper 3, bottom 4
  • Diameter of the rollers: 80mm
  • Leveling Roller Material: 45# steel, thermal treatment hardness 48-52 HRC.Hard chromed 0.05mm
  • Leveling Shaft Material: 45# steel, ¢76mm, hardening and tempering
  • Adopt limit switch to ensure the speed of leveling machine will be synchronized with the servo feeder and punch device

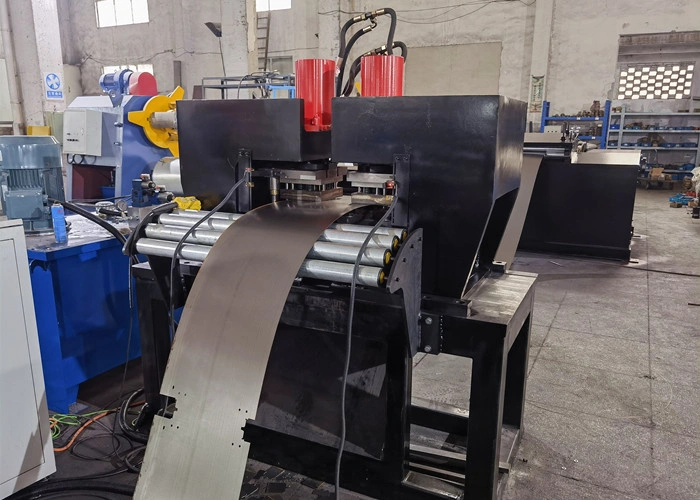

Servo Feeder and Punch Device

servo feeder and punch machine

  1. Servo feeder type: NCF-700
  2. Tracking Servo Motor Power: 2.2KW
  3. Width of the material: 0-1000mm
  4. Thickness of the material: 0.5-0.8mm
  5. Feeding length: 0-9999mm
  6. Touch screen controlled type
  7. Pneumatic loosen
  8. Hydraulic Power: 7.5kw
  9. The punches will be connected to a single hydraulic unit with tank, motor, pump, pressure control valves, pressure gauges, solenoid valves, hydraulic hoses, all designed to operate safely at the required operating pressure.
  10. The punches and doilies will be CR-12, HRC 58-62 and chrome coating. Both punches and dies should be easily replaceable without disassembling of the whole units
  11. The whole punching operation will be automated and controlled by a program installed in the PC which is located in the operator’s console.
  12. Adopt limit switch to ensure the speed of leveling machine will be synchronized with the  shelf panel roll forming mill

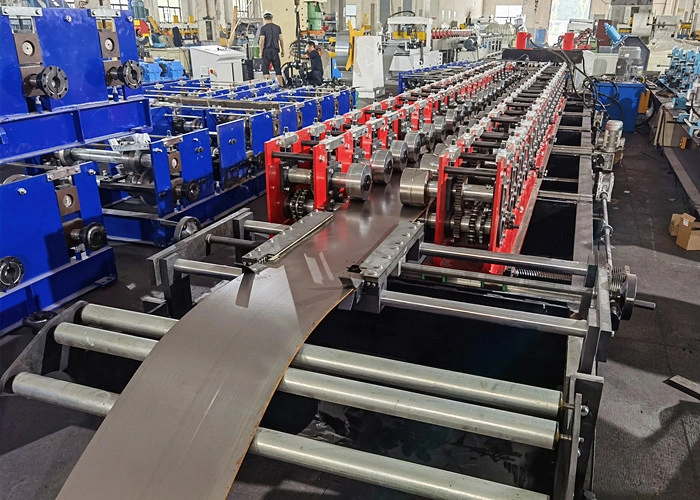

Shelf Panel Roll Forming Mill

shelving panel roll forming mill

  1. Forming Steps: 18 stands
  2. Forming Steps: 8-15m/min
  3. Rollers material: 45# steel, hard chromed 0.05mm thickness
  4. Motor power: 7.5KW
  5. Shaft Diameter: 70mm
  6. Width adjust: Automatic by motor, controlled by controlled box
  7. Shaft Diameter: ¢76mm, Material: 45# steel with quenching and tempering
  8. Transmission:by chain
  9. Machine base frame adopt H Beam steel welding
  10. Buttons in the main roll forming machine for urgency stop if any malfunction.
  11. Machine station adopt cast iron type to make it strong and stable.
  12. All of driving part  of Shelving Panel Roll Forming Machine will cover with protection mesh to avoid accidents.

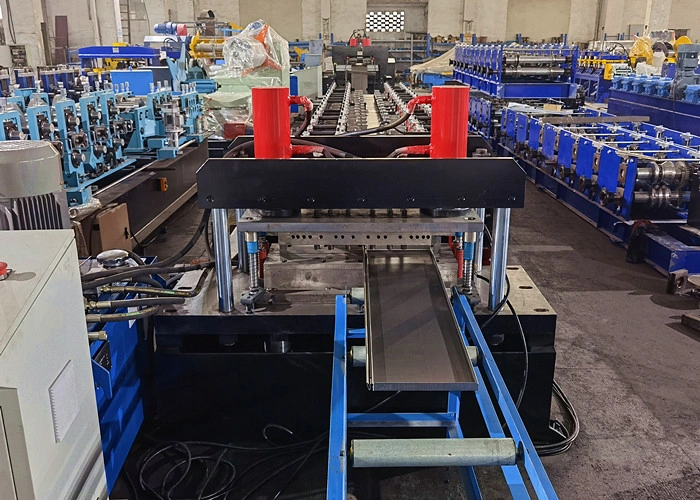

Hydraulic Cutting and Bending Device

Cutting device and bender

  1. Cutting Type: Hydraulic cutting, connect with the punching hydraulic unit
  2. Hydraulic Cutting Motor Power:7.5KW
  3. Cutting Motion: The roll formingpart stops when cutting
  4. Material Of Cutting Blade:Cr12 with heat treatment58-62
  5. Length Measuring: Automatic encoder length measuring;Brand: Omron
  6. Tolerance Of Length: +/- 1.5mm Each piece end product




Controlled Box for Supermarket Shelving Panel Roll Forming Machine

PLC Controlled Cabinet

  1. The worker input the length and quantity of the product through touch screen, the touch screen will show the working status of the machine.
  2. Automatic stopping of the equipment after finishing setted producing.
  3. Operating System Language: English and Chinese
  4. Cutting length inaccuracy can be amended e
  5. Control Panel: Button-type switch and touch screen
  6. Unit Of Length: Millimeter (mm)
  7. PLC Brand: Panasonic PLC
  8. Encoder: Omron Brand
  9.  Frequency Converter: Brand: Yaskawa
  10. Touch Screen:Siemens
  11. . Voltage and Current: 415V, 50Hz, 3Phase

Believe Industry Company  is engaged in design and manufactuer seried kinds of roll forming machines for Warehouse Pallet Racking and Supermarket Storaging System. We also have machines for Upright Racking, Box Beam Step Beam. Light Duty Racks, and other custom roll forming machine.
