SIMPLE SLITTING LINE

Want to know more information of simple slitting line price. Which line speed is around 20m/min. And which is a good choice for a small business.

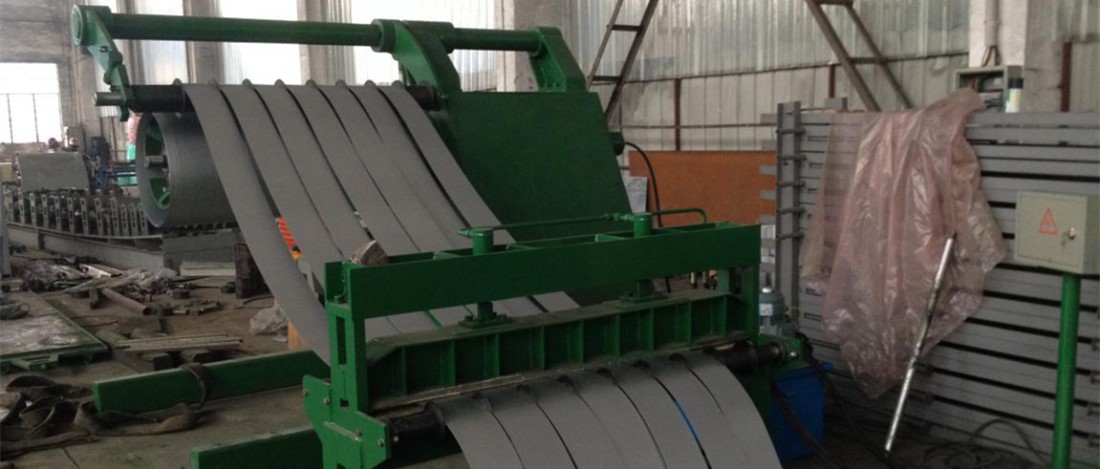

Simple Slitting Line Price

Layout of Simple Slitting Line

Simple Slitting Line layout
Simple slitting line layout: Uncoiler–Feeding and Guiding–Leveling–Slitting–Cutting(Optional)–Tension and Pre-deviding–Recoiling

Brief information of Simple Slitting Line

  • Coil Width: Max 1250mm
  • Thickness: 0.5-1.5 mm
  • Line Speed: 8-15m/min adjustable
  • Slitting Number: Max 8
  • Weight of the coil: Max 10
  • Minimum Slitting Width: 20mm

Main Technical Parameters

10 Ton Hydraulic Uncoiler with coil car

The Uncoiler is for uncoiling the coils to feed into the slitting device.

  • Loading Capacity: Max 10 TonSimple Slitting Line Uncoiler
  • D of the mother coil: 460-520mm ( Customized)
  • D of the mother coil: 1500mm
  • Width of the coil: Max 1350mm
  • Material of the main shaft: 40CR
  • Uncoiling Speed: 0-15m/min
  • Hydraulic power for expanding: 3KW
  • Electric Power for uncoiling: 5.5KW
  • Equipped with pneumatic damp pressing arm, sensor.( To ensure the uncoiling speed will be synchronous with the slitting device
  • Coil Car Lifting Capacity: Max 10 Ton
  • Moving Speed: 5m/min
  • Lifting Distance: Max 350 mm
  • Moving Distance: Max 2000 mm

Feeding and Leveling and slitting device

Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.The slitting machine has three rubber pinching rollers to drive the sheet. Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet. This device slits the sheet, adjust the slitting blade and can slit different sizes. And guide device is also included, so it is convenient to adjust the slitting size manually.

Simple Slitting Line Slitting Device

  • Type: 2 rollers feeding, 7 rollers leveling
  • Slitting Power: 11 KW, frequency speed control
  • Shaft Diameter: 120mm
  • Shaft material: 40Cr, quenched(HB220-260)
  • Cutter Material: CR12 MOV
  • Cutter Quantity: 10 pairs ( with 5 pairs as spare)
  • Slitting precision: +/-1mm
  • Slitting Speed: 0-20m/min
  • Equipped with scrap rewinder

Pre-divide and Tension Device

Simple Slitting Line Tension Device

The device is is in front of re-coiler and mounted with re-coiler together, it extension the sheet so can wind a tight coil; also it has a partition to divide the sheet separately.

  • Hydraulic pressure tension method
  • Working Pressure: 8 Mpa, adjustable
  • 10 paris pre-divide rings
  • Passive working





Recoiler and coil Car

  • Loading Capacity: Max 10 Ton
  • I.Dof the mother coil: 460-520mm ( Customized)
  • O.D  of the mother coil: 1500mm
  • Width of the coil: Max 1350mm
  • Material of the main shaft: 40CR
  • Uncoiling Speed: 0-15m/min
  • Hydraulic power for expanding: 3KW
  • Electric Power for Recoiling:11 KW
  • Equipped with hydraulic damp pressing arm, sensor.
  • Coil Car Lifting Capacity: Max 10 Ton
  • Moving Speed: 5m/min
  • Lifting Distance: Max 350 mm



PLC Control Panel

The controlling system of this machine uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be chosen operation by manual or automatic.

Controlled box of simple slitting line

  • Control System: Panasonic PLC control system
  • Touch Screen: MCGS Brand( Chinese Famous Brand)
  • Encoder: Omron Brand
  • Inverter: Yaskawa Brand
  • Current: 380V Direct Current, 50Hz, 3 Phase
  • Adopt aviation plug for easy connect the wiring
  • If the machine is equipped with a cutting device, the encoder will be Omron

Hydraulic Station

hydraulic station

To Supply the power for expanding.

  • Motor Power: 3KW
  • Quantity: 2 set, one is for uncoiler and one is for recoiler
  • Work pressure: More than 12 Mpa





Believe Industry Company is engaged in designing and manufacturing Roll Forming Machines, Slitting Lines, Cut To Length Lines as per requirements.  Contact us for more information of simple slitting line price
