Metal Floor Deck Machine

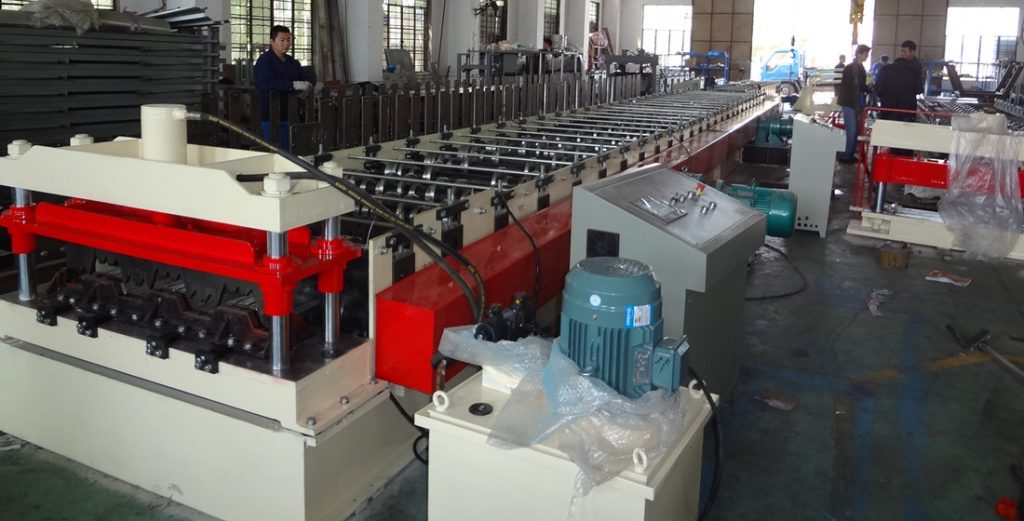

composite floor deck roll forming machine

Floor Deck Machine,Decking Floor Machine

Metal Floor Deck Machine is for producing metal floor decking as per drawings. The thickness is 0.8-1.5mm as usual.

Metal Floor Deck Machine

metal floor deck machine

Machine Components

  1. 10 Ton Hydraulic Uncoiler with Coil Car
  2. Roll Forming Machine Mill( 2 parts for easy loading)
  3. Hydraulic Cutoff Device
  4. Hydraulic Station
  5. Controlled Box ( All electric elements conform to CE standard.)
  6. Collection Table



Layout

The production process of the floor deck machine is Uncoiling–Feeding and Guiding– Roll Forming–Cutting–Collecting

metal floor deck roll forming machine layout

Technical Specifications of Metal Floor Deck Machine

10 Ton Hydraulic Uncoiler With Coil Car

Description Specifications
Loading Capacity 10 Ton
Maximum Coil Width: 1300 mm
Coil Inner Diameter 480-600mm
Coil Outer Diameter Max 2000 mm
Uncoiling Motor Power 7.5KW
Hydraulic Station Motor Power 4 KW
Uncoiling Speed 12-15m/min, will match the speed of the roll forming machine



Main Roll Forming Mill

Description Specifications
Machine Structure H beam steel welded frame as the machine base; Steel plated welded on the machine as the roller stands.
Thickness 0.8-1.5 mm, 350-550Mpa
Roller Stations 26 groups
Shaft Material ASTM 1045, 90 mm Diameter, HB 220-260
Roller Material CR12, quenched 58-62, surface chromed
Motor Power: 15 KW*2
Forming Speed 12-15m/min( not include punch and cutting)
Driven Method Gearbox with joint coupling drive



Cutting Device

Description Specifications
Cutting Type Stop hydraulic cutting
Cuting Blade Material SKD11
Power for Cutting 5.5KW
Hydraulic Pressure 20 Mpa
Length Measuring Omron Encoder



Controlled Box

Description Specifications
Function Users input the length and quantity of the product through touch screen, the touch screen will show the working  status of the metal floor deck machine
Operation Type Manual and Automatic
PLC Brand Siemens or Panasonic
Inverter Yaskawa
Thermal Relay Schneider
Switch Taiwan Mean Well
Touch Screen Siemens

Believe Industry Company have a full range of roll forming machines for metal floor decks, roof decks, etc. Contact us for more information.
