- PPGI COIL
Believe Industry Company have a long-time partner who supply PPGI coil for over than 20 years. We also export coils in a variety of specifications.
What’s PPGI/PPGL Coil?
PPGI/PPGL Coil is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.
Using Hot Galvanized Steel Coil as the substrate, PPGI coil is made by first going through surface pretreatment. Then the coating of one or more layers of liquid coating by roll coating. And finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.

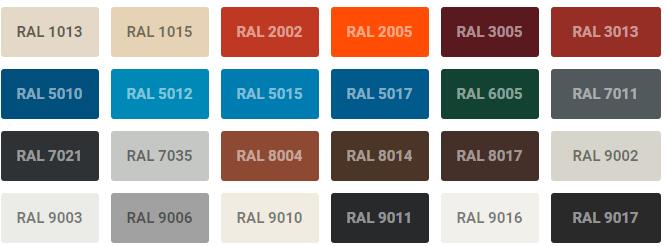

Standard Ral Color Options
We have below standard Ral color options steel coils for sale, and we also accept customized color as per requirements
There are countless end uses for coil coated metal. here only introduce some:
- Service Ceners
- Solar Energy
PPGI/PPGL Coils Specifications
|Width||600-1250mm( 1000 and 1200 is standard)|
|Color||As per Ral code|
|Printed pattern||Marble / wooden / flower designs|
|Top Paint Coating||12-25 micron as customer requirement|
|Back Paint Coating||5-7 micron|
|Standard||JIS G3302, JIS G3313, ASTM A653,|
|Steel Grade||SCGG. CGCC, DX51|
|Coil Weight||3-10 Ton|
|Manufacturing Time||20 days after receive the deposit|

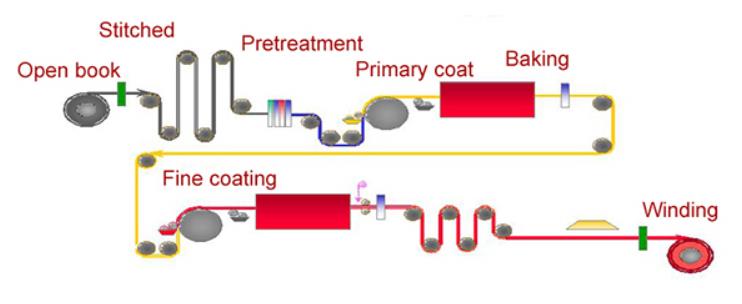

PPGI/GI Coil Production Process

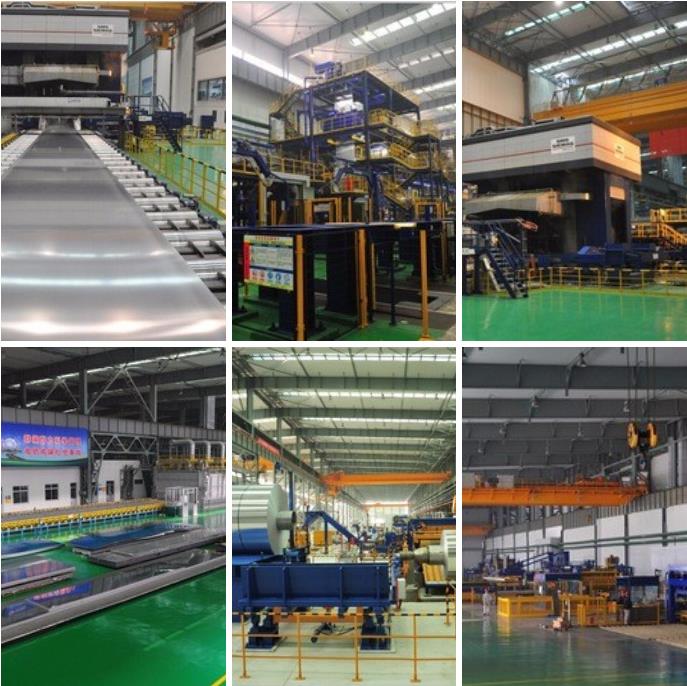

We have our own Physical & Chemical Testing Center Lab to guarantee the PPGI coils quality. Our test items & instrument fully meet international standards
For stock material,the delivery time is just 3-5 working days.
And for customized product,it will takes 25-35 working days based on different size and quantity.
We can send some small pieces of PPGI coil for free, but not include the freight charge.
1: Product Name: PPGI, GI, etc
3: Material Grade
4: Thickness and Width
Contact us for more information of PPGI Coils and also roll forming machines.
