IBR Roof Sheeting Roll Forming Machine

IBR Roof Sheeting Roll Forming Machine is a whole line to produce IBR Roof Sheeting as desired length.

IBR sheet drawing

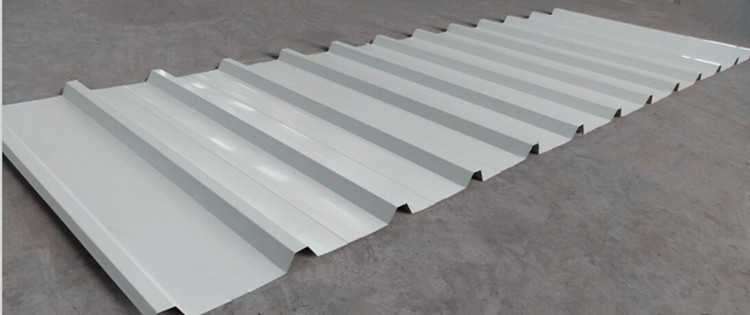

IBR sheet
686 type IBR sheet is while used in South Africa
IBR sheet
New type of IBR Sheet

Technical Specifications of IBR Roof Sheeting Roll Forming Machine

Layout of IBR Sheet Roll Forming Machine

layout of ibr sheet roll forming machine
Uncoiling–Feeding and Guiding–Roll Forming–Cutting–Collecting

M/C of IBR Roof Sheeting Roll Forming Machine

  1. Hydraulic Uncoiler

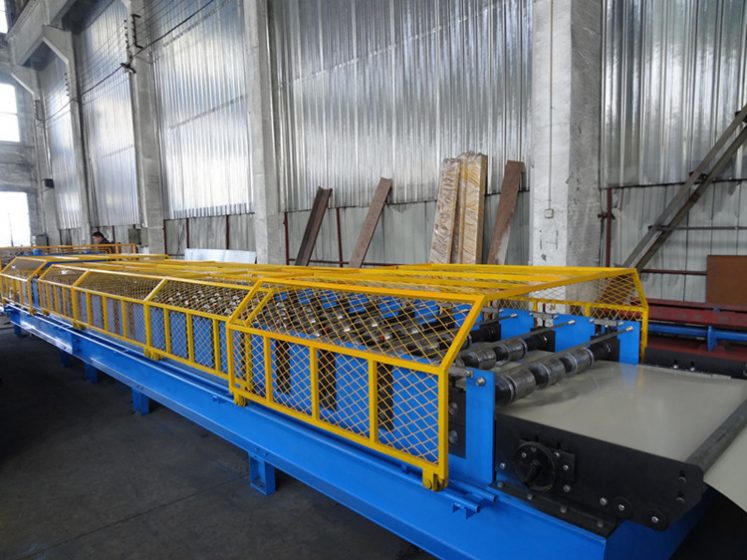

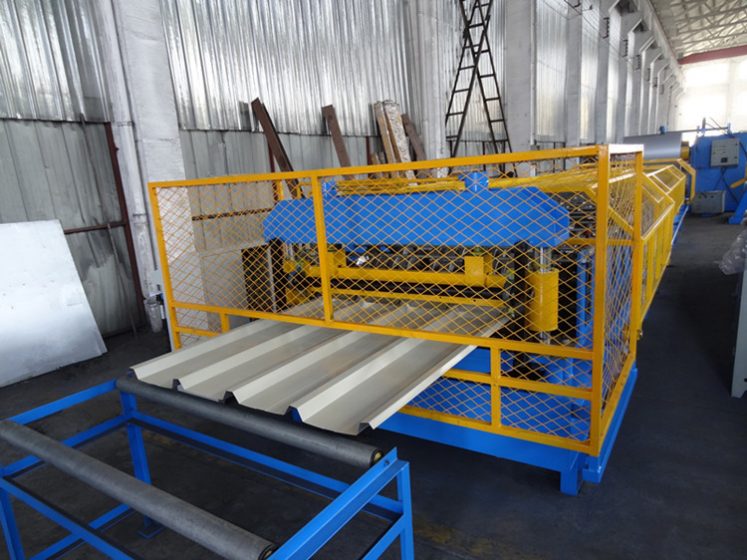

  2. Roll Forming Machine
  3. Cutoff Unit
  4. Collection Table
  5. Hydraulic Station
  6. Controlled Box
  7. Auto Seamming Machine

Specifications of IBR Roof Sheeting Roll Forming Machine

5 Ton Simple Uncoiler

  1. Uncoil Type: Manual loosen and tension, passive uncoiling
  2. .Maximum capacity: 5 Ton
  3. I.D: 460-508mm; O.D: 1350mm
  4. Structure: Steel plate and beam welded
  5. Function: Supporting and uncoiling the steel coils

Roll Forming Machine

  1. Machine base frame adopt H beam and chromed stands
  2. Roll station: 18-26 forming steps
  3. Roller material:45#(ASTM 1045) steel chrome plated surface with hardness 58-62 degree ,CNC,
  4. Shaft diameter: ¢80mm, 45#(ASTM1045) steel
  5. All spacers surface are chromed
  6. Main motor power:7.5KW
  7. Transmission: 1.0 inch chain
  8. To avoid accidents,all of drive part adopt protect cover
  9. Line speed: Max. 20m/min, not include cutting.
  10. To avoid accidents,all of drive part adopt protect cover

Cutting Device

  1. Cutting type: Hydraulic, connect with the punching hydraulic unit
  2. Material of blade:Cr12 with heat treatment 58-62
  3. Length measuring: Automatic encoder length measuring, brand: Omron
  4. Tolerance of length: +/- 1.5mm each piece end product

Hydraulic station with cooling fan

  1. Hydraulic power: 5.5 kw
  2. Working pressure: 12-16Mpa adjustable
  3. Hydraulic oil: 46# hydraulic oil
  4. Solenoid valve: 2 groups

Output table

  1. Table for reception of the cut profiles: With roller transporter allowing to unload the cut profile freely
  2. Unloading of the finished products from the table of cut profiles: Manual
  3. Frame: Welding by tube
  4. Size: About 2.0m long*0.6mwide*0.9m high
  5. One out table with few support roller (base on final design)
  6. Supporter roller: ASTM 1045 with chrome
  7. Diameter of rollers: 55mm
  8. Color: Blue or base on customer request

Control System

  1. Automatic stopping of the equipment after completion of the cutting program
  2. Operating system language: English and Chinese.
  3. Voltage, frequency, phase: 415V, 50 HZ, 3Phase
  4. Length inaccuracy can be amended easily.
  5. Control panel: Button-type switch and touch screen(MCGS)
  6. Unit of length: Millimeter (switched on the control panel)
  7. PLC brand: Panasonic or Siemens
  8. Frequency converter brand: Yaskawa
  9. Omron encoder
  10. Main electric components: Schneider
  11. Adopt aviation connect plugs for easy connect the wires

Believe Industry Companyhave different designs of IBR sheet roll forming machine, and also have series kinds of custom roll forming machine. Contact us now.









Additional information

Weight 6500 kg
Dimensions 7500 × 1200 × 1200 mm
