IBR Sheet Roll Forming Machine

IBR Sheet Roll Forming Machine is for producing IBR sheets for South African Market.

IBR Sheet Roll Forming Machine

What’s IBR  Sheets?

Since it was first introduced to South Africa in 1958, IBR has enjoyed great popularity for use as side cladding or roofing material in commercial, industrial and residential buildings. IBR got its name from the abbreviation of “Inverted Box Rib”, which has become a household name in the South African building industry. Actually, IBR is a square fluted profile with an effective covering width of 686 mm or 890mm.

Believe industry(BELI®) have several kinds of design IBR Sheet Roll Forming Machine for IBR sheeting. and all are customized. Our IBR Sheet Machine is able to form G550 Mpa and thickness up to 0.8mm IBR sheets. And also Corrugated Sheets Roll Forming Machine  for South African Customer.

  1. 686 IBRPROFILE:
686 IBR sheets

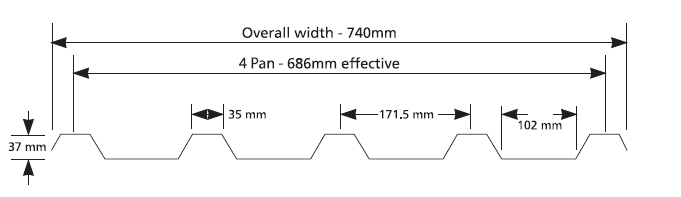

Profile drawing of 686 IBR sheeting
  1. 890 IBRPROFILE:

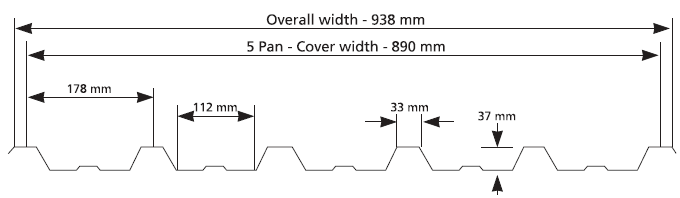

IBR Sheet Roll Forming Machine-890 type
890 Type IBR Sheeting Design.

Machine Components

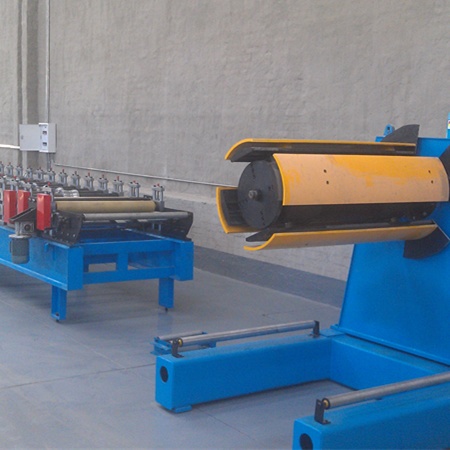

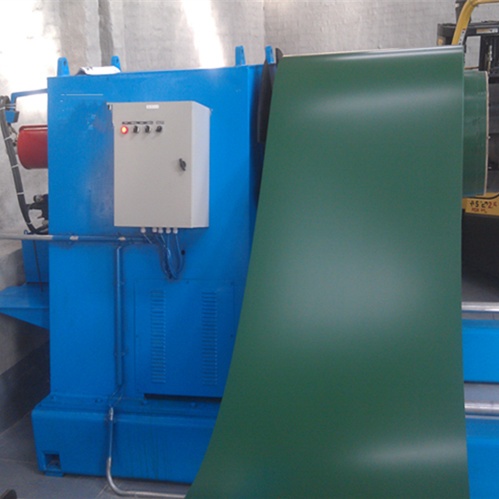

Similar to other roll forming machines, IBR Sheet Machine consists of decoiler, guiding device, roll former, hydraulic cutter controlled system  and product output table. And Auto Stacker is an option.

Main Parameters of IBR Sheet Roll  Forming  Machine

Material Information

  1. Coil Material: GI coils, PPGI coils(as usual, our customers use full hard material, G550)
  2. Coil Thickness: 0.3-0.8mm
  3. Feeding Width: 925mm, 1219mm
  4. Effective width: 686mm, 890mm

Technical Specification

Forming Speed: 10-15m/min

  1. Forming Stations: 24 stations
  2. Diameter of Shafts: 76mm
  3. Material of Shafts: high quality 45# steel
  4. Material of Rollers: Cr40, chromed 0.05mm with hardness treatment.
  5. Transmission: chain-sprocket transmission
  6. Motor Power: 7.5KW

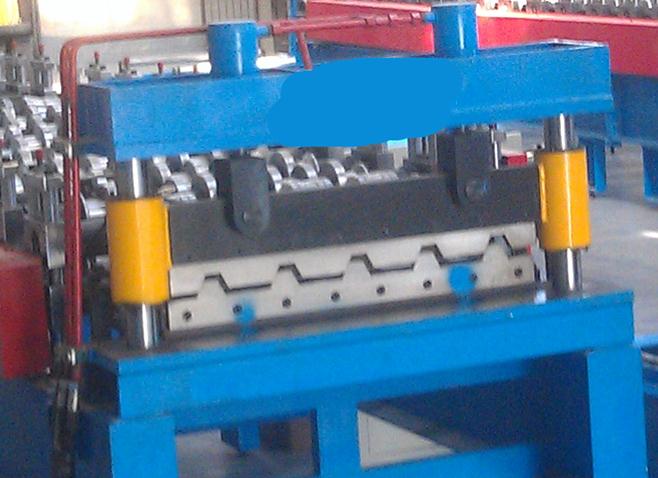

  7. Cutting Type: hydraulic cutting, stop-cutting
  8. Material of Cutting Blade: Cr12Mov, quenching and tempering HRC60-62
  9. Hydraulic Power: 4KW
  10. Motor Brand: Siemens or Chinese famous brand
  11. Omron encoder
  12. Yaskawa Inverter
  13. Panasonic or Siemens PLC

Believe Industry Company have a full range of roll forming machine for construction and building. Contact us for more information. Or email, Whatsapp us.
