CORRUGATED SHEET ROLL FORMING MACHINE

Corrugated Sheet Roll Forming Machine is a special which can produce various width of sheets without any mould change, only adjusting the feeding guiding.

Introduction of Corrugated Sheet Roll Forming Machine

corrugated sheet roll forming machine

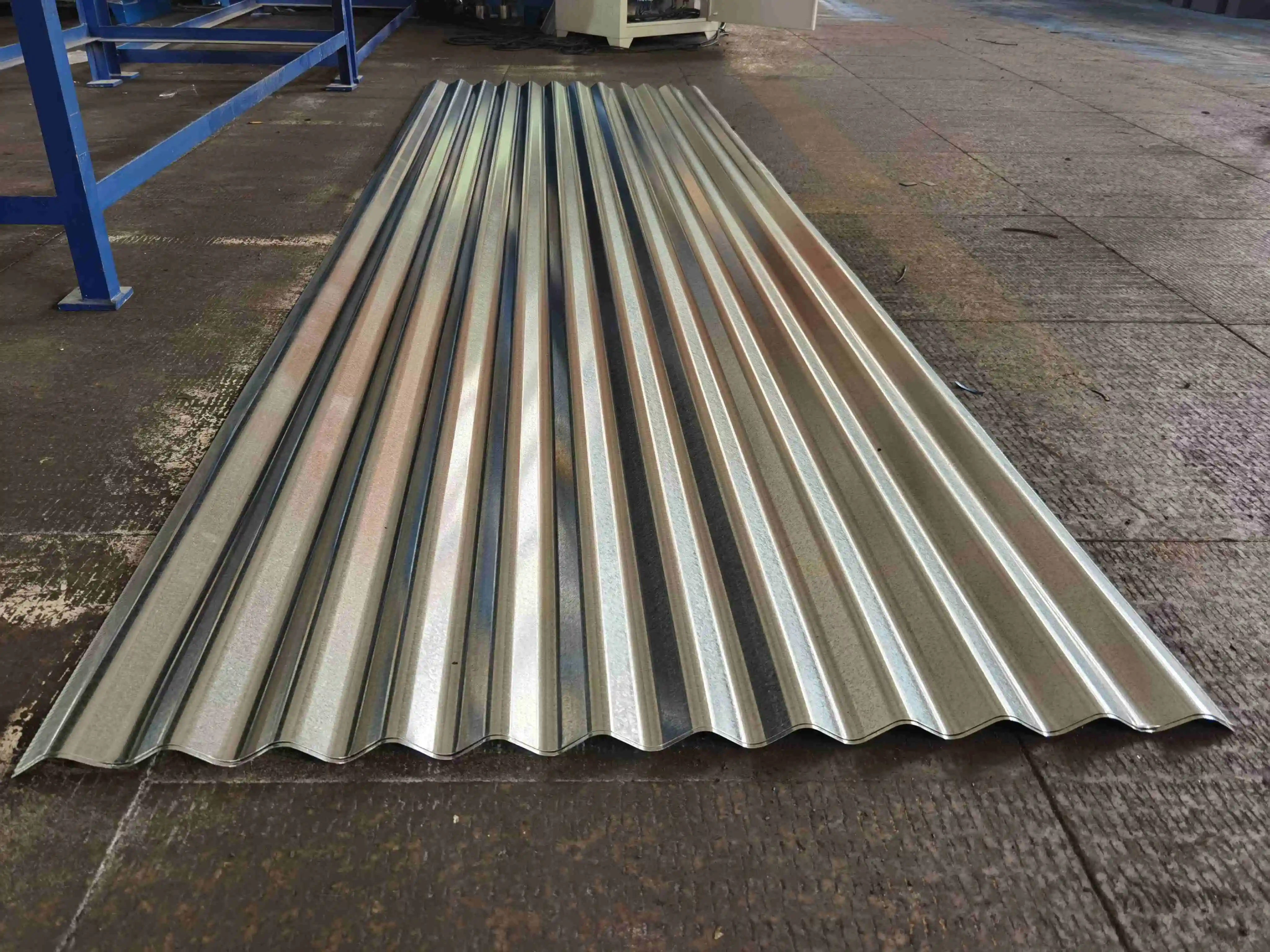

What’s Corrugated Sheet?

Corrugated sheet is a very important cladding element for commercial, residential and industrial roofing and walling. The traditional shape of corrugated material is the round wavy style derived from sinus curve. And today a lot of corrugated profiles come out to meet the needs of different applications. If you have your conjugation profile, let’s customize the corrugated sheet roll forming machine for you.  Furthermore Believe Industry(BELI®) have several design of metal sheet roll forming machines for corrugated sheets. And we are the manufacturer of China Roll Forming Machine

Traditional corrugated profile is 914mm as the feeding width, 762mm as the covering width, 76.2mm as the pitch(distance between two consecutive curves), and 18mm as the depth(wave height). Also, there are mini corrugated profile,  deep corrugated profile, etc. In South African, customer always buy a double layer roll forming machine for IBR sheets and corrugated sheets instead of IBR sheet roll forming machine and corrugated sheets roll forming machine.  Finally to save money and factory space.

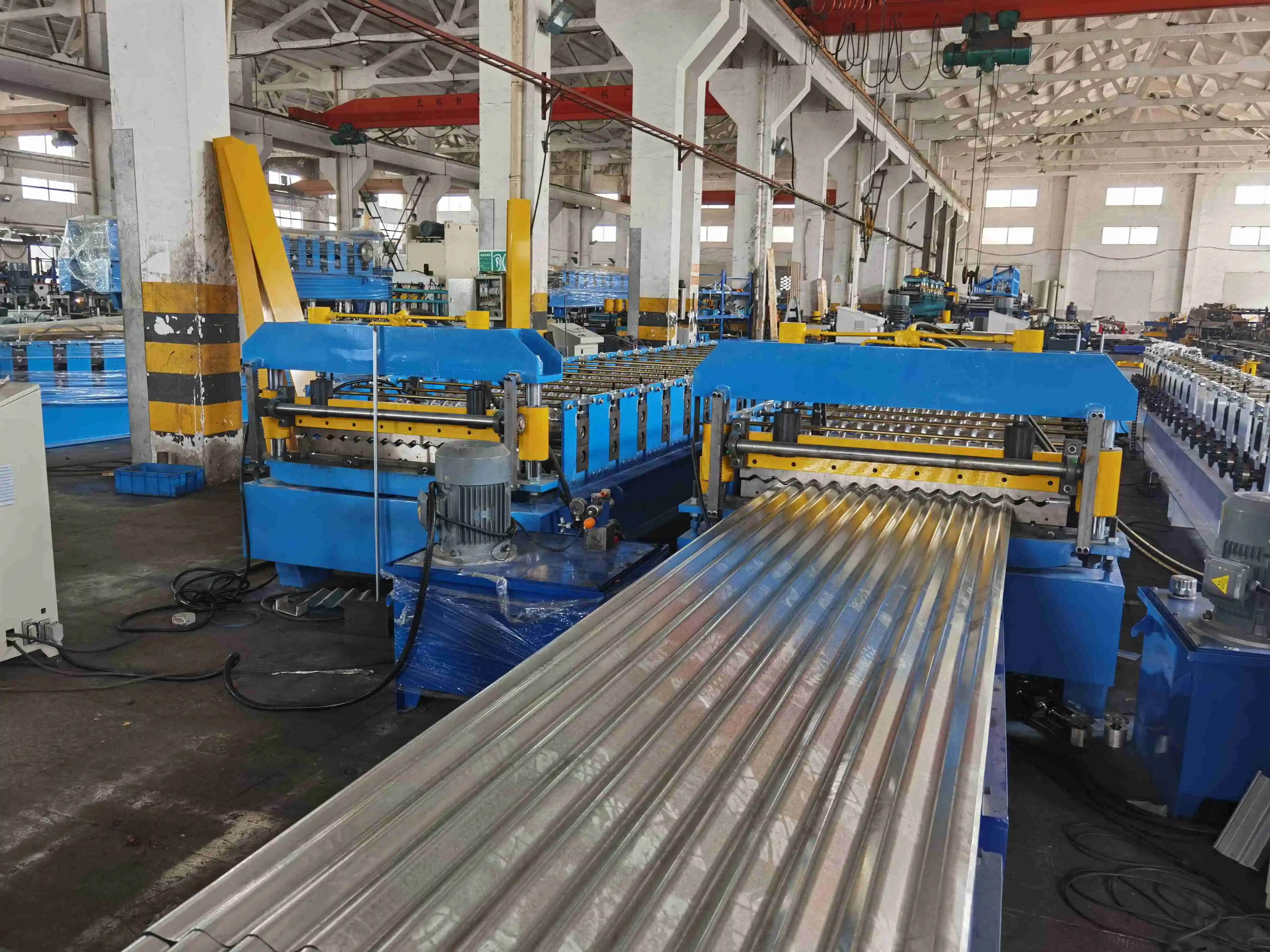

What’s Corrugated Sheet Roll Forming Machine?

Corrugated sheets roll forming machine is very special, Because it accept different input width coil to get different out width product. BELI® have 18-76.2-1000 type machine, it’s obvious that 1000mm output width is the standard width or design width. While you use 1250mm width coil, you will get 1000mm corrugated sheet. While 1000mm width coil, 838mm output. And while 914mm width coil, 762mm output product, only adjust the feeding guide.

BELI® also have Mini Orb Corrugated Sheets Roll Forming Machine, the product is famous in South African

Technical Specification of the corrugated sheet roll forming machine

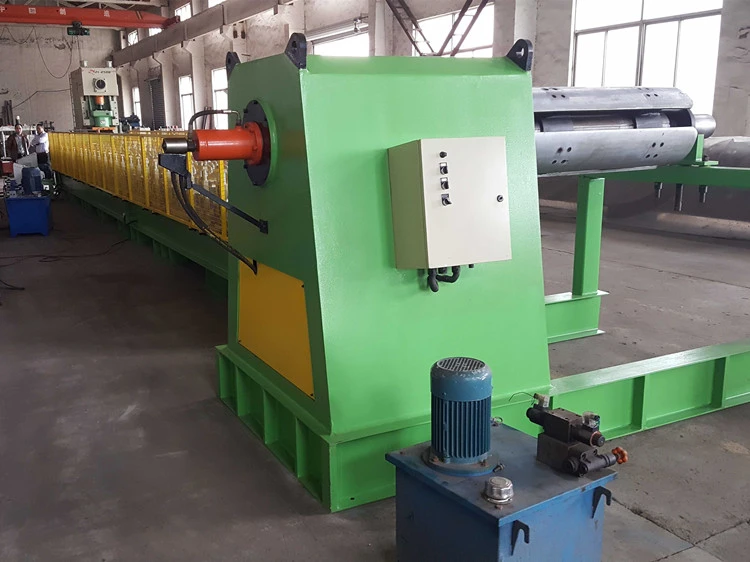

5Ton Hydraulic Decoiler

  • Structure And Function: Steel plate and beam
  • welded structure, used for supporting and uncoiling the steel strips.
  • Decoiler Mandrel Expansion And Tension: Hydraulic expansion and tension, hydraulic power offered by 4kw electric motor
  • Mandrel Expansion Range: 480mm to 560mm
  • Decoiling:5kw motor power for decoiling
  • Decoiling Speed: 0-15m/min, adjustable
  • Speed Control: By frequency converter, YASKAWA brand
  • Maximum Capacity: 5000kg
  • Coil I.D: 508mm; Max Coil O.D: 1350mm

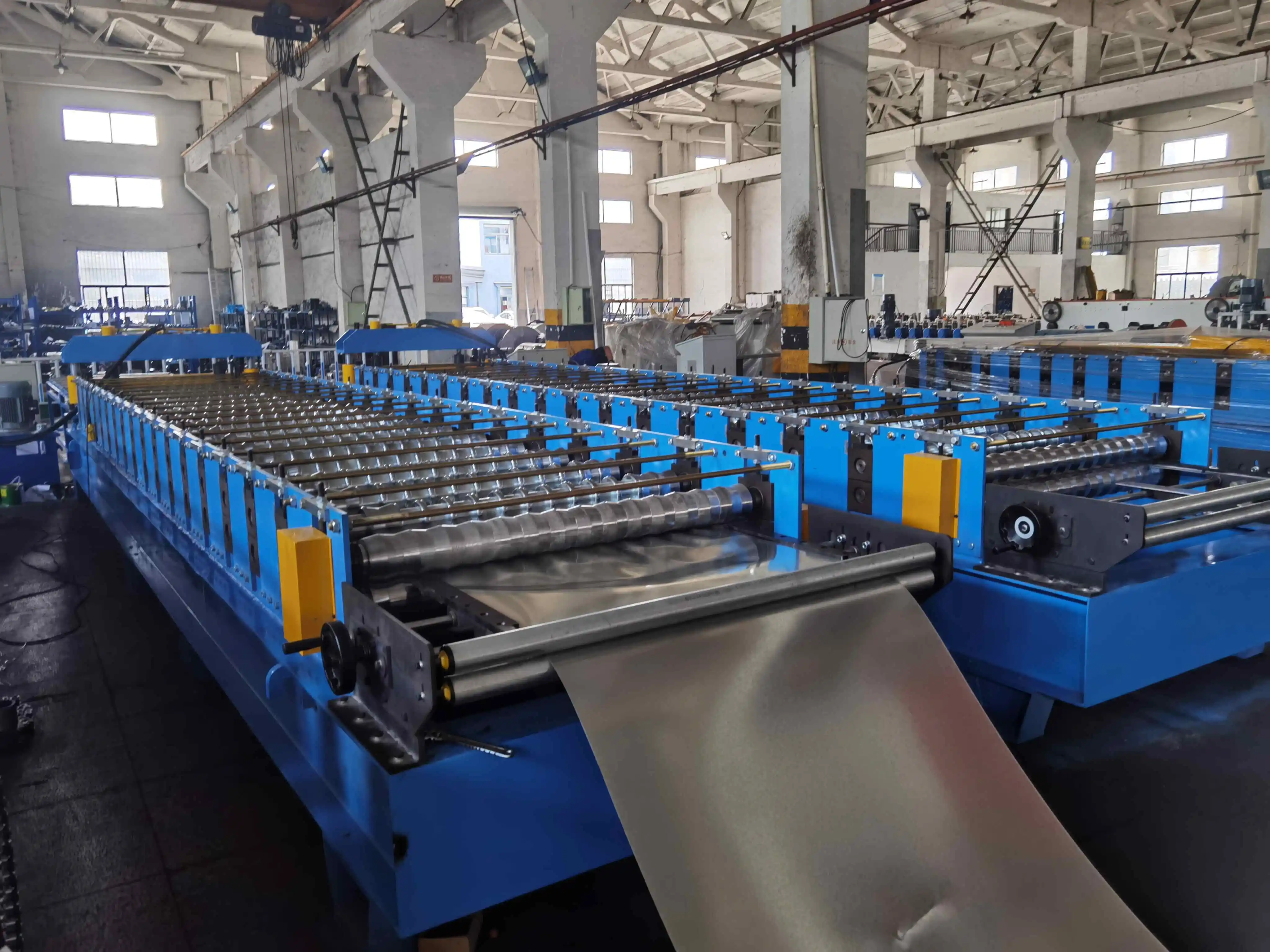

Feeding And Guiding

  1. Feeding Width:600mm to 1450mm
  2. Guiding Adjust: Manual rotate the side hand-wheel to adjust

Roll Forming Mill

  • Machine Structure: Adopt H beam steel welded frame as the machine base, steel plated welded on the machine machine as the roller stands
  • Roller Station/Forming Steps: 24 forming steps
  • Material Thickness: 16mm to 0.4mm
  • Shaft Material: 40Cr; Diameter: 80mm
  • Roller Material: 45 steel, fine machining;surface with 0.05mm chromeplated
  • Main Motor Power for Corrugated Sheet Machine: 5kw
  • Forming Speed: 10-15m/min
  • Drive: Chain drive
  • Speed Control: by Frequency Inverter

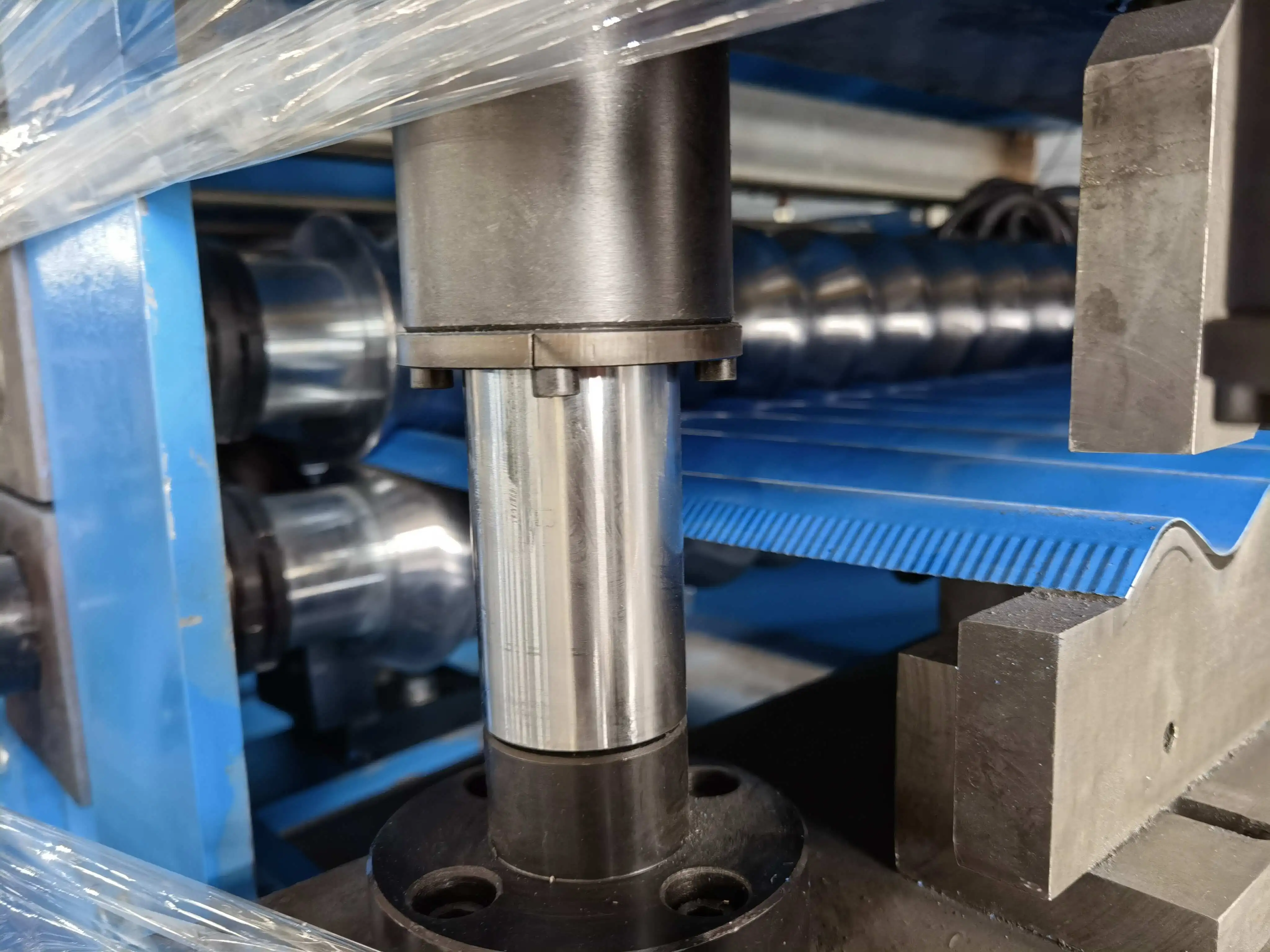

Hydraulic Cutting Device

  • Cutting Length And Quantity: Controlled by PLC control system, users input required length and quantity on touch screen
  • Material Of Cutting Mold: Cr12Mov, HRC 60-62
  • Cutting Length Measuring: Encoder measuring; Ormon Brand
  • Hydraulic Station Power:4kw
  • Tolerance Of Cutting Length: +/-5mm

Control System

  • User input the length and quantity of the product through touch screen, the touch screen will show the working status of the corrugated sheet machine
  • PLC Control Box: 700mmx300mm x 1000mm(L x W x H)
  • Control System: Panasonic PLC control system
  • Encoder: Omron Brand
  • Inverter: Yaskawa Brand
  • Pressure Of Hydraulic Station: ≧12Mpa
  • Current: 380V Direct Current, 50Hz, 3 Phase

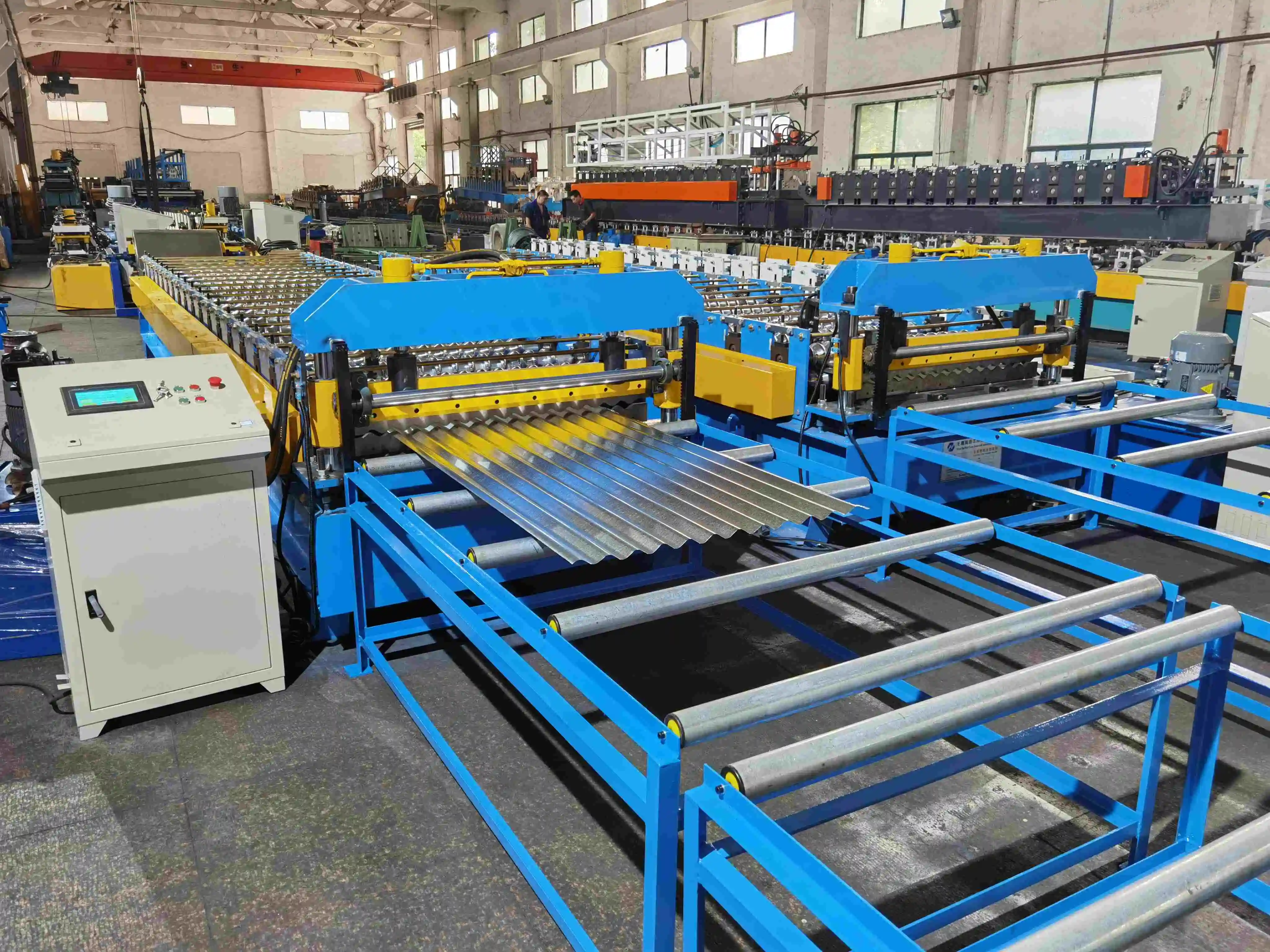

Collection Table

  1. Function: Support the final products
  2. Type: Angle steel welded frame, roll-path type
  3. Size: According to final design, 2 pieces

Hydraulic Station

  1. For decoiler mandrel expansion and tension, 4kw
  2. For cutting, 4kw
