STEEL ROLLING SHUTTER SLAT ROLL FORMING MACHINE

Steel Rolling Shutter Slat Roll Forming Machine is for producing roller shutter slats for Roller-Up Door System.

Introduction of Steel Rolling Shutter Slat Roll Forming Machine

What’s Rolling Shutter Slat and Door?

A Roller Shutter, Rolling Shutter Door is one type of door or windows shutter consisting of many horizontal slats( or panels) hinged together. The door is raised to open it, and lowered to closed it. Yon can open the door by manual or motor. The rolling shutter door have many applications, including doors for Vans, Kitchens, Warehouses, Factories. Ins some area of the world, roller shutters are used as a method of insulation(PU Rolling Shutter), can protect doors or windows against hail damage and can be made to withstand high winds. BELI® have full range of STEEL ROLLING SHUTTER SLAT ROLL FORMING MACHINE for different requirements.

Open Methods of Rolling Shutter Door

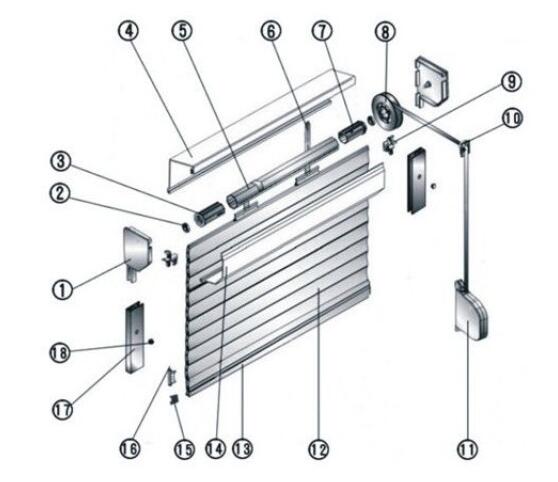

Manual up and down roller shutter door
Manual up and down roller shutter door
  1. Side Frame
  2. Ball Bearing
  3. End Cap
  4. Steel Box Top
  5. Octagonal Tube
  6. Security Spring
  7. Driving Bearing Head
  8. Strap Pulley
  9. Entry Guide
  10. Strap Guide
  11. Strap Coiler
  12. Rolling Shutter Slats
  13. End Slat
  14. Steel Box Bottom
  15. Stopper
  16. Slide Clip
  17. Guide Rail
  18. Guide Rail Cap
automatic roller up door
Automatic roller up door can up and down the door automatically.
  1. Side Frame
  2. Ball Bearing
  3. End Cap
  4. Steel Box Top
  5. Octagonal Tube
  6. Adapt Spring
  7. Anti Pushing Device
  8. Motor
  9. Entry Guide
  10. Motor Brackets
  11. Caps of Guide Rail
  12. Switch
  13. Rolling Shutter Slats
  14. End Slat
  15. Steel Box Bottom
  16. Stopper
  17. Slide Clip
  18. Guide Rail
BELI® have full range machine for the door system:
  • Box Cover Roll Forming Machine
  • Rolling Shutter Slat Roll Forming Machine
  • Octagonal Pipe Roll Forming Machine
  • Guide Rail Roll Forming Machine
  • End Slat Roll Forming Machine

M/C and Brief Introduction of Steel Rolling Shutter Slat Roll Forming Machine

  1. Uncoiler, 3 Ton Capacity, Manual or Electrical
  2. Roll Forming Machine, 16-18 forming steps, 5.5KW Sistems Motor, Siding Wall Mill or Chromed Stands Mill
  3. Cutting Device, Hydraulic or Saw Cutting.
  4. Punch Holes Device( Optional)
  5. Controlled System: Siemens or Panasonic PLC, Yaskawa inverter, Omron Encoder, Siemens or MCGS Touch Screen
  6. Hydraulic Station. 4KW
  7. Collection Table, Simple or Auto Stacker

BELI® HAVE SEVERAL DESIGNS OF ROLLING SHUTTER SLAT ROLL FORMING MACHINE, AND WE ALSO DO CUSTOMIZED PROFILE MACHINE. CALL US OR EMAIL US NOW!
