Box beam roll forming machine video will show you how the roll forming machine works for box beam. Believe Industry Company have different design of box beam roll forming machine for different budget:

Economic design
Automatically online seamed box beam roll forming machine
Intergrate box beam roll forming machine

Automatic box beam roll formnig machine

The box beam roll forming machine thrives on technical precision. Our 3-ton uncoiler ensures smooth material intake, while the feeder and guider maintain perfect alignment. The integrated leveler removes coil tension, preparing the steel for the pre-cutting device.

At the heart lies the automatic adjust roll forming part, offering unmatched versatility for various profile sizes. To ensure structural integrity, the straightener corrects distortion before the flying hydraulic cutting unit performs high-speed, precision cuts without halting production.

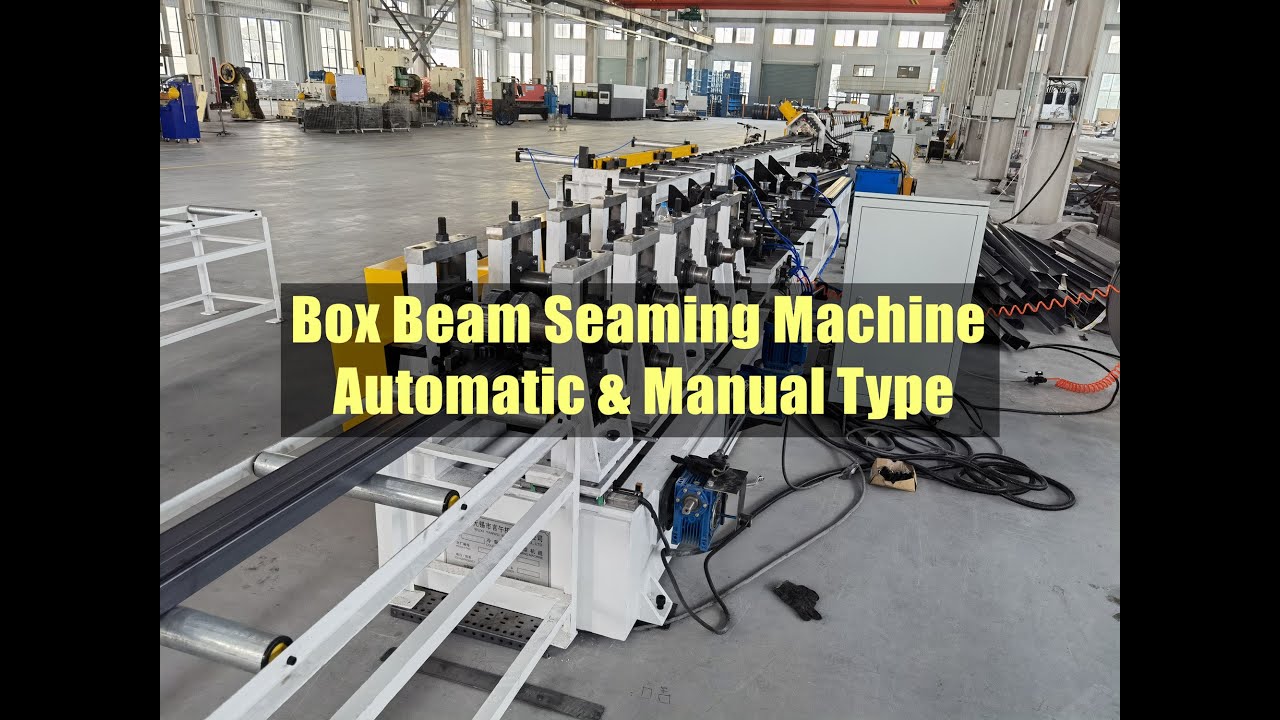

Finally, the roll forming seaming machine creates a high-strength lock, and the collection table organizes the final output. Every component of our box beam roll forming machine is built for durability, ensuring your factory achieves maximum uptime and superior product quality for demanding international markets.

Box Beam Line: Typical Ranges

Beam sections	50 x 50 to 140 x 100 mm typical rack beams, custom dies on request
Strip thickness	1.5 to 3.0 mm
Seam type	Seamed (snap-fit) or welded
Material grades	G300 to G550 steel
Line speed	6 to 12 m/min

Frequently Asked Questions

What is a box beam roll forming machine?

Short answer: a line that forms flat steel strip into closed rectangular beams for pallet racking. It bends, seams or welds, punches connector holes, and cuts to length in one pass.

Seamed or welded box beam: which one?

Short answer: seamed beams cost less and form faster, so they suit most standard racking. Welded beams give extra strength for very heavy loads.

Can one line make several beam sizes?

Short answer: yes, with quick-change cartridge rolls. Swap sections in a few hours and cover a full rack beam family on one line.

How does box beam compare with step beam?

Short answer: box beam is a closed section with higher torsional stiffness. Step beam is lighter and cheaper. We break down the full choice on our step beam vs box beam comparison page.

Get a Fixed Quote in 24 Hours

Send your profile drawing or section size. Our engineers reply with a layout, a firm lead time, and a fixed price.

Request a Quote

Whole Automatic Box Beam Roll forming Machine With Inline Welding Clips

The Automatic Box Beam Roll Forming Machine by Beli RollForming is an all-in-one solution for structural steel production. This line transitions seamlessly from raw coil to finished box beams welded with connectors.

The process begins with a heavy-duty uncoiler and coil car for efficient loading. The core Automatic Box Beam Roll Forming Machine section utilizes adjustable stands and a gearbox drive to form C-sections step-by-step. A precision flying cutting device ensures continuous production without stopping.

Post-cutting, a specialized system overturns and nests two C-sections, feeding them into the seamer. Once formed into a box beam, a conveyor moves the piece to the robotic station. Here, an industrial robot handles the beam while an automatic welder attaches two connectors with perfect accuracy. Finally, the robot stacks the finished products onto pallets.
