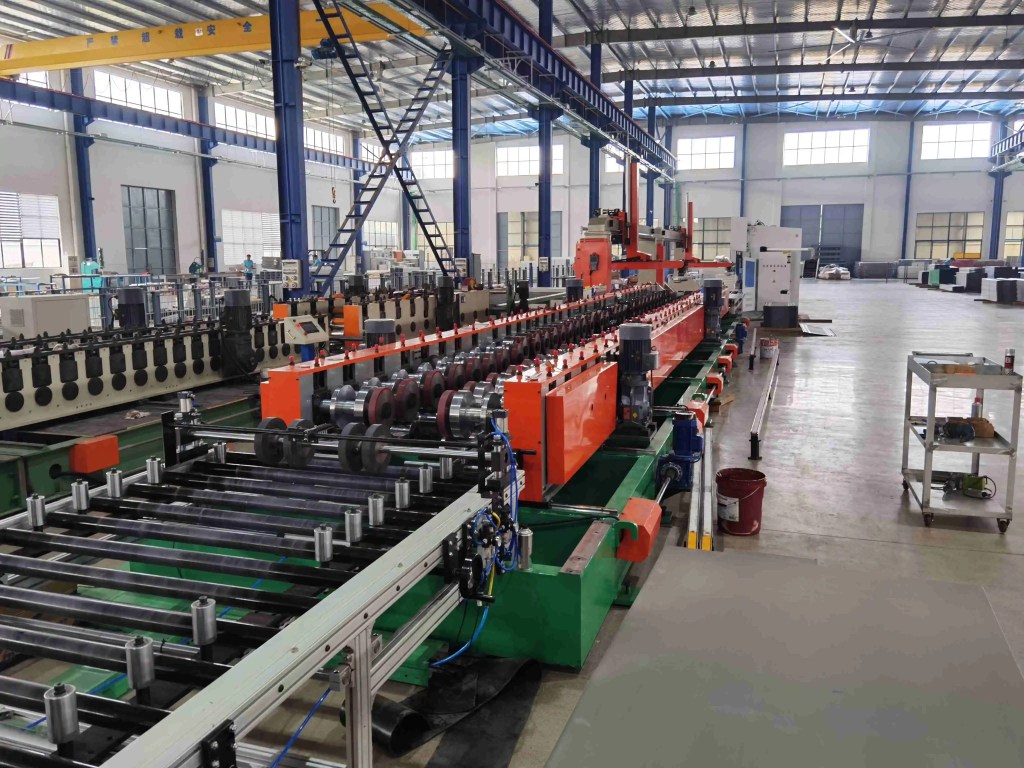

Automatic Size Change Cable Tray Machine: The 2026 Standard for Flexible Manufacturing

What is an Automatic Size Change Cable Tray Machine?

An automatic size change cable tray machine is an advanced roll forming system that utilizes PLC-controlled servo motors to adjust the width and height of forming rollers instantaneously. This technology allows manufacturers to produce multiple tray dimensions—ranging from 100mm to 600mm—on a single production line without manual tooling changeovers or significant downtime.

As the industrial sector moves toward “Just-In-Time” manufacturing, the automatic size change cable tray machine has become an essential asset. Unlike traditional fixed-profile machines, this system offers the versatility required for modern infrastructure projects. To understand the core mechanics of these systems, you can explore our comprehensive analysis of roll forming machine technology. Establishing a robust roll forming alignment and calibration routine is also vital for maintaining the longevity of these automated components.

Key Technical Specifications of Beli Rollforming 2026 Models

At Believe Industry, our 2026 models are engineered for high-volume environments where precision is non-negotiable.

Material Compatibility: Optimized for galvanized steel and stainless steel according to ASTM International A653 standards.
Thickness Range: Supports material gauges from 1.0mm to 2.0mm.
Adjustment Precision: Digital servo-driven movement ensures width tolerances within $\pm0.5mm$ .
Control Interface: Integrated HMI touch screen for real-time profile selection.

CNC Width Adjustment vs. Manual Spacers

Traditional cable tray machines require operators to manually add or remove spacers on the shafts—a process that can take several hours. Our CNC-driven automatic size change cable tray machine uses a “rafted” or “cantilevered” mill design to expedite transitions. This efficiency is a hallmark of metal roll forming machine 2026 advancements. By entering the desired dimensions into the PLC, the machine’s drive-side rollers move automatically via synchronized lead screws, drastically reducing the labor cost per unit.

The Role of Hydraulic Pre-punching in Flexible Production

A cable tray is only as good as its ventilation and mounting holes. In a flexible production line, the punching pattern must shift in perfect synchronization with the tray width. Our 2026 lines feature a multi-unit hydraulic punching station that adjusts alongside the rollers.

For high-speed lines, integrating a light gauge slitting line before the forming stage can optimize material usage. Furthermore, understanding how to operate a roll forming machine with automated punching is critical for operator safety and die longevity. Technical guidance on punching forces can be cross-referenced with the Precision Metalforming Association (PMA) design handbooks.

Maintaining 2026 Manufacturing Tolerances

Precision in roll forming is often threatened by “material memory” and springback. To combat this, Believe Industry utilizes:

Variable Bending Stages: Extra forming stations to ensure gradual deformation.
Straightener Units: A 7-roll or 9-roll leveler positioned after the decoiler machine to remove coil set.
Post-Cutting Accuracy: Hydraulic “cut-to-length” systems that use encoder feedback.

To ensure your automatic size change cable tray machine stays within tolerance, users should study how to fix bow and twist using the 3-axis Turk’s head at the exit point. For advanced calculations on material deformation, we recommend consulting The Fabricator’s guide to roll forming.

2026 Technical FAQ

Can this machine produce perforated and solid-bottom trays?

Yes, the punching station can be toggled via the HMI.

What is the maximum width of an automatic size change cable tray machine

Standard 2026 models reach 600mm, with custom orders reaching 900mm

Does the machine adjust for different flange heights?

Yes, 2026 models include vertical servo adjustment for flange heights up to 150mm.

Is the software compatible with Industry 4.0?

Our systems include Ethernet/IP connectivity for remote monitoring.

How do you handle residual stress

We utilize a pre-leveling unit and exit-side calibration rollers.

What is the lead time for a custom machine?

Typically 90 to 120 days from design approval.

Conclusion: Leading the 2026 Manufacturing Revolution

The transition to an automatic size change cable tray machine represents more than just a mechanical upgrade; it is a strategic shift toward Industry 4.0 readiness. By integrating CNC-driven width adjustments and synchronized hydraulic punching, Believe Industry ensures that manufacturers can meet the volatile demands of modern infrastructure without the bottleneck of traditional manual changeovers.

To maintain this momentum, we recommend a consistent internal linking strategy. Always ensure your technical deep-dives lead back to our comprehensive analysis of roll forming machine to solidify your site’s topical silo.

Optimize Your 2026 Production Strategy

Transitioning to automated production requires more than just a machine; it requires a precision-engineered solution tailored to your specific material flow.

Ready to eliminate manual changeover bottlenecks? Consult with a Believe Industry technical engineer today to see how our automatic size change cable tray machine can be customized to your specific material gauges, perforation patterns, and Industry 4.0 requirements.
