Cable Tray Roll Forming Machine

Cable Tray Roll Former is for producing various width of cable trays, cable tray covers, cable tray ladders as per requirements.

Technical Parameters of Cable Tray Roll Former

Cable Tray Line Layout

cable tray production line layout
Uncoiling– Leveling– Feeding and Punching– Roll Forming– Cutting– Collecting

Cable Tray Machine Components

  1. Hydraulic Uncoiler
  2. Leveling Machine
  3. Servo Feeder and Punch Press
  4. Roll Forming Machine
  5. Tracking Cutting
  6. Collecting Table
  7. Controlled Panel
  8. Hydraulic Station

Brief Introduction of M/C

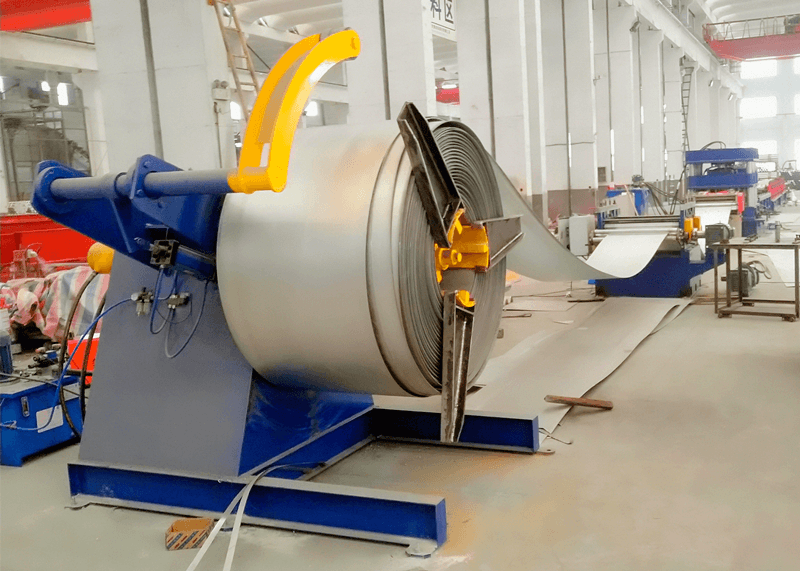

Hydraulic Uncoiler

8 Ton Uncoiler
  1. Loading Capacity: 8 Ton
  2. I.D of the coil: 460-520 mm
  3. O.D of the coil: Max 1500 mm
  4. Max Width : 1000 mm
  5. Hydraulic Expand Power: 5.5 KW
  6. Electric Uncoiling Power: 5.5 KW
  7. Uncoiling Speed: 15 m/min

Nine Rollers Leveler

leveling machine
  1. Max Width: 1000 mm
  2. Max Thickness: 3 mm
  3. Rollers Quantity: 9
  4. Motor Power: 4 KW
  5. Pinch Roll And Leveling Roll Adjust: Manually rotate the hand-wheel to adjust

Servo Feeder and Punch Press

punch press
  1. Servo Motor Power: 2.9 KW
  2. Feeding Speed: 20 m/min
  3. Punch Press Capacity: 160-350 Ton
  4. Punch Speed: 80 times/min
  5. Controlled PLC: Siemens
  6. Touch Screen:Siemens
  7. Punch Die: Cr12 Mov, HRC58-62

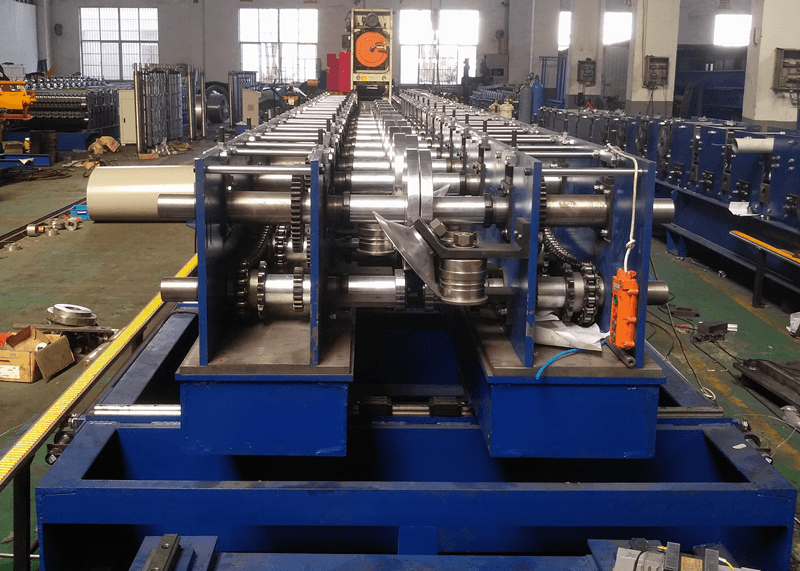

Cable Tray Roll Forming Machine

cable tray roll former
  1. Coil Thickness: 0.8-1.5mm
  2. Roll Stations: 20 Sets
  3. Shaft Material: 40Cr, 70mm in diameter, HB 220-260
  4. Roller Material: GCR15,quenching treatment, HRC58-62°
  5. Motor Power: 7.5KW* 2
  6. Forming Speed: 8-15 m/min
  7. Driven Method: Gear and Chain
  8. Height adjust power: 1.5KW* 2
  9. Width adjust power: 2.2KW
  10. Hydraulic Cutting Power: 5.5KW

Controlled Panel

  • Full line is controlled by PLC control system with touch screen and button operation to achieve the human-PLC interaction.
  • The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status , parameter and error indication etc.
  • Operation type: auto / manual two type switch.
    1. In manual position: can separately run each part of the machine.
    2. In auto position: can run the full line. The emergency stop ensure the safe of the equipment and operator.
  • Operation Language: English & Chinese
  • Entire Line Surveillance Function: to reach surveillance production line movement condition, realizes to various locations production condition surveillance.
  • Failure Detection Function: carries on to the production line signal succession examines, the checkup according to sequence, discovers the mistake, and giving the alarm to stop the machine.

Believe Industry Company have a full range of roll forming machines for cable tray systems. Contact us now for more information
