Corrugated sheets roll forming machine manufacturer.

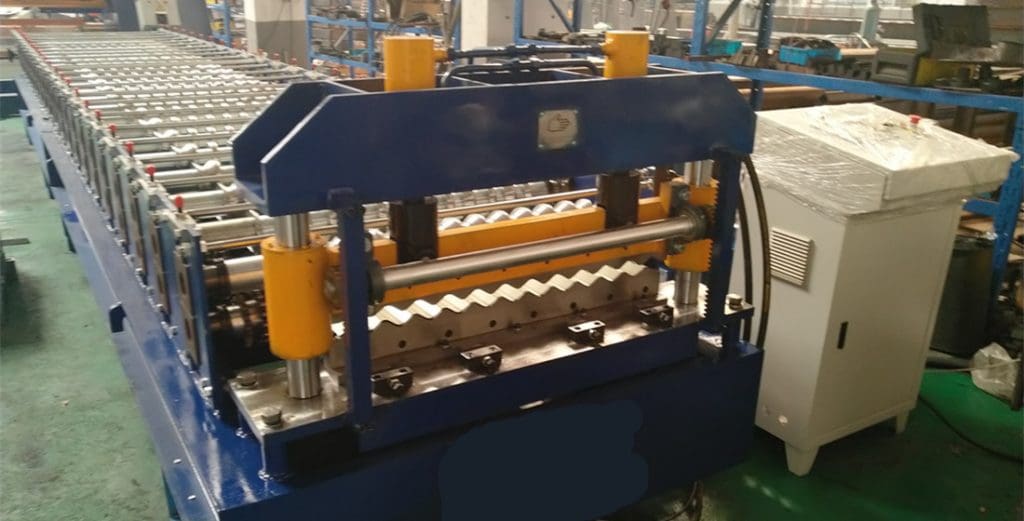

corrugated sheet roll forming


On April 17, the newest design Corrugated Sheets Roll Forming Machine is arrived Malaysia Customer’s factory. The customer is very satisfied with the machine quality.

Corrugated Sheets

What’s Corrugated sheet?

Corrugated Sheet, also called Corrugated Iron, is a building material composed of hot-dip galvanized steel, cold-rolled steel formed into corrugation.

Depth and Pitch

The Corrugated Sheets are introduced about Depth and Pitch. Depth is the height from the top of the wave to the bottom. And Pitch is the distance between between two waves. It is samed as common roofing sheets that the depth and depth of corrugated is uniform and easily transport. And overlap neatly when joining two sheets.

The Corrugated Sheets Roll Forming Machine exported to Malaysia. Which sheet depth is 18mm. While the pintch is 76mm. The Thickness is only 0.18mm.(refer to the right)

In 2017, We also exported a Mini Orb Corrugated Sheet Roll Forming Machine to another Malaysia customer. Which depth is only 6mm while pinch is 12mm.

Corrugated Sheets Roll Forming Machine

Features of Corrugated Sheets Roll Forming Machine

This machine is special because the pintch is only 76mm and uniform. So the machine can form different width material without any adjustment of the roll forming tools. except adjusting the guiding device or rollers.

The machine for Malaysia customer can form maximum with material is 1000mm to get 838 cover width corrugated sheets. And 914mm width to get 762mm width sheets which width is very famous in Southeast Asia

Machine Components for Malaysia Customer

  • 5 Ton Manual Uncoiler
  • Manual Pre-cutoff device
  • Roll Forming Mills
  • Hydraulic cutoff device
  • Controlled box with avitation plug
  • 4KW hydraulic station to ensure the cutoff speed
  • 2 pieces of 3 meters long collection table

Brief Introduction of The Machine

  • Material : 0.18-0.5 mm thickness, 500-1000 mm width
  • Motor Power: 5.5KW
  • Hydraulic Power: 4KW
  • Forming Steps: 22
  • Weight of the machine: 6.2 Ton

Believe Industry Company also supply Downspout&Gutter Roll Forming Machine, Garage Door Roll Forming Machine, Pallet Racking Roll Forming Machine, etc as per drawings.

Corrugated sheets roll forming machine
newest design Corrugated Sheets Roll Forming Machine is arrived Malaysia Customer’s factory
