Oil and Gas Roll Forming Machines: 5 Critical Profiles for 2026

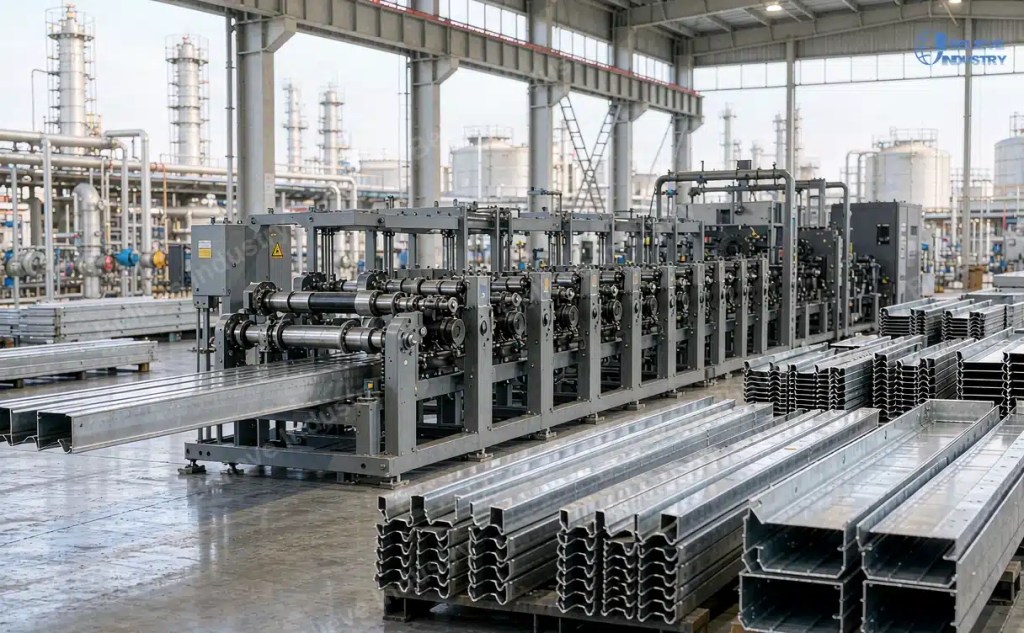

An oil and gas roll forming machine turns flat steel coil into the load bearing profiles that hold pipelines, cables, and platforms together in some of the harshest industrial environments on earth. Refineries, petrochemical plants, and offshore structures all depend on cold formed steel that resists corrosion and carries a certified load.

Oil and gas roll forming machine definition: a production line that cold forms galvanized or stainless coil into pipe support channels, cable trays, structural struts, and platform sections rated for flammable, wet, or chemically aggressive service.

Short answer: An oil and gas roll forming machine produces pipe support channels, heavy cable trays, structural struts, offshore sections, and corrosion-resistant profiles. These cold formed steel parts carry pipelines, power, and control cables in refineries, petrochemical plants, and offshore structures where corrosion and load margins decide equipment life.

The same cold forming mechanics apply across every profile, and they are explained in how a roll forming machine works. Place each profile inside the full roll forming machine line layout before you specify the equipment.

Why Oil and Gas Needs a Dedicated Roll Forming Line

Oil and gas sites are unforgiving. A pipe support that rusts through drops a loaded line onto a walkway. A cable tray that sags lets a power cable arc inside a vapour cloud. An oil and gas roll forming machine must hold tight tolerances on thicker, harder, and often stainless coil while punching holes that stay clean under high tonnage.

Standard construction lines struggle in this work. Stainless work hardens at the hole edge. Galvanized coating must survive the roll gaps without flaking. That is why plants specify dedicated machines with sealed bearings, harder rollers, and servo punching tuned for the grade.

An oil and gas roll forming machine typically produces the five profiles below, and each one is tuned to a different load and corrosion condition.

Profile	Carries	Typical material	Thickness
Pipe support channel	Pipeline weight and insulation	S355, A572 Gr 50	2.0 to 4.0 mm
Heavy cable tray	Power and instrument cables	S350GD, 304 or 316	1.5 to 2.5 mm
Structural strut	Racks, skids, frames	S355, A36	1.6 to 3.2 mm
Offshore section	Decks and walkways	S355 with duplex	2.5 to 6.0 mm
Corrosion resistant	Wet or chemical zones	Al Zn coil, 316L	1.5 to 3.0 mm

Profile 1: Pipe Support Channels

The first profile is the pipe support channel. It cradles process and utility pipelines on pipe racks, absorbing dead weight, insulation load, and thermal movement. An oil and gas roll forming machine forms these channels in S355 or A572 Grade 50, typically 2.0 to 4.0 mm thick, with slotted holes on a 2 inch or 50 mm pitch.

Punch tonnage rises fast with thickness. A 4.0 mm channel needs roughly double the force of a 3.0 mm one, so an oil and gas roll forming machine must budget tonnage for it. Our custom roll forming machine builds size change tooling so one line serves several channel widths without a long stop.

Profile 2: Heavy Cable Trays for Hazardous Areas

The second profile is the heavy cable tray for hazardous areas. It carries power and instrument cables above pipe racks and through process units. An oil and gas roll forming machine makes perforated, ladder, and solid bottom trays in S350GD or stainless 304 and 316, usually 1.5 to 2.5 mm thick.

Hazardous area trays must meet IEC 61537 load classes and IEC 60079 rules, so accuracy matters. Our cable tray roll forming machine and NEMA standard cable tray roll former guides cover the compliance detail. Sealed joints and solid bottoms lower ignition risk near vapour.

Profile 3: Structural Struts and Frames

The third profile is the structural strut. It frames pipe racks, equipment skids, and cable ladder supports across the plant. An oil and gas roll forming machine forms slotted strut in S355 or A36, 1.6 to 3.2 mm, with the same hole pitch as the pipe channels so the whole structure bolts together.

Our strut channel roll forming machine handles the punched strut that ties a plant together. Consistent hole pitch keeps field assembly fast and avoids site drilling, which is exactly where coating damage and corrosion normally begin.

Profile 4: Offshore Platform Sections

The fourth profile is the offshore platform section. Decks, walkways, and module frames on offshore structures need steel that survives salt, splash, and fatigue. An oil and gas roll forming machine forms these in S355 with duplex coatings, 2.5 to 6.0 mm, often with extra stiffening lips for rigidity.

Cold forming actually helps here. Rolling work hardens the corners, lifting local yield by 10 to 20 percent, and the detail is in our cold roll forming secrets article. Offshore sections live or die by coating continuity, so punch burr control is strict.

Profile 5: Corrosion-Resistant Profiles

The fifth profile is the corrosion-resistant section for wet and chemical zones. An oil and gas roll forming machine forms these in aluminium zinc coated coil or 316L stainless, 1.5 to 3.0 mm, where a single rust spot can start a leak path. Coating choice follows the corrosion class of the zone.

Standards bodies set the floor. ASTM defines the coating and material tests, and IEC covers cable containment in hazardous areas. MHI tracks material handling practice across the industry. Specify minimum values on every mill certificate, heat by heat.

Material and Coating Choices by Zone

Material and coating decide how long a profile lasts in service. An oil and gas roll forming machine runs best when the coating is fixed before the steel is ordered, because duplex and stainless need different rollers. The table maps common oil and gas zones to a sensible starting choice.

Environment	Base steel	Coating	Reference
Onshore refinery	S355 or A572 Gr 50	Hot dip galvanized 85 micron	ASTM A123
Coastal terminal	S350GD	Aluminium zinc 150g	EN 10346
Offshore splash zone	S355	Duplex stainless cladding	NACE MR0175
Chemical plant	316L stainless	Passivated, no coating	ASTM A480

Pick the coating before the machine. A duplex or stainless run needs harder rollers and slower passes than galvanized carbon steel, and the roll forming machine line layout must allow washdown where chemical splash is likely.

How to Choose an Oil and Gas Roll Forming Machine

Choose the line by profile count, material, throughput, and environment. One line per profile with quick change tooling keeps changeover short. Stainless and harder grades need servo punching and tougher rollers. Cable tray lines run 15 to 30 m/min, while heavy sections run 8 to 15 m/min.

An oil and gas roll forming machine is a capital decision, so score each bid against the factors below before you commit.

Factor	Recommendation
Profile count	One line per profile, quick change tooling
Material	Servo punch for stainless, harder rolls
Throughput	15 to 30 m/min trays, 8 to 15 heavy
Environment	Sealed bearings, washdown options

Throughput and coating proofing drive cost more than profile shape. Sealed bearings and washdown options matter in chemical plants. Talk to a builder who has shipped lines into refineries, not just general fabricators, because oil and gas tolerances and traceability are stricter than commercial work.

FAQ

Q: What profiles does an oil and gas roll forming machine make?

A: It makes pipe support channels, heavy cable trays, structural struts, offshore platform sections, and corrosion-resistant profiles. These cold formed steel parts carry pipelines, cables, and structural frames in refineries, petrochemical plants, and offshore facilities.

Q: Which steel grade suits oil and gas roll formed profiles?

A: S355 or A572 Grade 50 covers most onshore work at 345 MPa yield. Offshore and chemical zones add stainless 316L or duplex coatings. Yield strength, not tensile, sets the load rating, so specify minimum values on the mill certificate.

Q: Why are cable trays critical in hazardous areas?

A: Oil and gas sites concentrate flammable vapour. Cable trays must hold power and instrument cables without failure and meet IEC 61537 load classes and IEC 60079 hazardous area rules. Heavy duty trays with solid bottoms and sealed joints reduce ignition risk.

Q: How thick should pipe support channels be?

A: Pipe support channels normally run 2.0 to 4.0 mm in S355 or A572 Gr 50. Larger bore pipes with insulation push toward 4.0 mm. Thickness sets both load capacity and punch tonnage, so match it to the machine tonnage budget.

Q: What coating resists corrosion best offshore?

A: Duplex stainless and 316L lead offshore. For coated carbon steel, hot dip galvanizing at 85 micron plus a barrier topcoat works in splash zones. In chemical plants, 316L often runs uncoated. Tie coating choice to the corrosion class of the zone.

Q: How fast can an oil and gas roll forming machine run?

A: Cable tray lines reach 15 to 30 m/min. Heavy pipe support and offshore sections run 8 to 15 m/min because thicker material and harder grades need more roll passes and punch force. Servo flying shear keeps holes accurate at speed.
