Steel Tile Roll Forming Machine, Believe Industry Company

Steel Tile Roll Forming Machine

Price :

$42,000.00 $38,000.00

Description

Steel Tile Roll Forming Machine

Steel Tile Roll Forming Machine is a whole automatic line to produce steel tiles. The workers only need input the desired data( length, quantity, step length) on the touch screen.

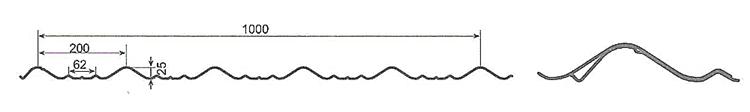

Profile Drawings of Steel Tiles

Type: 25-200
Type: 35-192
Type: 28-176
Type: 38-200 steel tiles

 Layout of Steel Tile Roll Forming Machine

Steel Tile Roll Forming Machine process
The layout of steel tile roll forming machine is uncoiling, Roll Forming , Punching Step, Cutting Off, Collecting

Technical Parameters of Steel Tile Roll Forming Machine

5 Ton Hydraulic Uncoiler

  1. The feeding unit is mechanically separated from the rest of the production line
  2. Coil width:600-1250 mm
  3. I.D  of coil:  480 mm to 520 mm
  4. Maximal O.D:1200mm
  5. Maximum coil weight: 5000 kg;
  6. Uncoiling speed: 0-15m/min adjustable
  7. Motor power: 5.5KW AC motor
  8. Hydraulic power: 4kw
  9. Speed controlled by frequency converter brand: Yaskawa
Automatic Hydraulic Uncoiler
Hydraulic expansion and electric uncoiling, whole automatically

Roll Forming Machine

  1. Machine Structure: Adopt H beam steel and wall panel welded, ASTM 1045 material
  2. Rollers Station: 18stations
  3. Shaft Diameter : 76mm
  4. Material of Shaft: High quality 45# Steel
  5. Rollers Material : 45# Steel, chroming of 0.05mm thickness
  6. Main Motor Power: 7.5kw
  7. Power Transition: Chains and gears
  8. Speed Control: By frequency converter
  9. Forming Speed: 3-4m/min (exclude punching and cutting)
  10. Total weight: About 8.5 tons
steel tile roll forming
Steel Tile Roll forming Mill. Quality design and safety, the rollers surface is polished and chromed

Punch Steps  and Cutoff Unit

  1. The punches will be connected to a single hydraulic unit. This unit consists of tank, motor, pump, pressure control valves, pressure gauges, solenoid valves and hydraulic hoses. All of these are designed to operate safely at the required operating pressure.
  2. Material of the punches: Cr12,HRC 58-62, chrome coated
  3. Hydraulic power: 7.5kw
  4. Working pressure: 12-16 Mpa
  5. Punching Moulds: 1 group
  6. Cutting mould: 1 group
  7. We adopt the cutting device and punching mould in one device.

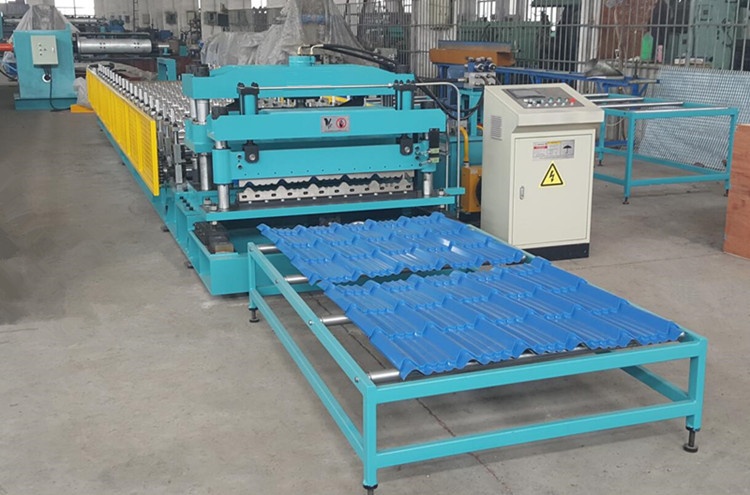

steel tile roll forming machine
Punch and Cutting Unit for punch the sheet into tiles and then cut off the tiles into desired length



Hydraulic station

  1. Hydraulic Motor power: 7.5kw
  2. Working pressure: 12-16 Mpa
  3. Solenoid valve: Beijing Huade
  4. Hydraulic oil: 46# hydraulic oil

Control System

  1. The worker input the length and quantity of the product through touch screen, total 20 groups, the touch screen will show the working status of the machine.
  2. Computer Control System: Panasonic PLC or Siemens
  3. Encoder: and limit switch: Omron brand
  4. Frequency Converter: Yaskawa
  5. Touch Screen: MCSG
  6. Controlled System Power: Overloadprotection
  7. Voltage: 415, 50Hz, 3Phase

Believe Industry Company also have roll forming machines for ,  Floor Deck, Downspout, Upright Rack. And also custom roll forming machine is designed for special requirements.

View more for the introduction of metal tile roll forming machine





Additional information

Weight 85000 kg
Dimensions 9500 × 1500 × 1500 mm
