686 IBR Sheet Roll Forming Machine, Believe Industry Company

686 IBR Sheet Roll Forming Machine

Price :

$22,000.00 $21,500.00

Description

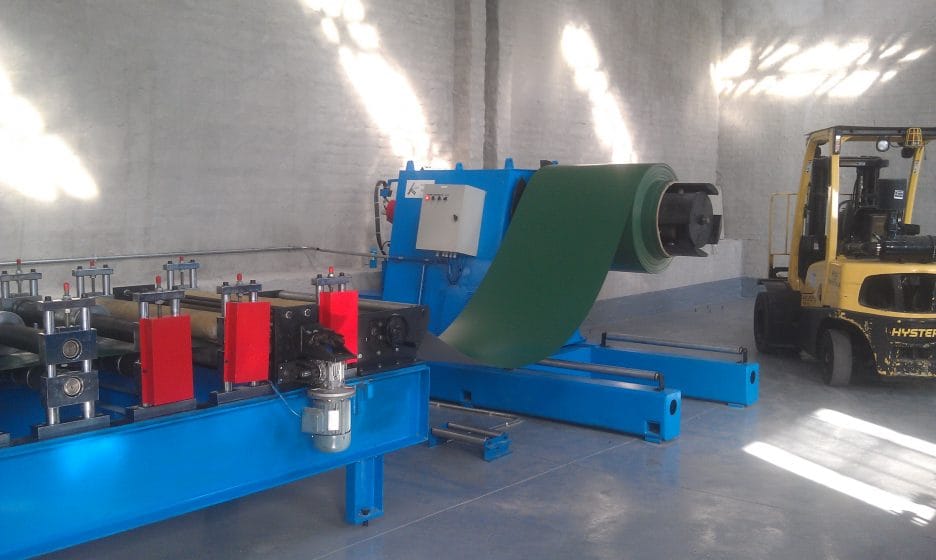

686 IBR Sheet Roll Forming Machine

686 IBR Sheet Roll Forming Machine is a whole line to produce IBR sheets as desired length.

IBR sheet drawing

IBR sheet
686 type IBR sheet is while used in South Africa

Technical Specifications of 686 IBR Sheet Roll Forming Machine

Layout of IBR Sheet Roll Forming Machine

layout of ibr sheet roll forming machine
Uncoiling–Feeding and Guiding–Roll Forming–Cutting–Collecting

M/C of 686 IBR Sheet Roll Forming Machine

  1. Hydraulic Uncoiler
  2. Roll Forming Machine
  3. Cutoff Unit
  4. Collection Table
  5. Hydraulic Station
  6. Controlled Box
  7. Auto Seamming Machine

Specifications of 686 IBR Sheet Roll Forming Machine

5T hydraulic Uncoiler

  1. The feeding unit is mechanically separated from the rest of the production line
  2. Coil holder: Hydraulic mechanism for securing the coiled steel in the device, suitable for the required coil weight;
  3. Steel coil width:914 MM
  4. Internal diameter of coil: Variable, from 480 mm to 560 mm
  5. Maximal out diameter:1200mm
  6. Maximum coil weight: 5000 kg;
  7. Working speed: 0-15m/min adjustable
  8. Main motor power: 5.5KW AC motor

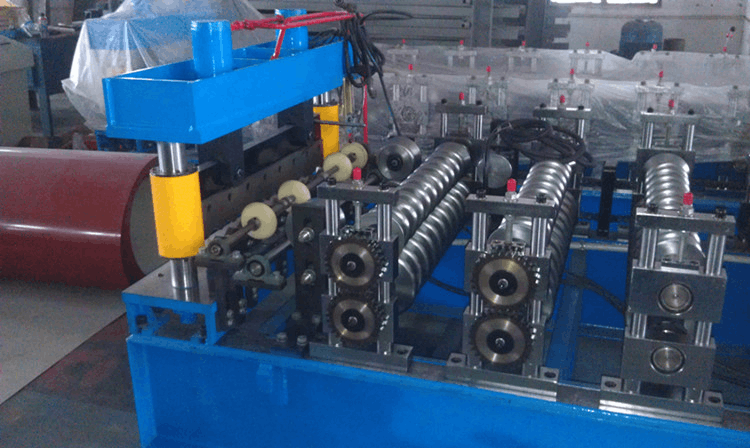

Roll Forming Machine

  1. Machine base frame adopt H beam and 20 mm steel plate welded
  2. Roll station: 18
  3. Roller material:45#(ASTM 1045) steel chrome plated surface with hardness 58-62 degree ,CNC,
  4. Shaft diameter: ¢80mm, 45#(ASTM1045) steel
  5. All spacers surface are chromed
  6. Main motor power:7.5KW
  7. Transmission: 1.0 inch chain
  8. To avoid accidents,all of drive part adopt protect cover
  9. Line speed: Max. 15m/min, not include cutting.
  10. To avoid accidents,all of drive part adopt protect cover

Cutting Device

  1. Cutting type: Hydraulic, connect with the punching hydraulic unit
  2. Material of blade:Cr12 with heat treatment 58-62
  3. Length measuring: Automatic encoder length measuring, brand: Omron
  4. Tolerance of length: +/- 1.5mm each piece end product

Hydraulic station with cooling fan

  1. Hydraulic power: 4kw
  2. Working pressure: 12-16Mpa adjustable
  3. Hydraulic oil: 46# hydraulic oil
  4. Solenoid valve: 2 groups

Output table

  1. Table for reception of the cut profiles: With roller transporter allowing to unload the cut profile freely
  2. Unloading of the finished products from the table of cut profiles: Manual
  3. Frame: Welding by tube
  4. Size: About 2.0m long*0.6mwide*0.9mhigh
  5. One out table with few support roller (base on final design)
  6. Supporter roller: ASTM 1045 with chrome
  7. Diameter of rollers: 55mm
  8. Color: Blue or base on customer request

Control System

  1. Automatic stopping of the equipment after completion of the cutting program
  2. Operating system language: English and Chinese.
  3. Voltage, frequency, phase: 415V, 50 HZ, 3Phase
  4. Length inaccuracy can be amended easily.
  5. Control panel: Button-type switch and touch screen(MCGS)
  6. Unit of length: Millimeter (switched on the control panel)
  7. PLC brand: Panasonic
  8. Frequency converter brand: Yaskawa
  9. Omron encoder
  10. Main electric components: Schneider
  11. Adopt aviation connect plugs for easy connect the wires

Believe Industry Companyhave different designs of IBR sheet roll forming machine, and also have series kinds of custom roll forming machine. Contact us now.









Additional information

Weight 6500 kg
Dimensions 7500 × 1200 × 1200 mm
