Uni Strut Channel Roll Forming Machine

A Uni Strut Channel Roll Forming Machine takes flat metal coils and bends them into U-shaped strut channels. These machines are very important for modern factories. Furthermore, they work automatically and make parts incredibly fast. Because they bend the metal smoothly, the final product is very strong. Consequently, top factories use this machine to make metal supports for builders all over the world.

🏭 What is a Uni Strut Channel Roll Forming Machine?

This machine is a large factory tool that turns flat steel into strong support beams. Initially, the machine carefully unrolls a heavy coil of flat steel. Next, metal rollers bend the steel step-by-step. Then, it punches holes if the design needs them. Finally, it cuts the finished metal to the exact length. Because the machine does all of this automatically, factories can make parts perfectly and quickly.

⚙️ What Does This Machine Make?

Strut Channel is a standard cold roll formed steel used in electrical industry or constructions for structural support. Which is usually formed from metal coil strips, roll formed into an open channel section with lips to provide additional stiffness. The basis strut channel sizes are: 41*41. 21*21, and also some customized shapes. More information of Strut Channel, please visit Wiki.

Believe Industry Company Strut Channel Roll Forming Machine is to form 1.5mm-3.0mm strut channels with various types. The machine is able to produce 3 or more types of strut channel by adjust the roll forming mould. We have 2 design of the adjust method:

Adjust the spacers to achieve the type changing. The workers need adjust all the spaces of top and bottom rollers. the change over time is at least 6-8 hours.

Replace the whole roll forming mill. The roll forming mill will fastened on a mill base, and easy to replace. The changeover time is within 2 hour. View more.

Strut Channel Dimensions

🏗️ How Do Builders Use Strut Channels?

Strut channels from a Uni Strut Channel Roll Forming Machine are used everywhere in construction and manufacturing.

Electricians: They use them to hang heavy cable trays from ceilings.
Plumbers: They use them to bolt large pipes firmly to walls.

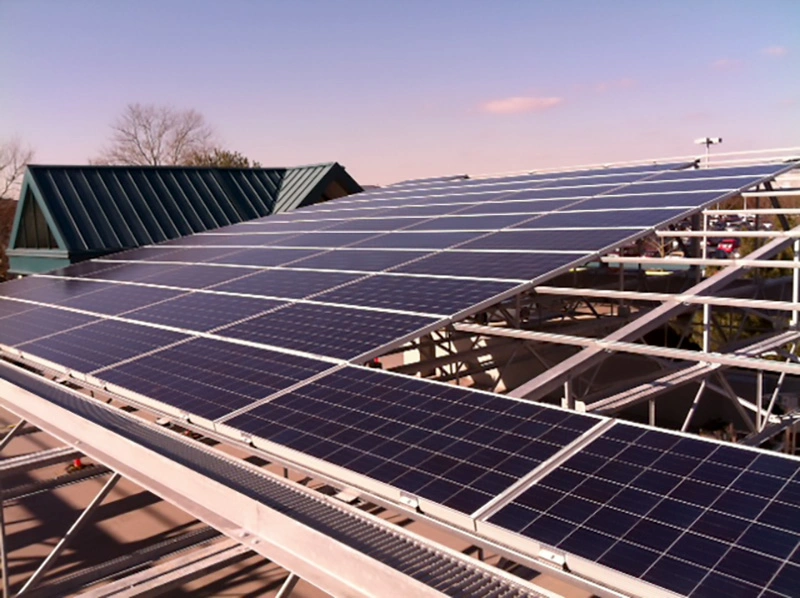

Solar Workers: They use them to build safe, weather-proof frames for solar panels.
HVAC Technicians: They use them to safely support heavy air conditioning and ventilation ducts.
Warehouse Builders: They use them to construct strong, adjustable shelving and storage systems.

To learn more about how these machines fit into a factory, read this Comprehensive Analysis of Roll Forming Machine.

🤝 Why Choose Believe Industry for Your Machine?

Choosing the right partner for your Uni Strut Channel Roll Forming Machine is critical for long-term success. Believe Industry is fully engaged to design and manufacture roll forming machines exactly as per your requirements. Furthermore, our mission is to help you easily purchase customized coil process equipment. Therefore, you can be up and running on the steel factory in no time at all. Moreover, delivering a complete “One Stop Service” is our ultimate goal.

Additionally, our machines easily outperform standard market alternatives. Based on our latest equipment comparison, we offer several massive advantages:

Control System: We use an Advanced PLC from Siemens. Conversely, competitors use a simple Basic PLC.
Transmission: We build with a tough Heavy Duty Gear Box Drive. Meanwhile, competitors rely on Chain or small gear box.
Roller Material: We use extremely hard Cr12 Quenched steel. Competitors use GCR 15 Steel.
Cutting Precision: We guarantee tight ± 1.0 mm accuracy. However, competitors only offer ± 2.0 mm.
Warranty: We proudly provide a full 2-Year warranty. Competitors only give you 1 Year.

Consequently, you always get much better industrial value with our heavy-duty machinery.

Believe Industry vs Competitors

Comparison	Believe Industry	Competitor A (Standard)	Competitor B (Premium)
Price Range	$60, 000 -$ 200,000	20,000-100,000	100,000-300,000
Forming Speed	0-30 m/min	0-20 m/min	0-40 m/min
Warranty	3 years full line, 5 years rollers	1 year full line	2 years full line
Lead Time	60-75 days	60-90 days	90-120 days
Software Support	German COPRA 3D simulation	Basic CAD	Advanced simulation
On-site Service	✅ Included	⚠️ Extra charge	✅ Included
Roller Material	Vacuum-quenched steel	Standard heat-treated	Imported premium steel
Roller Change Time	30 minutes	60 minutes	20 minutes
Technical Training	✅ On-site + remote	⚠️ Video tutorial	✅ On-site
Spare Parts	48-hour shipping	7-14 days	72 hours

Strut Channel Loading Capacity Calculator

Strut Series Loading Configurator

Select Professional Profile

Choose a profile to load its specific structural constant. Logic follows AISI ASD standards with a 1.67 safety factor.

↓↓↓↓↓↓↓↓

1. Project Parameters

Clear Span (Feet)

Load Distribution

🏭 Punching Methods for Strut Channel Roll Forming Machines

💧 1. Hydraulic Punch

🛠️ Overview: A cost-effective solution featuring easily interchangeable molds for varying hole patterns.
⏱️ Speed: 3–5 m/min (can be increased by adding a hydraulic accumulator).
🎯 Best For: Budget-conscious operations where production speed is a secondary priority.

🔄 2. Rotary Punching

⚙️ Overview: A strip-driven, dual-roll system synchronized with the roll forming mill.
⚡ Speed: Up to 30 m/min.
✅ Pros: Less expensive than mechanical presses, runs at high roll forming speeds, and repeatedly produces patterns within tight tolerances.
❌ Cons: Fixed hole positions; requires a complete roller change to alter the hole pattern.

🏆 3. Mechanical Punch Press (Recommended)

🎯 Overview: The optimal choice for high-speed, precision punching with varying hole patterns and positions. It utilizes a servo-feed system and limit switches to synchronize perfectly with the uncoiler, leveler, and mill.
🚀 Speed: 20+ m/min.
📊 Key Specifications:
- 🏗️ Press Capacity: 110 Ton (Main Motor: 11KW x 4)
- ⚙️ Stroke Output: 60–90 S.P.M. (Stroke: 80mm)
- 📏 Material Capacity: Width up to 200mm | Thickness up to 3.2mm
- 🤖 Servo Feeding System: 1.3KW motor | Max feeding speed: 200m/min
- 📐 Tooling Dimensions: Die Height: 410mm | Slide Adjustment: 80mm | Bolster Area: 1150 x 600 x 110mm
- 🛡️ Die Cushion: 6.3 Ton Capacity | 80mm Stroke

Brief Technical Parameters

Equipment Module	Specification Parameter	Value / Description
Uncoiler & Leveler	Structural Design	Integrated compact body design to optimize factory floor space.
Uncoiler & Leveler	Synchronization	Limit switch control loop to ensure synchronous speed with punch press and mill.
Uncoiler & Leveler	Load Capacity	3 Tons (3,000 kg)
Uncoiler & Leveler	Coil Inner Diameter (ID)	500 mm – 600 mm
Uncoiler & Leveler	Coil Outer Diameter (OD)	Up to 1,500 mm
Uncoiler & Leveler	Uncoiler Motor Power	2.2 kW
Uncoiler & Leveler	Leveler Motor Power	3.0 kW
Uncoiler & Leveler	Leveling Rollers	9 precision rollers (4 upper, 5 lower) for optimal material flattening.
Uncoiler & Leveler	Maximum Feeding Speed	Up to 40 m/min
Roll Forming Mill	Machine Base	Heavy-duty welded H-beam steel base for maximum stability and vibration reduction.
Roll Forming Mill	Forming Stands	Premium cast iron construction.
Roll Forming Mill	Roll Stations	20 distinct forming stages.
Roll Forming Mill	Roller Material	GCr15 bearing steel, CNC-machined, quenched, and tempered (HRC 58-62°).
Roll Forming Mill	Shaft Specifications	ASTM 1045 medium-carbon steel; Ø 75 mm diameter.
Roll Forming Mill	Main Motor Power	45 kW
Roll Forming Mill	Transmission System	Heavy-duty gearbox transmission to ensure high-torque, slip-free power delivery.
Roll Forming Mill	Maximum Line Speed	Up to 40 m/min
Roll Forming Mill	Safety Features	Fully enclosed safety guards covering all drive and transmission components.

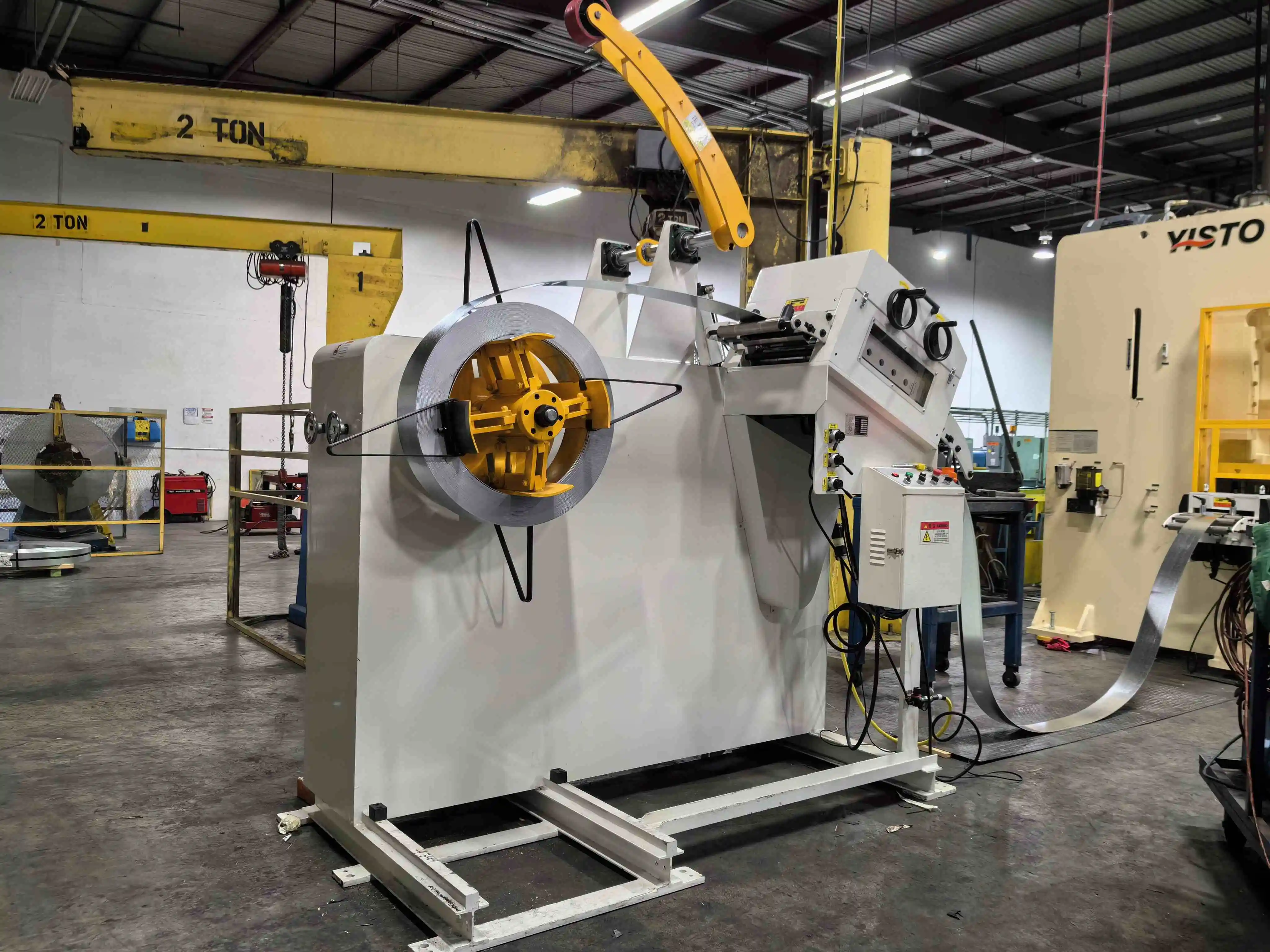

Strut channel roll forming machine uncoiler and sheet metal leveler prepares raw material coil — Precision Start: The automatic hydraulic uncoiler and leveler station ensures flat, stress-free metal sheets, ready for the Beli strut channel roll forming machine production process.

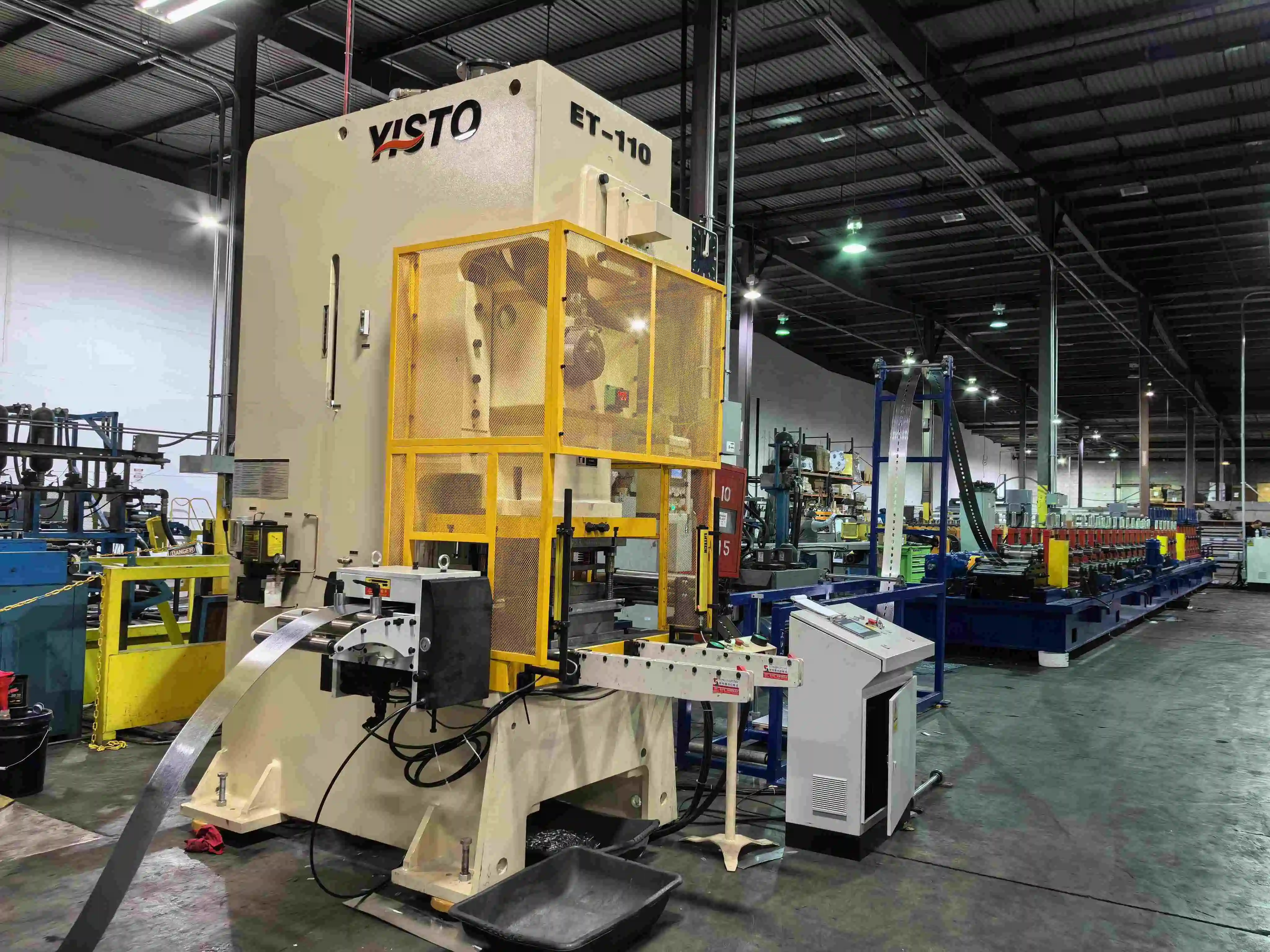

Servo feeder and high-speed punch press for pre-punching holes on the strut channel roll forming machine line — High-Speed Accuracy: This integrated Servo Feeder and Punch Press module delivers precise hole punching for various strut channel profiles before the material enters the main strut channel roll forming machine.

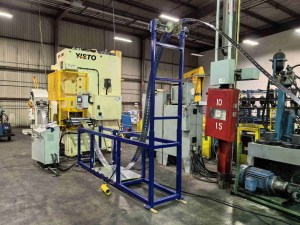

Accumulator loop table ensures non-stop production continuity in the strut channel roll forming machine process — Seamless Operation: The Accumulator provides a continuous loop of material, allowing the strut channel roll forming machine to maintain non-stop production even during coil changeovers, maximizing efficiency.

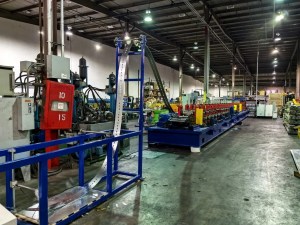

The roll forming feeder and guiding system for the Beli strut channel roll forming machine — Guided Precision: The dedicated Roll Forming Feeder and guiding mechanism ensures the perfectly prepared strip steel is accurately and consistently fed into the strut channel roll forming machine main station.

High-speed flying saw cutting unit finalizes the finished channel product from the strut channel roll forming machine — Clean Cut, Zero Downtime: The hydraulic post-cutting flying saw system cuts the strut channel to the precise required length without stopping the main strut channel roll forming machine, guaranteeing maximum productivity.

Complete view of the Beli automatic strut channel roll forming machine production line for metal framing — End-to-End Solution: The complete Beli strut channel roll forming machine line, engineered for high efficiency and producing superior quality strut channels (e.g., Unistrut type, C-channel) for global export.

🚀 Conclusion & Next Steps

A Uni Strut Channel Roll Forming Machine is a very smart buy for metal factories. It works fast, cuts waste, and makes perfectly shaped parts. Plus, it can easily handle thick, heavy steel every single day.

Are you ready to make more strut channels? Contact the expert team at Believe Industry today. We will help you pick the perfect machine for your factory and help you install it anywhere in the world!

❓ Frequently Asked Questions

What metals can a Uni Strut Channel Roll Forming Machine use?

A Uni Strut Channel Roll Forming Machine mostly uses galvanized steel and carbon steel. It can also use stainless steel. It easily bends metal that is 1.5mm to 2.5mm thick.

How fast is the Uni Strut Channel Roll Forming Machine?

A normal Uni Strut Channel Roll Forming Machine runs at 10 to 15 meters per minute. The speed changes slightly depending on how many holes it needs to punch.

Believe Industry also have speed solution, which is up to 50-60m/min

Does the Uni Strut Channel Roll Forming Machine punch holes?

Yes, the Uni Strut Channel Roll Forming Machine punches holes automatically. It has a built-in press that makes holes before the metal is bent into a U-shape.

Is a Uni Strut Channel Roll Forming Machine hard to use?

No, a Uni Strut Channel Roll Forming Machine is easy to use. The worker just types the length and amount into the touch screen. The machine does the rest.

Why does a Uni Strut Channel Roll Forming Machine need oil or liquid?

A Uni Strut Channel Roll Forming Machine needs liquid to stay cool and slippery. This stops the rollers from scratching the metal. It also helps the machine last longer.

Can a Uni Strut Channel Roll Forming Machine make different sizes?

Some machines only make one size. However, a modern Uni Strut Channel Roll Forming Machine can be adjusted. Workers can change parts to make different sizes, like 41x41mm and 41x21mm.

How big is a Uni Strut Channel Roll Forming Machine?

A full Uni Strut Channel Roll Forming Machine is very long. It usually needs about 15 to 40 meters of floor space. You also need extra room for forklifts to bring in the heavy steel coils.
