AG Panel Roll Forming Machine

AG Panel Roll Forming Machine is a whole automatic line for AG Panel Metal Roof for USA Market.

AG Panel Roll Former Machine Specifications

What’s AG Panel?

AG Panel Metal Roof, a low depth profile, economical panel solution for residential, commercial and agricultural roofing or post frame buildings.

AG panels are a very durable, high-value metal roofing system. Manufactured from 0.3-0.8mm thickness material.

Tuff-Rib Panel is a light gauge throuh fastener roof tile and wall panel that is a great choice for commercial, industrial and agricultural.

  1. Fastener Design
  2. Standard and custom trim available
  3. Excellent for roof and siding
  4. Excellent for portable building.

AG Panels are low ribs. Believe Inudustry Company have a full range of AG Panel Roll Formers for different requirements of AG panles.

AG Panel Metal Roof
Profile drawings of AG Panles

AG Panel Machine Components

AG Panel Metal Roofing Roll Forming Machine is consisit of:

  1. 5 Ton Uncoiler: Manual or Automatic
  2. Feeding and Guiding Device
  3. Pre-shearing device is an option( Manual, electric or hydraulic)
  4. Roll Forming Machine(We are offering different design of roll forming stands)
  5. Cutting Device( Hydraulic or Electric)
  6. Controlled Panel
  7. Hydraulic Station
  8. Collection Table or Auto stacker.

Brief Technical Parameters

  1. Work Flowing: Uncoiling- Feeding and Guiding- Roll Forming- Cutting- Collecting– Packaging
  2. Uncoiler Capacity: 5 Ton
  3. Coil Thickness: 0.3-0.8 mm
  4. Coil Material: PPGI, GI, Alzn, SS, Alu.
  5. Roller Material: 40 CR, HRD and Chromed
  6. Forming Stands: 18
  7. Shaft Material: 42 CR, 75 mm diameter
  8. Motor Power: 7.5kW
  9. Hydraulic Cutting Power: 4 KW
  10. Transmission: Chain and Gear
  11. PLC Brand: Siemens
  12. Encoder: Omron
  13. AG Panel Machine Speed: 15-20 m/min

Believe Industry Company have a full range of Roll Forming Machine for AG Panels, Metal Roofing Sheets. Contact us now for more information.

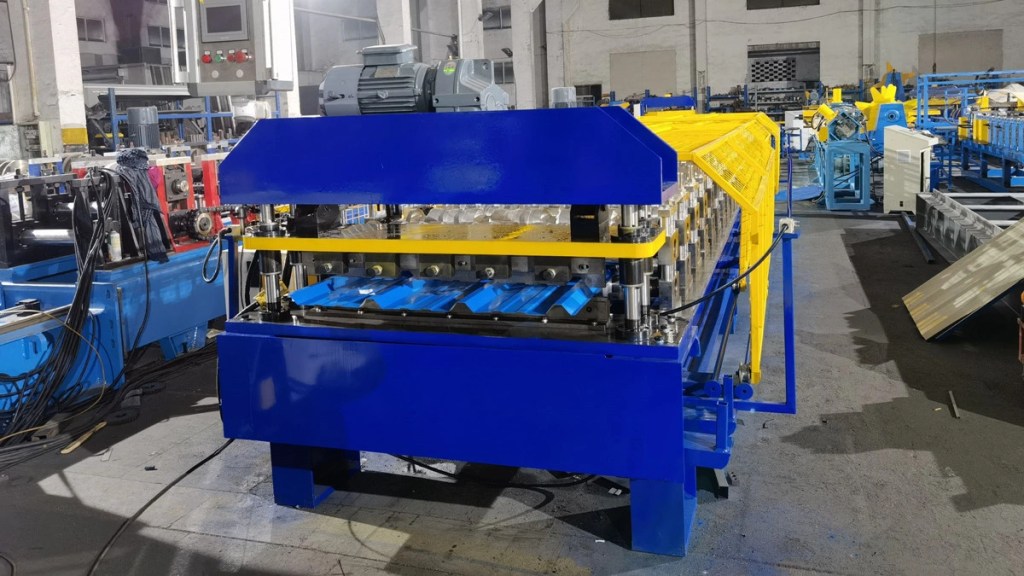

AG Panel Roll Forming Machine
AG Panle Roll Forming Machine Photo. Chromed Pillar as the roll forming stands
AG Panel Roll Forming Machine Video
