The Ridge Cap Roll Forming Machine is an essential piece of equipment for producing high-quality roof ridge caps used in modern steel building systems. At Beli RollForming, we specialize in manufacturing durable and efficient machines that cater to the global construction market. As a leading manufacturer and exporter in China, our designs ensure that your roofing projects are leak-proof, aesthetically pleasing, and structurally sound.

What is a Roof Ridge and Why is it Critical?

The ridge of a sloped roof system is the highest horizontal top area where two roof sheets meet. Because ridge cap shingles cover the peak of the roof, they play a critical role in keeping rain and thawed snow from leaking into the house.

Due to their position, ridge caps are bent over the roof and exposed to the harshest weather conditions, meaning they can deteriorate quicker than the rest of the roof surface. Using a high-quality Ridge Cap Roll Forming Machine ensures that the metal is formed precisely without damaging the protective coating, extending the lifespan of the entire roofing system.

Versatile Designs for Every Demand

There are different Ridge Cap Roll Forming Machine models based on the specific demands of steel roofing systems. Generally, there are three main types of ridge caps used in the industry:

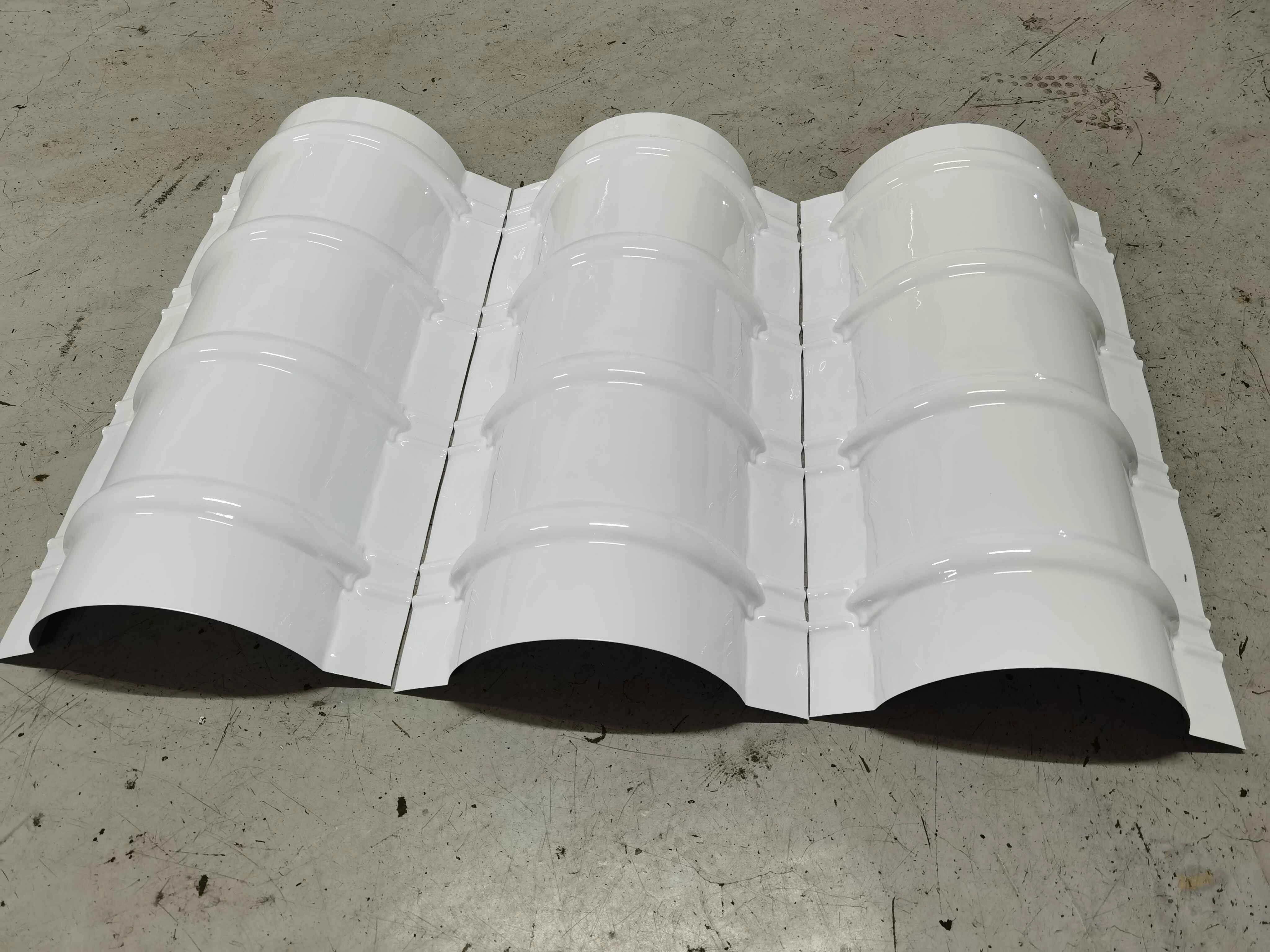

  1. Roof Tile Ridge Caps: Often used for residential villa projects to match stepped tile sheets.

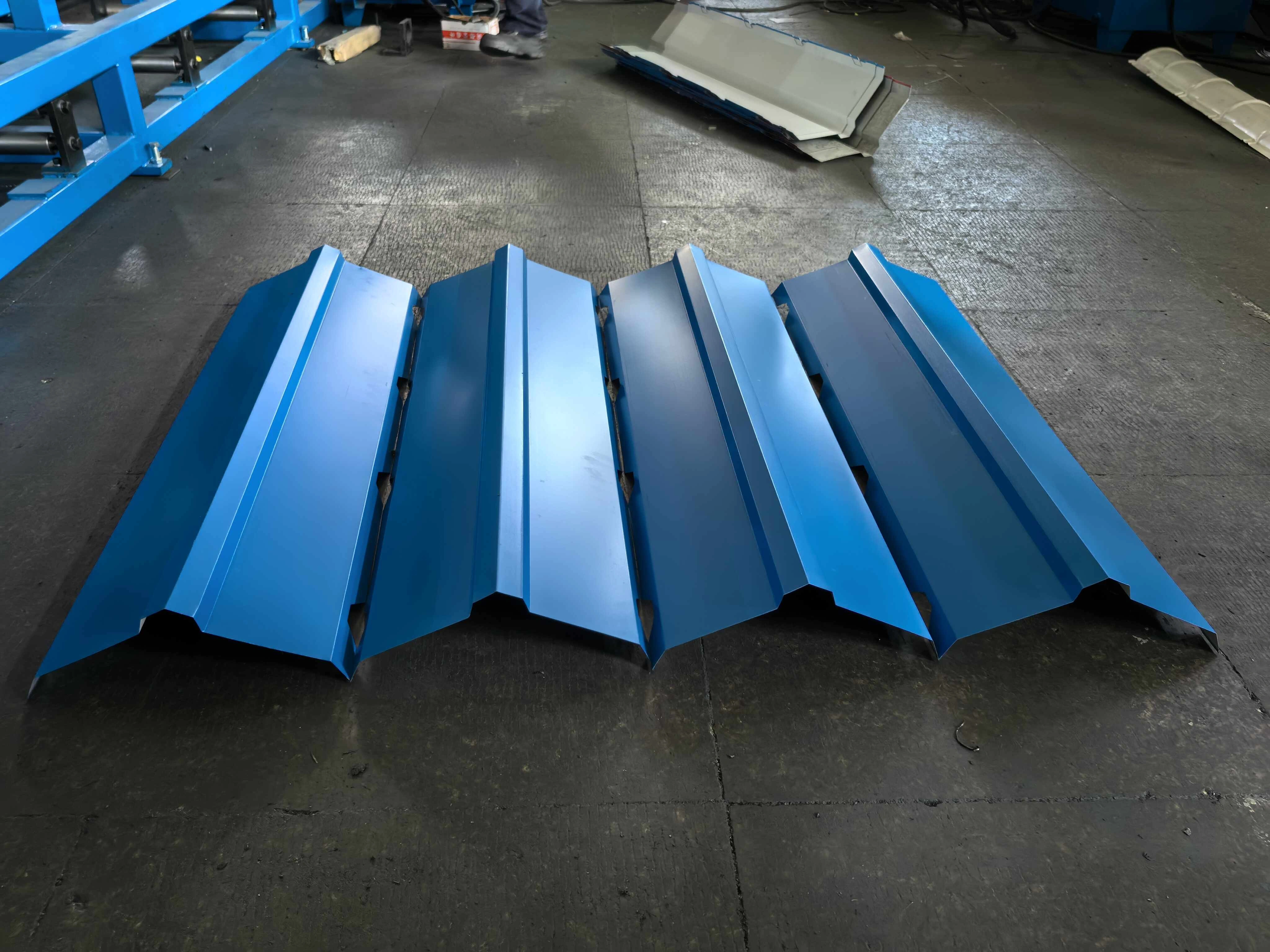

  2. Metal Roof Ridge Caps: Standard industrial caps for trapezoidal or wavy profiles.

  3. V-Shape Caps: Simple and effective caps that can also function as roof valley flashings.

Key Components of the Ridge Cap Roll Forming Machine

To ensure 24/7 reliability, our Ridge Cap Roll Forming Machine integrates premium components:

  • Coil Strips Uncoiler: Available in 3-5 Ton capacities (Manual or Electric).

  • Precision Roll Former: Featuring 14-20 forming stations for gradual and precise shaping.

  • Driven System: High-torque gearboxes or heavy-duty chains.

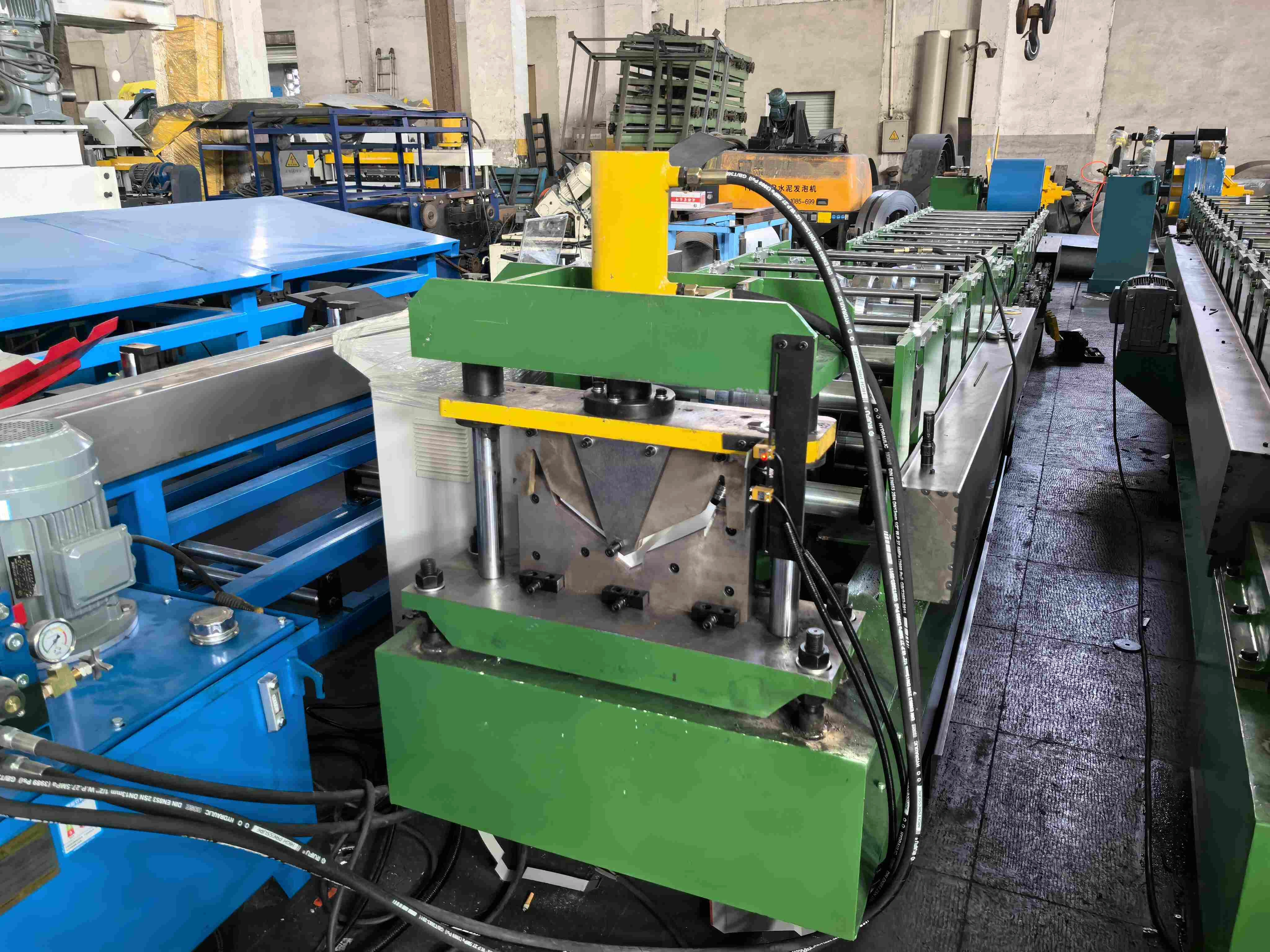

  • Punching & Cutting System: Hydraulic post-cutting ensures a clean, burr-free finish.

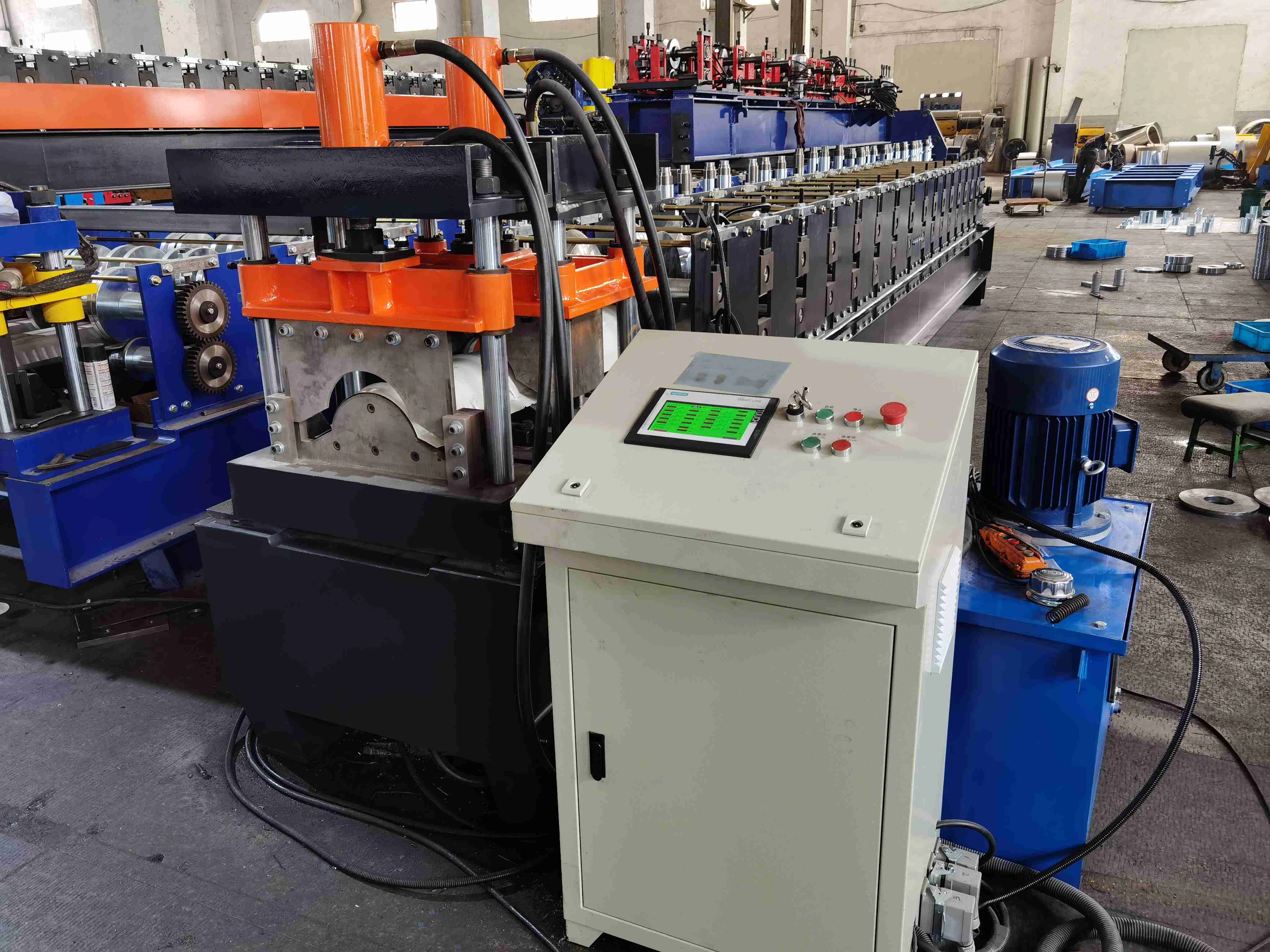

  • PLC Control System: Advanced Panasonic or Siemens interfaces for easy operation.

Technical Specifications

  • Uncoiler Capacity and Types: 3 Ton -5 Ton, Electric or Manual
  • Suitable Coil Strips: 0.25-0.6mm thickness, 300*800 mm width. I.D 508-610mm, O.D: 1000mm
  • Forming Rollers: 14-20, subject to final design
  • Rollers Material: ASTM 1045, Quenched and tempered. Chromed 0.05mm thickness
  • Shaft Material: ASTM 1045, hardness treatment
  • Motor Power: 5.5KW
  • Driven Method: Gear box or Chain& Gear
  • Cutoff Die Material: CR12, heat treatment
  • Controlled System: Panasonic or Siemens PLC, Yaskawa Inverter, Omron Encoder, Omron Limit Switch
  • Voltage: 308-440V, 50-60HZ, 3 Phase

Why Choose Beli RollForming?

As a professional manufacturer, Beli RollForming provides more than just machinery. We provide integrated solutions. Beyond our Ridge Cap Roll Forming Machine, we also offer:

Our commitment to quality ensures that every Ridge Cap Roll Forming Machine we export meets international standards, providing you with a high return on investment.

Contact Beli RollForming today to get a customized quote for your next project!
