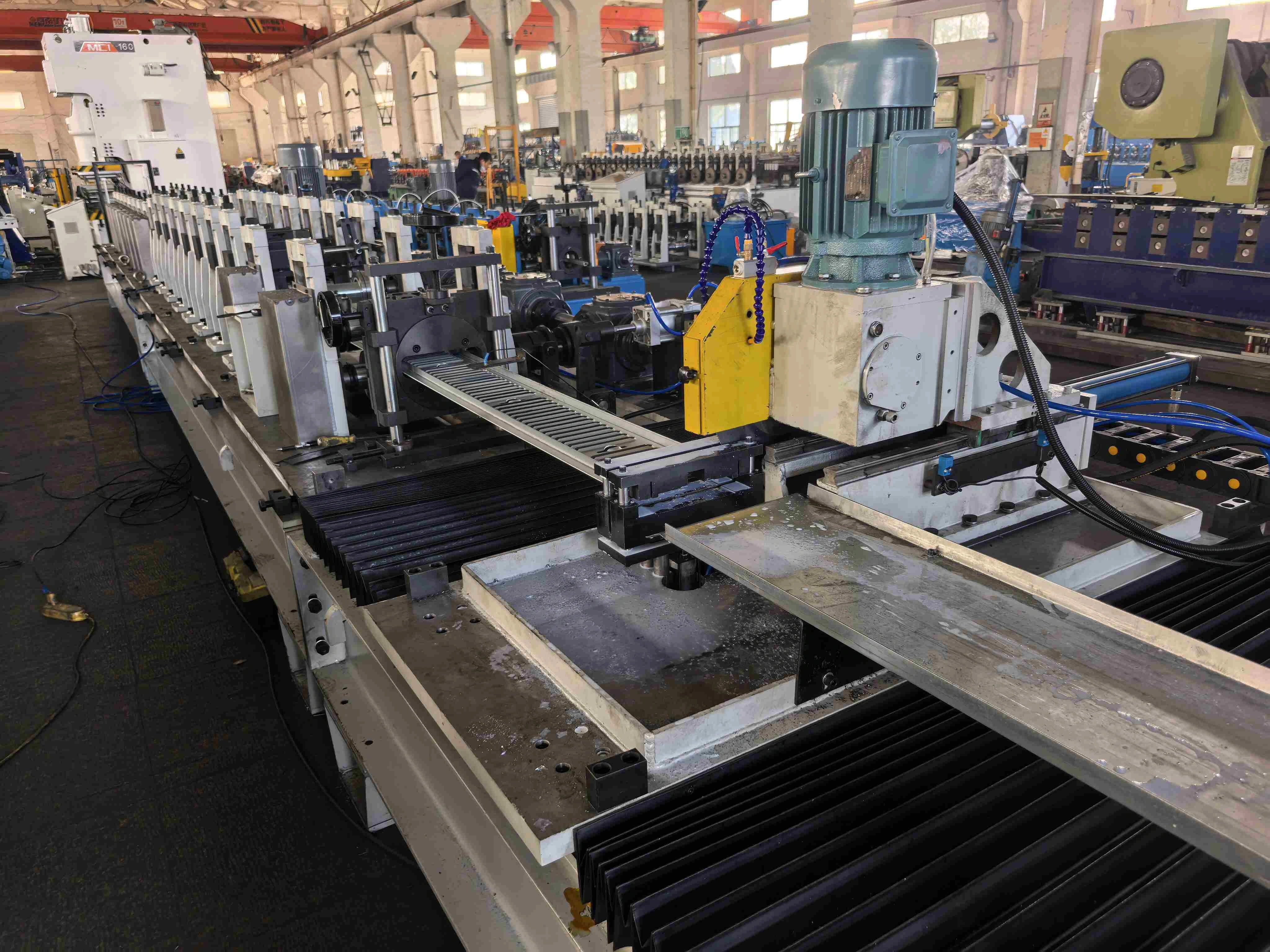

A scaffold workboard roll forming machine is an automated industrial system that transforms galvanized steel coils into high-strength, perforated safety platforms. Modern 2026 lines by Believe Industry Company integrate high-density hydraulic punching with precision roll forming stations. These machines achieve production speeds of 12-18 meters per minute while maintaining strict tolerances. Key technical features include the use of tapered bearings to manage axial loads and GCr15 hardened rollers for long-term profile accuracy. Believe Industry provides global expertise from its Wuxi, China headquarters, backed by 15+ years of specialized engineering.
Construction sites need strong walking surfaces for workers. A scaffold workboard roll forming machine is the equipment that creates these surfaces. It takes a flat strip of metal and bends it into a rigid, load-bearing plank. Believe Industry Company has over 15 years of experience building these machines. We are based in Wuxi, China. Our team of 80+ engineers designs high-quality tools for clients all over the world.
Most project managers start by reading a comprehensive analysis of roll forming machine setups. This helps them see how the steel moves through the line. Each roller bends the metal slowly. Therefore, the steel keeps its strength and does not break during the forming process.
Speed and safety go hand-in-hand in workboard production. To make a safe board, the machine must punch thousands of small holes. These holes provide grip and let water fall through. Modern machines use hydraulic “flying” punching. This means the machine punches the steel while it is still moving.
Better Grip: The dimpled holes stop workers from slipping.
Faster Output: You do not need to stop the machine to punch holes.
High Precision: The computer ensures every hole is in the right spot.
Technical data from the Rollforming Handbook notes that drive-side stands need tapered bearings. These bearings are very strong. They handle the vertical pressure of the steel as it is shaped. Moreover, they keep the machine shafts from shifting. However, if the bearings are weak, the workboard will come out crooked. This is why Believe Industry uses heavy-duty parts to ensure your line runs 24/7 without issues.
Most workboards are made from galvanized steel. This steel has a special zinc layer that prevents rust. Usually, the thickness is between 1.2mm and 2.0mm. Before the steel reaches the former, it often passes through cut to length lines to ensure the width is perfect for the specific scaffold design.
| Feature | Older Machine Models | Believe Industry 2026 Model |
| Max Speed | 6-8 m/min | 12-18 m/min |
| Punching Unit | Stop-and-Go Mechanical | Servo Feeder and Mechinical Punch Press |
| Length Accuracy | ±1.5 mm | ±0.5 mm |
| Setup Time | 4-6 Hours | Under 45 Minutes |
| Bearing System | Standard Ball Bearings | Professional Tapered Bearings |
To run a profitable factory, you must understand the stages of a scaffold workboard roll forming machine:
Decoiler: This holds the big coil of steel and feeds it into the line.
Leveling Device: It flattens the steel so the holes are punched accurately.
Servo Feeder and Punching Press: This creates the non-slip “dimples” and drainage holes.
Roll Forming Unit: This uses 20 to 25 stations to shape the metal into a board.
Hydraulic Cutting: A blade cuts the board to the exact length needed.
If the machine shafts are not aligned, the workboards will be bent or twisted. This is a major safety risk. Therefore, we use needle bearings on the operator side. These bearings allow the shafts to spin with very little friction. However, you must check the shaft nuts regularly. If they get loose, the boards will not fit the scaffolding frames correctly.
A crooked workboard is a waste of money. To prevent this, you can read our guide on how a roll forming machine works. It explains the “flower pattern” design that keeps everything straight. For more technical rules on steel structures, the American Institute of Steel Construction (AISC) offers great resources that our engineers follow.
Buying a cheap machine might seem smart at first. However, a custom 2026 model from Believe Industry offers a better ROI (Return on Investment).
Less Labor: One person can run the entire line via a PLC touch screen.
High Yield: You can make more boards per hour than your competitors.
Better Safety: Our machines follow OSHA guidelines for industrial safety.
Our purlin roll forming machine technology shares many of the same heavy-duty components, ensuring your factory stays productive for decades.
In 2025, a large construction supplier in Saudi Arabia needed to produce 5,000 workboards per week. Their old machines were failing. Believe Industry built them a custom scaffold workboard roll forming machine with a reinforced punching system. Consequently, they increased their production by 40%. They now produce enough boards to supply three major city projects at once. This shows that the right roll forming machine is a game-changer for growth.
Maintenance is the secret to a long-lasting machine. You should clean the rollers every week to remove metal dust. Therefore, use a soft brush and a light protective oil. Also, check the tapered bearings for any play or movement. Keeping the hydraulic oil cool is also important for the punching unit. These simple steps ensure your scaffold workboard roll forming machine stays in top shape.
Use this tool to see your estimated output per 8-hour shift.
A high-quality scaffold workboard roll forming machine is essential for any construction supplier. It ensures your products are safe, strong, and made quickly. Believe Industry Company provides the best 2026 technology to help you grow your business. We focus on durability, speed, and precision engineering.
Ready to start your project? Contact the Believe Industry engineering team today for a custom machine layout and price quote! WhatsApp: +8618616927760 Email: Contact us for professional support in Wuxi, China.
Our high-speed lines reach up to 18 meters per minute, depending on the punching complexity.
Yes, we offer adjustable machines that can handle widths like 210mm, 240mm, and 250mm.
Most industry standards require a thickness between 1.2mm and 1.8mm for optimal strength and weight.
Yes, we can include an automatic stacking system to help you move finished boards to pallets quickly.
Because we use GCr15 steel, our rollers typically last for over 5-10 years with proper maintenance.
Yes, it uses a simple HMI touch screen in English. We also provide full training.
Yes, we can design the punching dies to match any local safety standard or pattern you need.
We use a 7-roller leveling system and precise shaft alignment to ensure every board is perfectly flat.
It typically takes 60 to 90 days to design, build, and test your custom machine.
Yes, Believe Industry is a global exporter. We ship to Europe, the Middle East, America, and beyond.
Version 1.0 | April 2026 | Initial publication for the 2026 equipment series.
Safety Regulation Change: Review if international scaffolding safety standards change in 2027.
Product Update: Review if Believe Industry launches a new “Quiet-Punch” hydraulic module.
