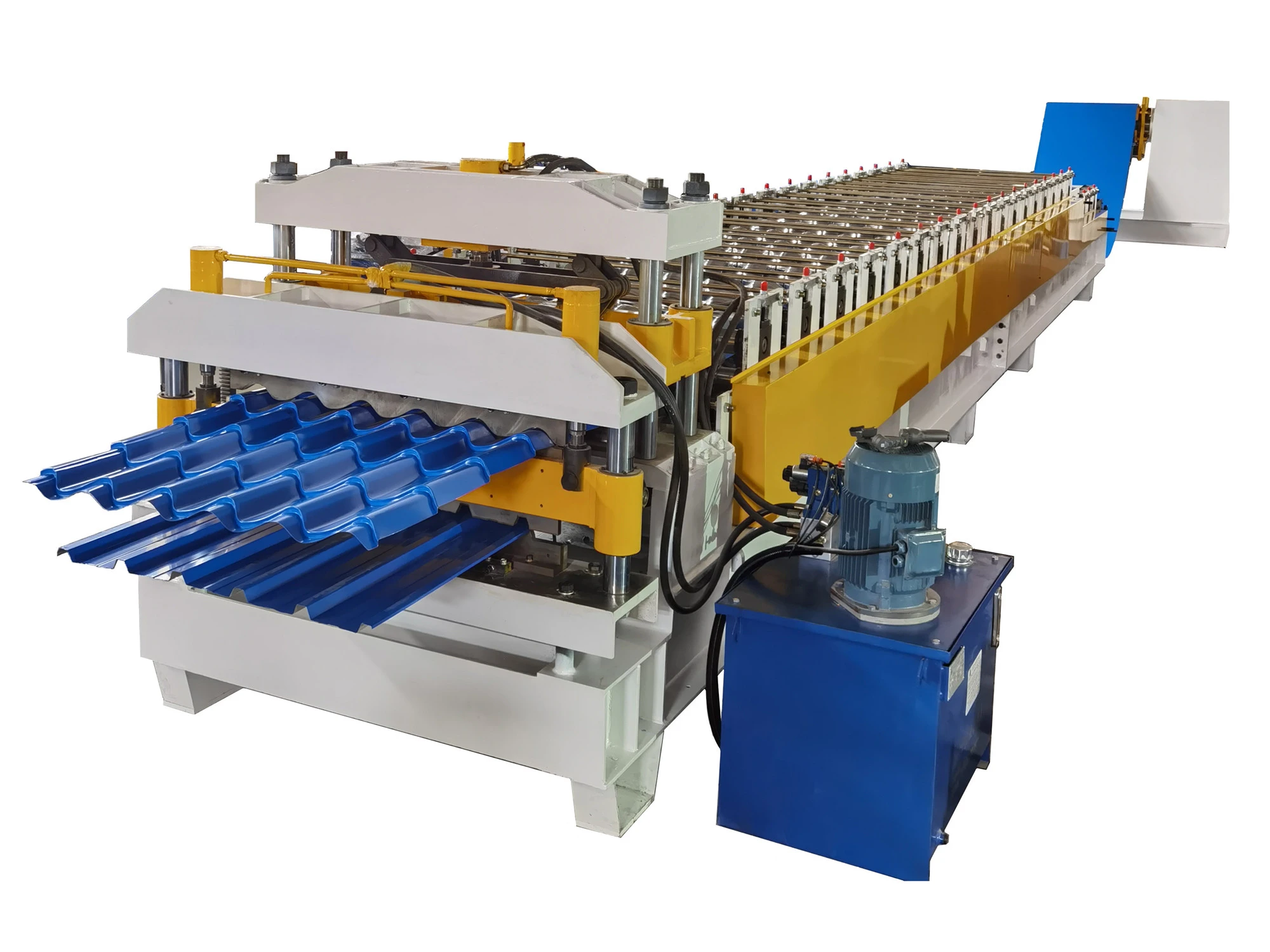

What Is a Double Layer Roofing Sheet Roll Forming Machine?
The Double Layer Roofing Sheet Roll Forming Machine, as the name implies, incorporates two independent roll forming layers, each capable of producing a distinct roofing profile. These layers share key components, including the decoiler, motor, transmission system, control system, and cutting device, which contributes to reduced equipment costs and more efficient use of factory space. However, due to the shared core systems, the two layers cannot operate simultaneously. Therefore, in scenarios requiring high-volume production of both roofing profiles, a double-layer machine may be less suitable compared to standalone single-layer machines.
Machine Layout
Working process: decoiling — feeding and guiding — roll forming — cutting — collecting
Most Important Components and Technical Parameters
| Main Machine Components | Technical Parameters | |
| 1. | Hydraulic Decoiler | > Loading Capacity: 5000kgs
> Function: hydraulic expanding to support the coil; electrical uncoiling |
| 2. | Roll Forming Machine | > Control System: PLC control system
> Drive Method: electric chain drive > Machine Speed: 0-15m/min > Forming Steps: 20 steps for up layer; 20 steps for bottom layer > Roll Forming Power: 7.5KW > Material of Rollers: high quality No. 45 steel, chromed with 0.05mm thickness > Material of Shafts: 40Cr, 75mm in diameter |
| 3. | Cutting Unit | > Cutting Type: hydraulic stop cutting
> Cutting Power: 5.5KW > Material of Cutting Blade: Cr12Mov, HRC58-62 |
| 4. | Collecting Table | > Design: unpowered type, angle steel welded structure
> Qty: 3pcs |
Why Choose Our Double Layer Roofing Sheet Roll Forming Machine?
- ✅ High Efficiency: Produces two profiles in one pass, saving time and labor.
- ✅ Precision Engineering: Advanced roller design ensures consistency and accuracy.
- ✅ User-Friendly Control: PLC system allows easy operation and quick setup.
- ✅ Durable Build: Made with high-grade steel for long-term performance.
- ✅ Export Excellence: Trusted by clients in over 50 countries.
| Weight | 8000-10000 kg |
|---|---|
| Dimensions | 12000 × 1800 × 1500 mm |
