Pallet Racking P Beam Roll Forming Machine

Home » Roll Forming Machine » Pallet Racking Roll Forming Machine » Pallet Racking P Beam Roll Forming Machine

Pallet Racking P Beam Roll Forming Machine is for producing various dimensions of P beams for Heavy Storaging System. Believe Industry Company Machine is able to produce 2.5″ to 6″ P beams with automatically adjustment.

P Beam Roll Forming Machine Specifications

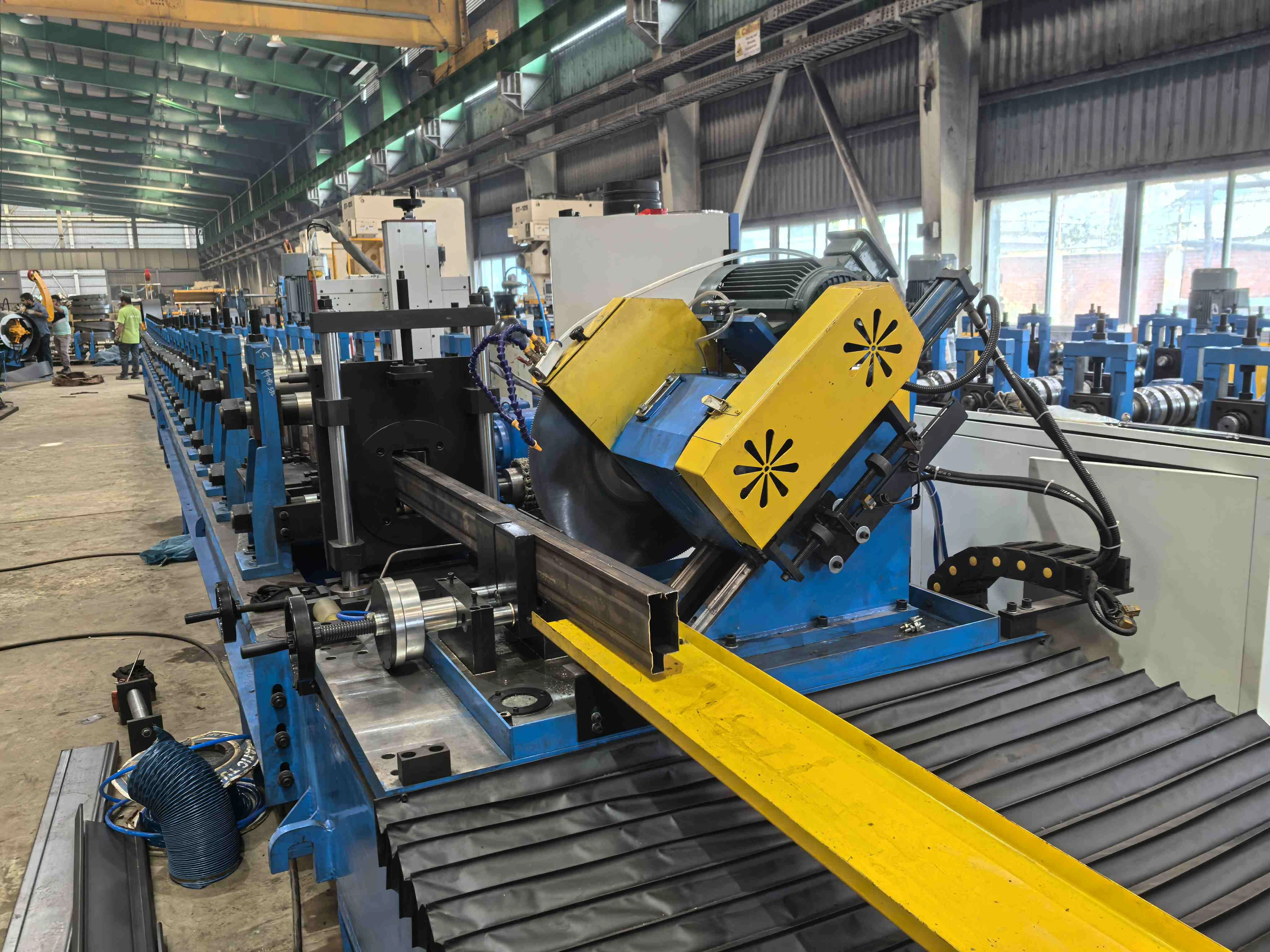

Machine Photo

pallet racking p beam roll forming machine
pallet racking p beam roll forming machine

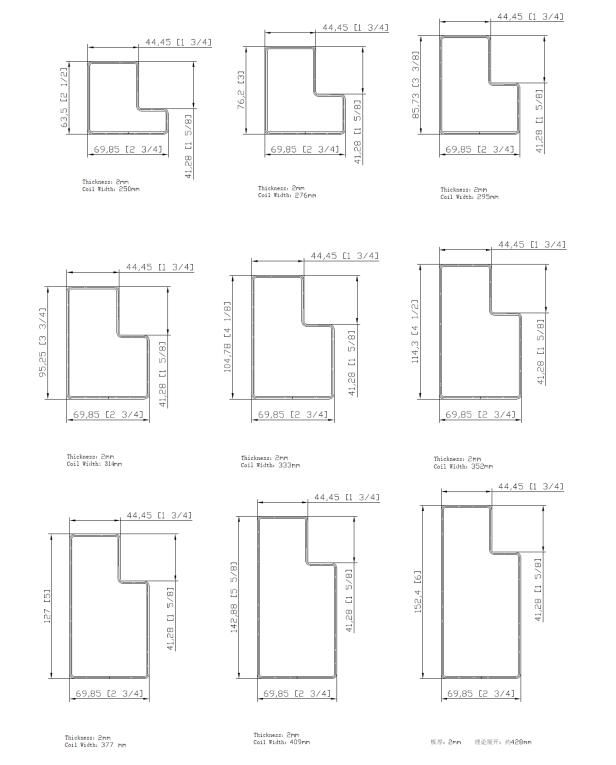

P Beam Drawings and Dimensions

P beam drawings and dimensions
Pallet Racking P Beam Roll Forming Machine 4

Machine Layout

pallet racking p beam roll forming machine
Uncoiling-Feeding and Guiding– Leveling– Roll Forming– Welding–Straightening– Cutting– Collecting

Machine Components

  1. 5 Ton Hydraulic Uncoiler
  2. Roll Forming
    1. Feeder and Guider
    2. Roll Former
    3. Servo Tracking Welder
    4. Saw Cutting Device
  3. Controller
  4. Hydraulic Stations
  5. Collection Table

Brief Technical Pamaters of P Beam Machine

  • 5 Ton Hydraulic Uncoiler
    1. Hydralic expansion, electric uncoiling
    2. Mounted with press arm to avoid the coil over uncoiling
    3. Loading Coil Width: Max 600 mm
    4. Loading Coil Weight: Max 5000 kgs
    5. Uncoiling Power: 4 KW
    6. Hydraulic Power: 1.5 KW
  • Roll Forming Machine
    1. Iron cast stands, gear box transmission
    2. Automatically adjustment
    3. NSk bearing
    4. 2 set of welder and tracking design to increase the line speed
    5. 24 formings stages with side rolls
    6. 30 KW motor power
    7. 2 sets of servo motor for tracking welded and cutting
    8. Line speed: 8-10m/min
    9. Mounted with straightening device to ensure the product quality.
  • Controller
    1. Users input the length, quantity and holes location through touch screen, the touch screen will show the working status of the machine.
    2. And the machine will automatically start to work and stop after the completion of the program
    3. All connection are adopting avition plugs
    4. Siemens PLC and Touch Screen
    5. Koyo encoder
    6. Yaskawa Inverter
  • Hydraulic Station
    1. Supply power for uncoiler and saw cutting movement.
    2. Power: 1.5 Kw for uncoiler and 2.2 KW for Saw cutting
    3. Pressure: 10 Mpa
    4. Hydraulic Oil: 46 #

Believe Industry Company have a full range of roll forming machines for Pallet Racking System. Such as Upright Rack Machine, Box Beam Machine, Shelving Panel Machine, etc. Email us or Whatsapp Us now for more information.
