Roll Forming Machine

Metal Sheet Roll Forming Machines, also named Steel Sheet Roll Forming Machines are widely used in Steel Structure Systems Manufacturers or Builders.

Believe Industry Company have full range of Metal Sheet Roll Forming Machine to produce Roof Panels, Wall Cladding Sheets, Step Tiles with different types. Such as: Standing seamming Panel. IBR sheeting, Corrugated Sheets. Trapezoidal Roof Panel.  Roof Ridge Capping, Russian Type R17 R45. Metal Glazed Tile 1000, Clip Lock 400 etc.

roof sheet roll forming machine
roof tile roll forming machine
dual layer machine with quality design cutting
ibr roofing sheet making machine line
corrugated sheet roll forming machine
roof ridge cap roll forming machine

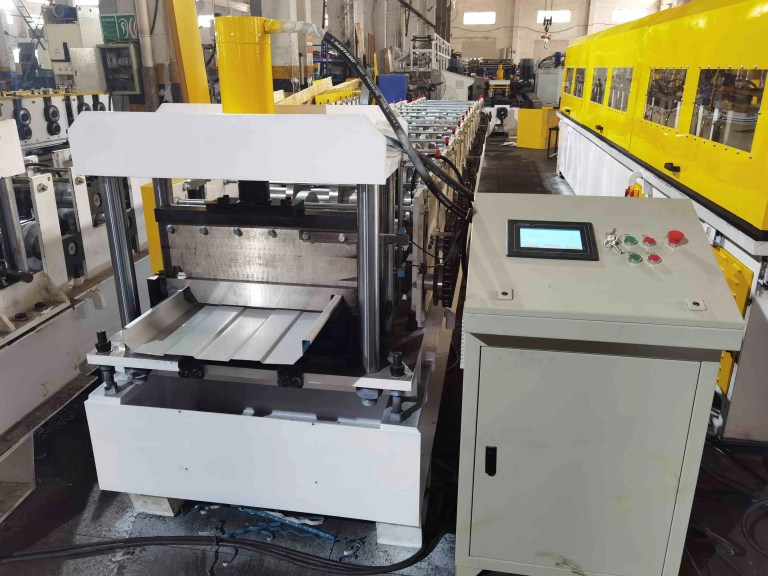

bemo sheet roll forming machine
metal wall panel roll forming machine
widespan roof sheeting roll forming machine
standing seam roll forming machine
box profile roofing sheets roll forming machine
glazed tile roll forming machine

C  Z Purlin Roll Forming Machine is for producing C and Z Purlins with less change over time.  BELI® new technology design, exchange time is only 2 minutes. Our latest design c and z purlin machine price is only around 35000$ EXW factory. Contact us for more inforamtion.

Believe Industry Company have below machines for different requirements of purlins

All abover machines have various design for specific demands.

Read More »C Z PURLIN ROLL FORMING MACHINE

Roofing Sheet Roll Forming Machine is designed to produce various kinds of roofing sheets, wall cladding as per design drawing with desired length. The thickness is normal from 0.2 to 0.8mm and the strength is from 235 Mpa to 550 Mpa.

Introduction of Roofing Sheet Roll Forming Machine

Where to use the roofing panel roll forming machine?

People use Roofing Sheet Machine, Such as  Roofing Sheet Roll Forming Machine, Trapezoidal Sheet Roll Forming Machine to produce metal sheet for industrial, commercial and residential roof cladding. Although there are numerous profiles of roofing sheet, the process of forming is the same. Coils (GI coils, PPGI coils, GL coils, PPGL coils, etc) go through decoiling, roll forming, cutting and then come out the desired roof products.

Machine Components

  1. 5Ton Decoiler: decoil the coils into flat sheet
  2. Feeding And Guiding: guide the material in order to avoid its deviation
  3. Roll Forming: form the sheet into desire profile
  4. Punching: for tile profile sheet to form the shape like tiles
  5. Cutting: cut the formed profile into desired length
  6. Product Table: support the product from falling down
  7. Electric Control System: supply electric power
  8. Hydraulic System: supply hydraulic power

 Optional Accessories of Roofing Sheet Roll Forming Machine

Item Common We Use Optional
1. Decoiler 5Ton Manual Decoiler 5Ton Hydraulic Decoiler
2. Side Structure Wall Panel Type Guide Pillar Type
3. Roller Material 45# Steel GCr15 Bearing Steel
4. Product Table Unpowered Table Auto Stacker
5. Bearing HRB SKF, FAG,NSK
6. Electric Parts Domestic Brand Siemens, Panasonic, Mitsubishi

Comparison Between Roofing Sheet Machine Side Structure Type

roofing sheet roll forming machine

Different manufacturers may have different designs of the machine roller stand structure. For metal roofing sheet roll forming machine, there are always two side structure designs: wall panel type and guide pillar type. The function of the wall panel and guide pillar is the same. They are used to fix the sliding blocks, which are installed in two ends of the shaft. Some people prefer wall panel type and they think wall panel structure makes the machine strong. While some people prefer guide pillar structure and they think this type makes the machine more smart. No matter what structure the machine adopt, Both Do Perfect Job. In China, Many factories adopt steel plate as the structure to save the total cost of the machine. and also we think that the steel plate structure is stronger than pillar design.

Technical Parameters of Metal Roofing Sheet Roll Forming Machine

  1. Uncoiler Capacity: 5 Ton
  2. Uncoiling Width: 600-1250mm
  3. Material Thickness: 0.2-0.8mm
  4. Main Motor Power: 7.5KW
  5. Forming Stands: 16-26
  6. Rollers Material: ASTM 1045, Chromed 0.05mm thickness
  7. Shaft Material: ASTM 1045, 76mm OD
  8. Hydraulic Power: 4KW
  9. PLC Brand: Panasonic

BELI ®  ‘s roll forming machine are customized. we adopt Copra Software to design the roll forming machine as per customized profiles. You also can view the our roofing sheet machine brochure for more information.

Roll Forming Machine, to forming steel coils/strips along straight, longitudinal, parallel bend lines with multiple pairs of contoured rollers without changing the thickness of the material at room temperature. BELI®  have roll forming machines for Roofing Sheets, Wall Cladding, Steel Floor Decks, Studs and Tracks, purlins And also for Warehouse Storage System, Roller Shutter Door System, Garage Door System,  etc.

PURLIN ROLL FORMING MACHINE

Purlin Roll Forming Machine is for produce C/U/Z/Omega  Purlins, which are widely used in steel building systems. In steel architecture, steel structural engineering, or steel building, a Purlin (or historically Purline, Purloyne, Peling, Purling) is a horizontal, longitudinal, structural member in a roof frame or wall frame. In steel construction, the term Purlin typically refersRead More »PURLIN ROLL FORMING MACHINE

STEEL DOOR ROLL FORMING MACHINE

Steel Door Roll Forming Machine series is for produce steel door panels, door frames  roller shutter slats,  roller shutter tracks Octagon pipes as per design. Nowadays, Steel Doors are widely used in  architecture.  BELI have the full range of roll forming machines for Security Door System, Garage Door System, Roller Shutter System.  We also haveRead More »STEEL DOOR ROLL FORMING MACHINE

PALLET RACKING ROLL FORMING MACHINE

Pallet Racking Roll Forming Machine (s) is developed to produce Upright Racks, Box Beams, Shelf Panels. Which are components of Pallet Racking Systems

DOWNSPOUT&GUTTER ROLL FORMING MACHINE

Downspout&Gutter Roll Forming Machines is deloped to produces downpipes, gutters, fascia boards and  flashings for Downspout&Gutter Systems. Believe Industry(BELI®) have full range of Roll Forming Machines for Gutters, Downpipes, Flashings, and related machines such as Elbow Machine, Joint Machine, etc     PORTABLE GUTTER MACHINE Believe Industry Company have a full range of portable gutterRead More »DOWNSPOUT&GUTTER ROLL FORMING MACHINE

CUSTOMIZED PROFILE ROLL FORMING MACHINE

Believe Industry Company(BELI®) is also engaged to design and manufactured Customized Profile Roll Forming Machine as buyers' requirements. We offer One-Stop service for customer. The profile should be: Thickness: 0.15-7.0 mm Width: 10-1600 mm Material: GI, PPGI, Aluminum, Copper, Stainless Steel, etc Yield Strength: 235-600 Mpa The steel profile are widely used, such as: Guardrail,Read More »CUSTOMIZED PROFILE ROLL FORMING MACHINE
