Roofing Sheet Roll Forming Machine Price is based on the design of the Roofing Sheet you want to produce. The Machine Components of the line you choose. and also the speed of the line you prefer.

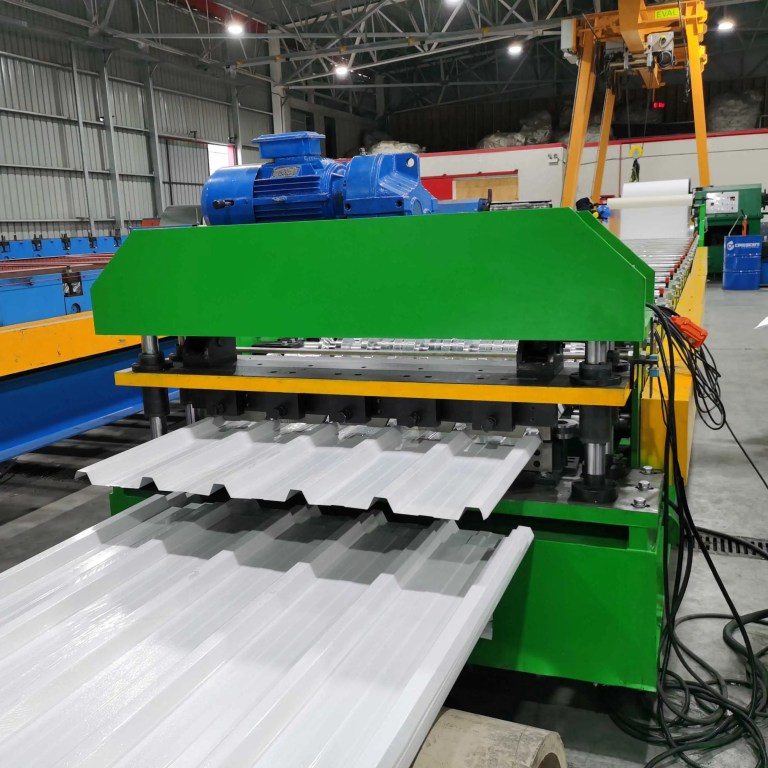

Roofing Sheet Roll Forming Machine is designed to produce various kinds of roofing sheets, wall cladding as per design drawing with desired length. The thickness is normal from 0.2 to 0.8mm and the strength is from 235 Mpa to 550 Mpa.
Introduction of Roofing Sheet Roll Forming Machine
Where to use the roofing panel roll forming machine?
People use Roofing Sheet Machine, Such as Roofing Sheet Roll Forming Machine, Trapezoidal Sheet Roll Forming Machine to produce metal sheet for industrial, commercial and residential roof cladding. Although there are numerous profiles of roofing sheet, the process of forming is the same. Coils (GI coils, PPGI coils, GL coils, PPGL coils, etc) go through decoiling, roll forming, cutting and then come out the desired roof products.
Machine Components
5Ton Decoiler: decoil the coils into flat sheet
Feeding And Guiding: guide the material in order to avoid its deviation
Roll Forming: form the sheet into desire profile
Punching: for tile profile sheet to form the shape like tiles
Cutting: cut the formed profile into desired length
Product Table: support the product from falling down
Electric Control System: supply electric power
Hydraulic System: supply hydraulic power
Optional Accessories of Roofing Sheet Roll Forming Machine
Item
Common We Use
Optional
1. Decoiler
5Ton Manual Decoiler
5Ton Hydraulic Decoiler
2. Side Structure
Wall Panel Type
Guide Pillar Type
3. Roller Material
45# Steel
GCr15 Bearing Steel
4. Product Table
Unpowered Table
Auto Stacker
5. Bearing
HRB
SKF, FAG,NSK
6. Electric Parts
Domestic Brand
Siemens, Panasonic, Mitsubishi
Comparison Between Roofing Sheet Machine Side Structure Type
Different manufacturers may have different designs of the machine roller stand structure. For metal roofing sheet roll forming machine, there are always two side structure designs: wall panel type and guide pillar type. The function of the wall panel and guide pillar is the same. They are used to fix the sliding blocks, which are installed in two ends of the shaft. Some people prefer wall panel type and they think wall panel structure makes the machine strong. While some people prefer guide pillar structure and they think this type makes the machine more smart. No matter what structure the machine adopt, Both Do Perfect Job. In China, Many factories adopt steel plate as the structure to save the total cost of the machine. and also we think that the steel plate structure is stronger than pillar design.
Technical Parameters of Metal Roofing Sheet Roll Forming Machine
